Detail System Minimum Atmega 16 / 32 / 8535

System Minimum Atmega 16 / 32 / 8535

Description:
1.32 IO pins all the leads.
2. Classic ATmega16 minimum system, eliminating the trouble of welding
3. Crystal: The welding socket hole, the convenience of buyers to replace the crystal, the crystal default hair 8M
4. Support chip: ATmega16 / ATmega32 and pin-compatible with the above-described chip chip
5. Power supply: power supply adapter or external expansion connector pin power supply (not support ISP download interface power supply)
6. DC-005 Power Block ( supporting the transposon is 5.5 * 2.1 )
7. 4-way foreign expansion VCC, GND, as shown in FIG pin
8. Reset: power-on reset and reset button
9. Power indicator (D1) and the program running indicator (D2)
10. The standard ISP download interface, by using our shop 51 / avr downloading can easily download the minimum system implementation (the board needs a separate power supply, do not support ISP download interface power supply)

Gambar produk

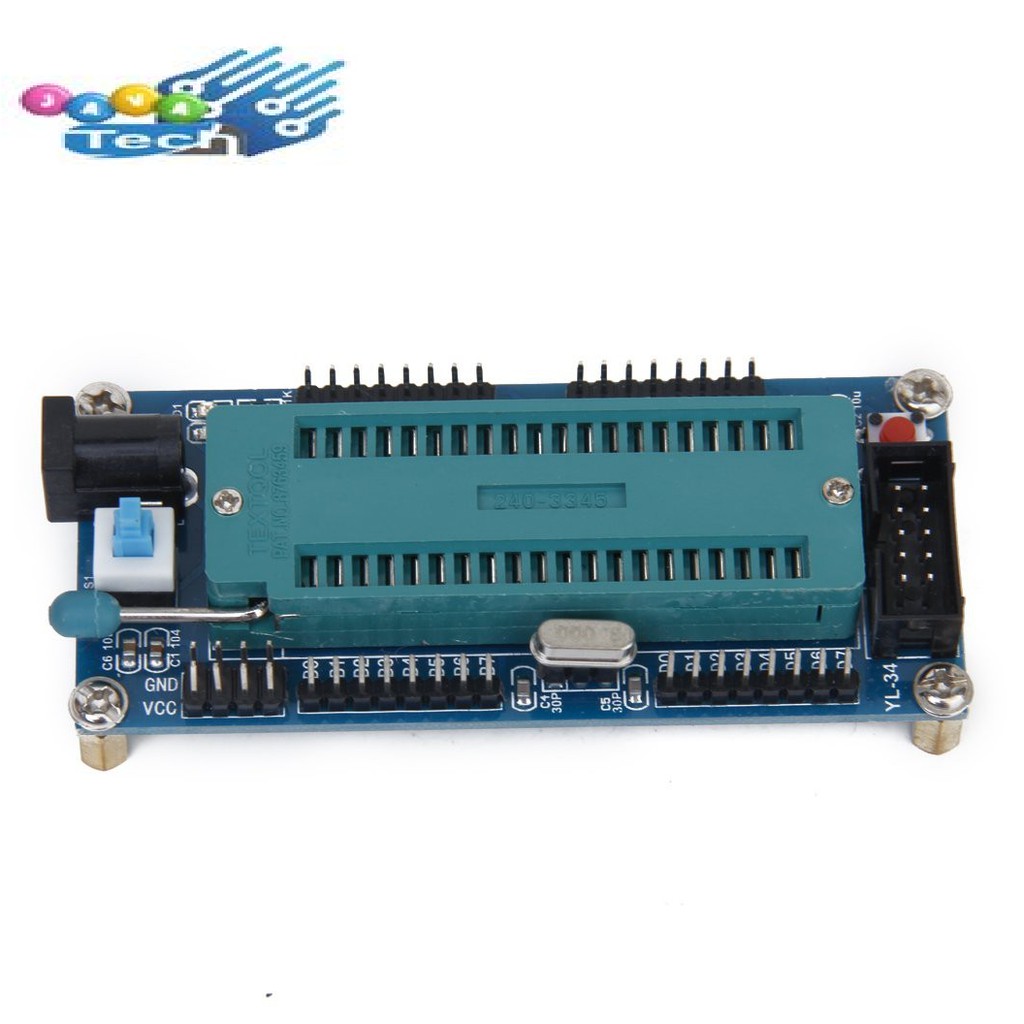

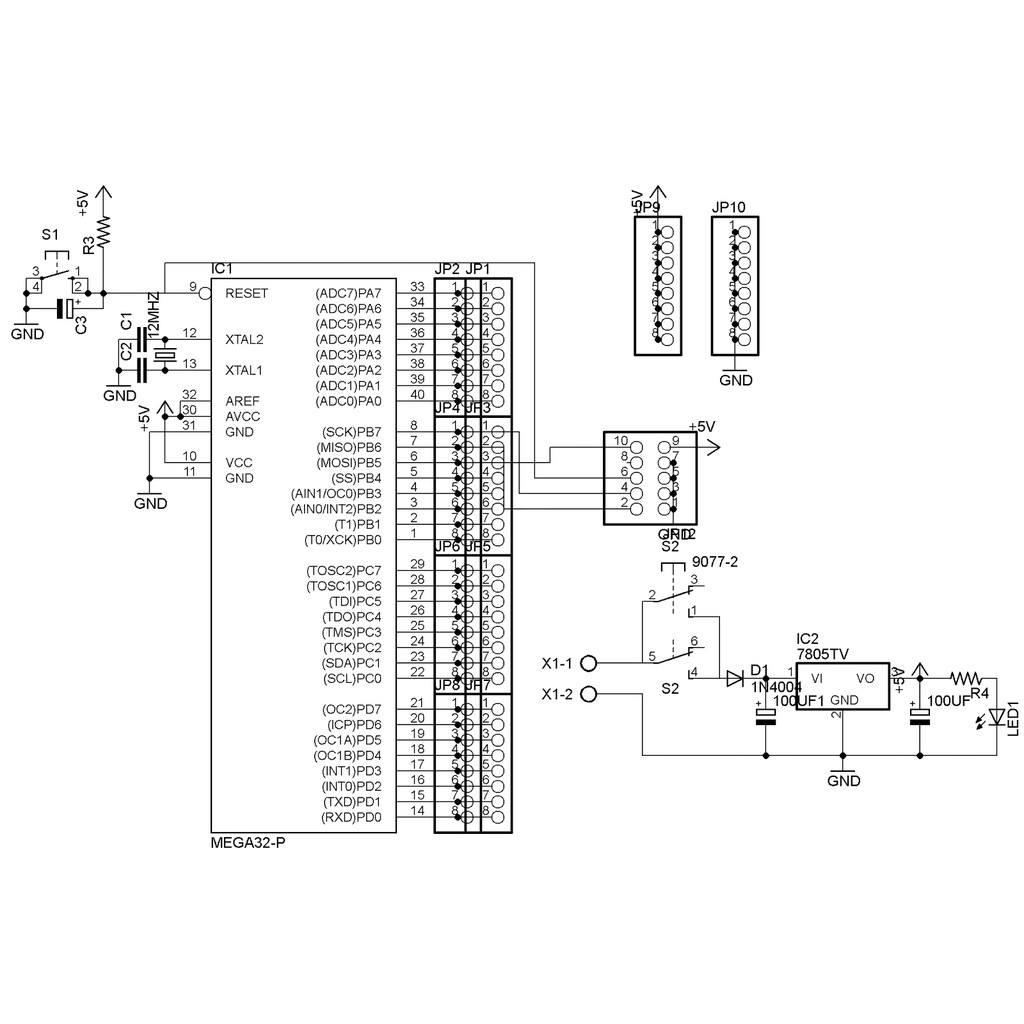

System Minimum Atmega 16 / 32 / 8535
System Minimum Atmega 16 / 32 / 8535
System Minimum Atmega 16 / 32 / 8535
System Minimum Atmega 16 / 32 / 8535
