SYNOLOGY DS923+ 4 Bay NAS Diskstation

Detail SYNOLOGY DS923+ 4 Bay NAS Diskstation

SPECIFICATION :
CPU
CPU Model AMD Ryzen R1600
CPU Quantity 1
CPU Architecture 64-bit
CPU Frequency 2-core 2.6 (base) / 3.1 (turbo) GHz
Hardware Encryption Engine (AES-NI)
Memory
System Memory 4 GB DDR4 ECC
Memory Module Pre-installed 4 GB (4 GB x 1)
Total Memory Slots 2
Maximum Memory Capacity 32 GB (16 GB x 2)
Storage
Drive Bays 4
Maximum Drive Bays with Expansion Unit 9 (DX517 x 1)
M.2 Drive Slots 2 (NVMe)
Compatible Drive Type* (See all supported drives)


3.5" SATA HDD
2.5" SATA SSD
M.2 2280 NVMe SSD

Hot Swappable Drive*
External Ports
RJ-45 1GbE LAN Port* 2 (with Link Aggregation / Failover support)
USB 3.2 Gen 1 Port* 2
eSATA Port 1
PCIe
PCIe Expansion 1 x Gen3 x2 network upgrade slot
File System
Internal Drives

Btrfs
EXT4

External Drives

Btrfs
EXT4
EXT3
FAT
NTFS
HFS+
exFAT

Appearance
Size (Height x Width x Depth) 166 mm x 199 mm x 223 mm
Weight 2.24 kg
Others
System Fan 92 mm x 92 mm x 2 pcs
Fan Speed Mode

Full-Speed Mode
Cool Mode
Quiet Mode

Brightness Adjustable Front LED Indicators
Power Recovery
Noise Level* 22.9 dB(A)
Scheduled Power On / Off
Wake on LAN / WAN
Power Supply Unit / Adapter 100 W
AC Input Power Voltage 100V to 240V AC
Power Frequency 50/60 Hz, Single Phase
Power Consumption 35.51 W (Access)
11.52 W (HDD Hibernation)
British Thermal Unit 121.09 BTU/hr (Access)
39.28 BTU/hr (HDD Hibernation)
Temperature
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -20°C to 60°C (-5°F to 140°F)
Relative Humidity 5% to 95% RH
Certification


FCC
CE
BSMI
VCCI
RCM
UKCA
EAC
CCC
KC

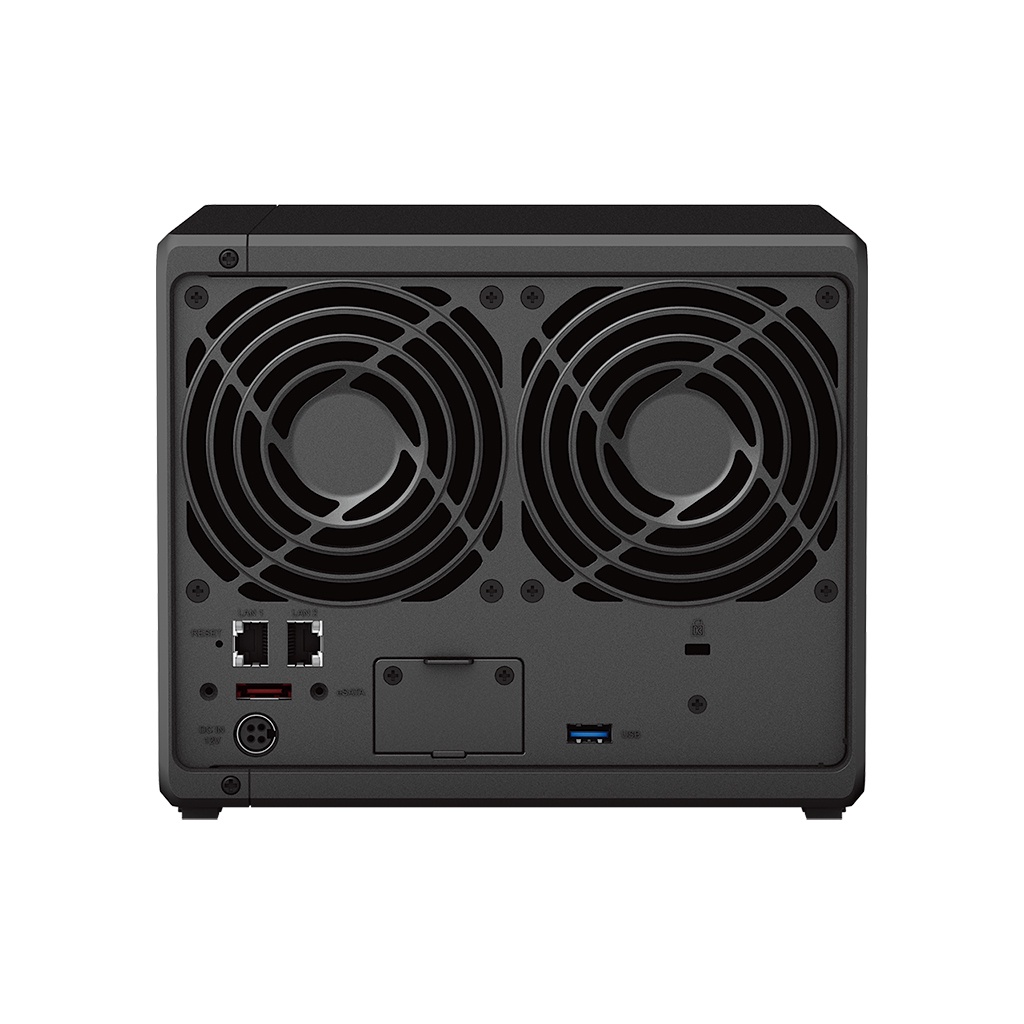

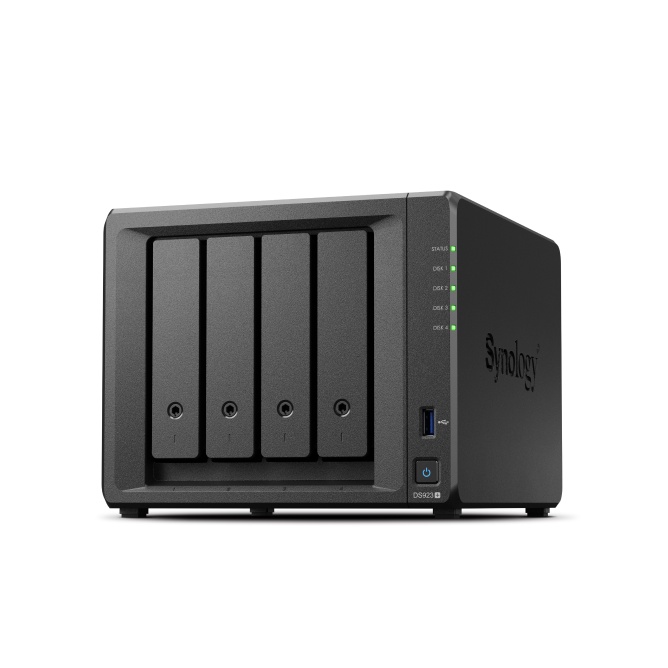

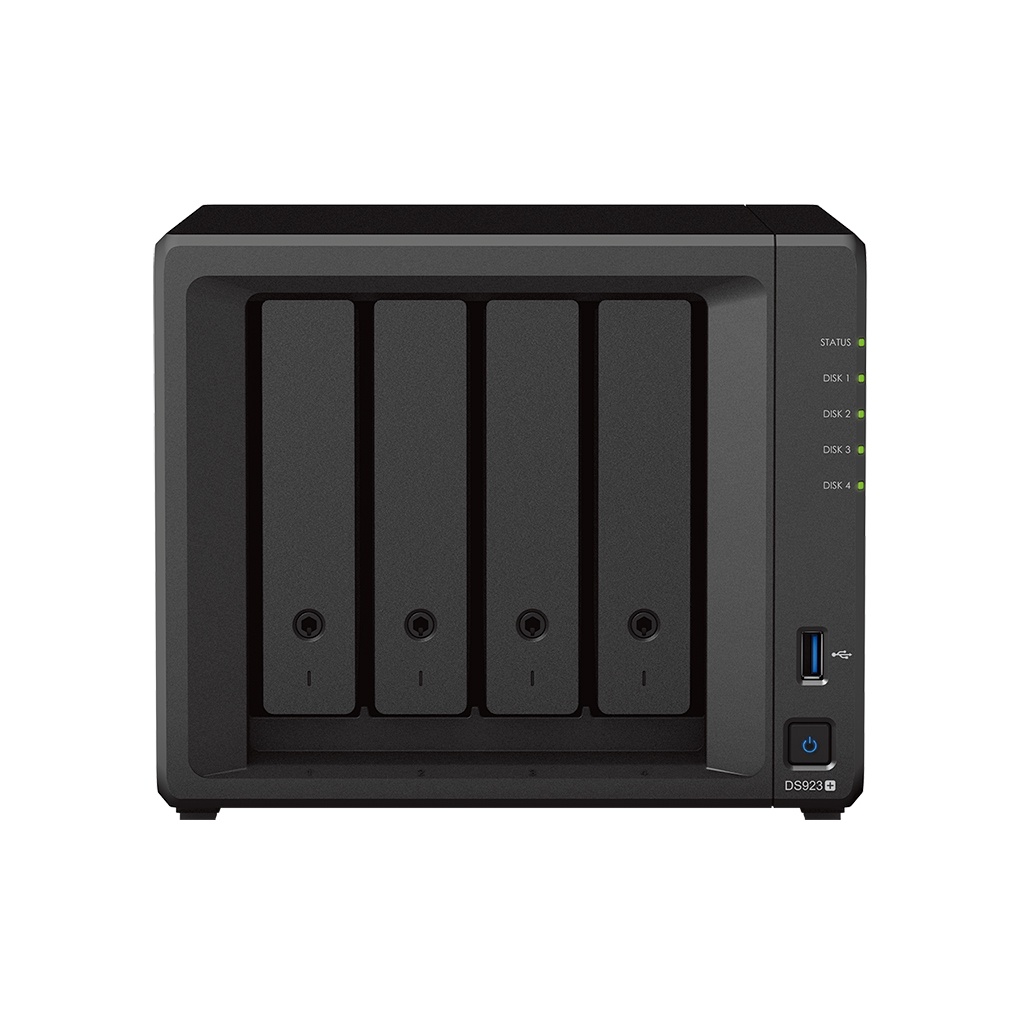

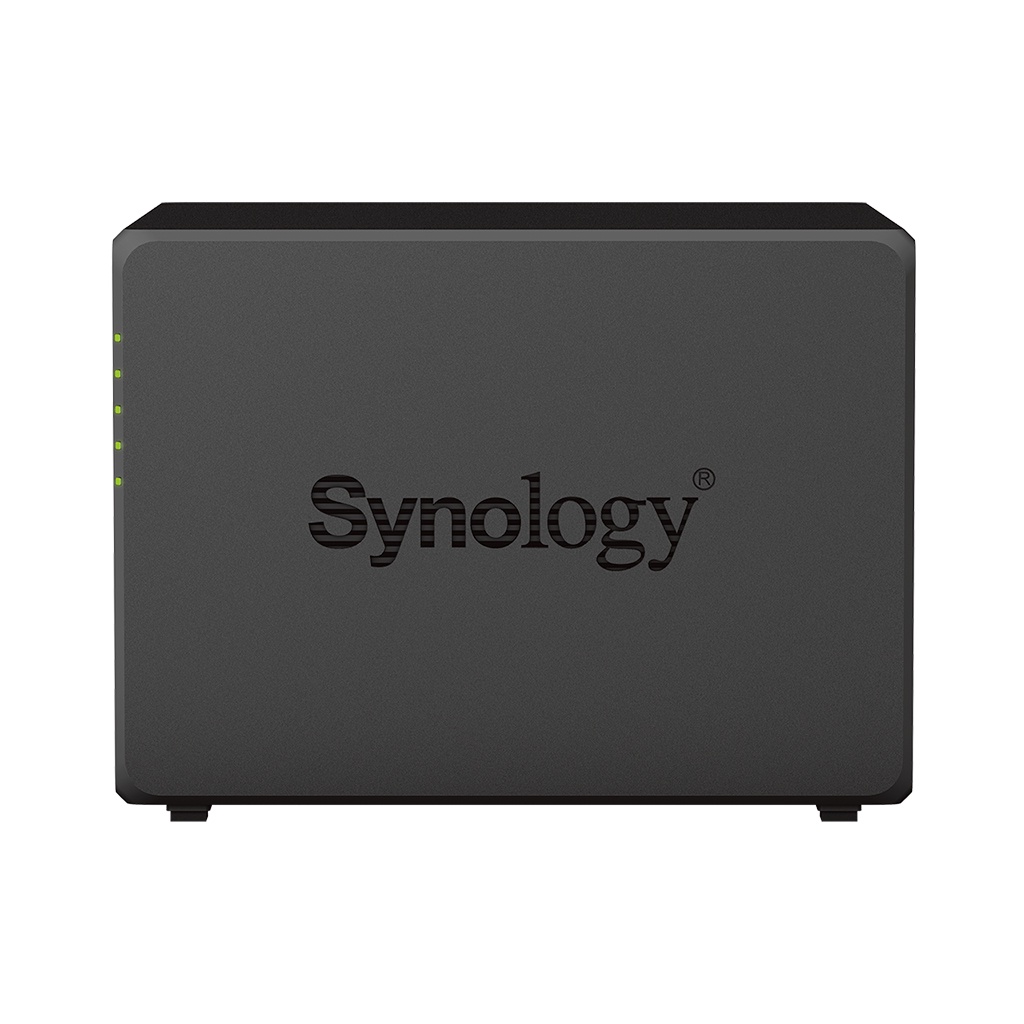

Gambar produk
