Detail SWR & POWER METER DIAMOND ANTENNA SX-600 NEW

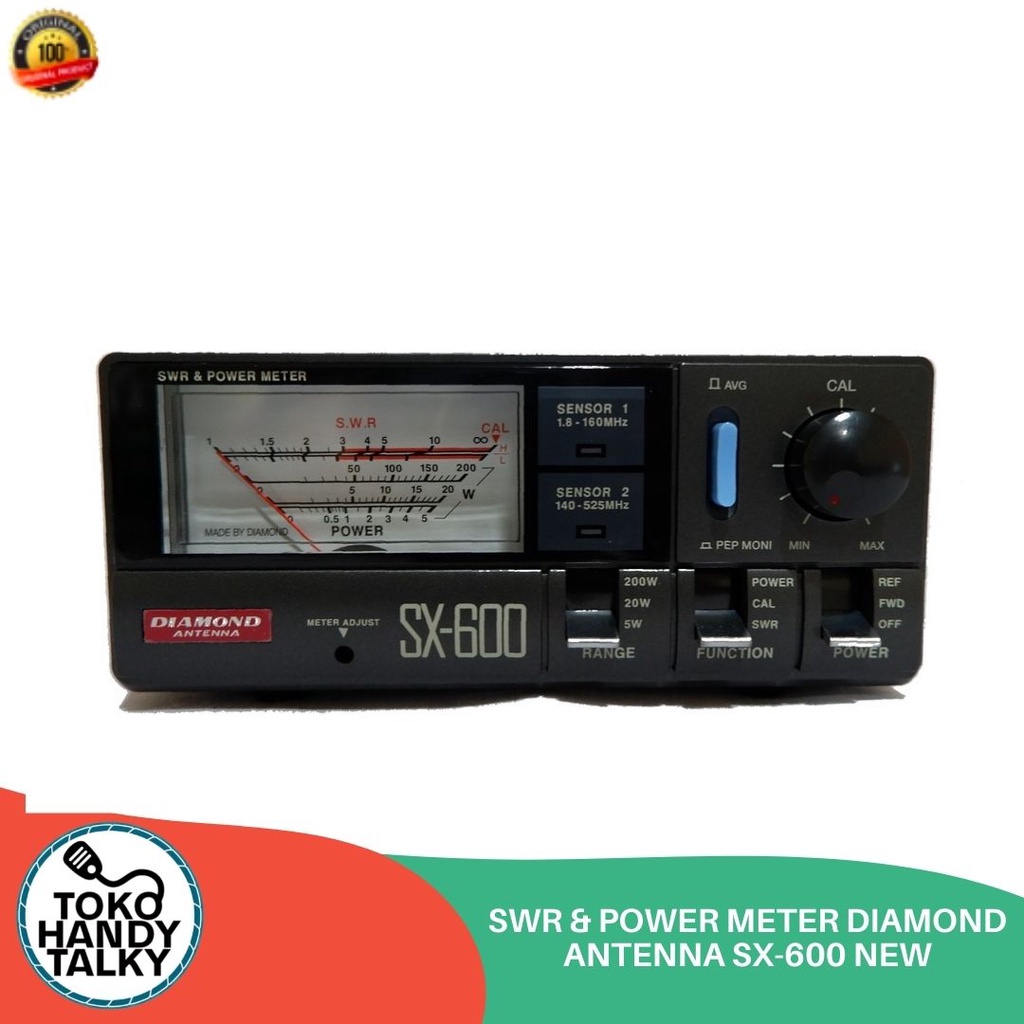

NAMA PRODUK : SWR & POWER METER DIAMOND SX-600

Dimensions:155Wx63Hx103Dmm
Frequency range:1.8 to 525MHz/S1(1.8 to 160MHz),S2(140 to 525MHz)
Power display range:5W 20W 200W
Accuracy at full scale:±10%(F.S.)
Minimum power at SWR measurement:S1(1W), S2(4W)
Insertion loss:S1(less than 0.2dB),S2(less than 0.3dB)
Measurement function:Forward RF power,Reflected RF power,SWR,PEP monitor

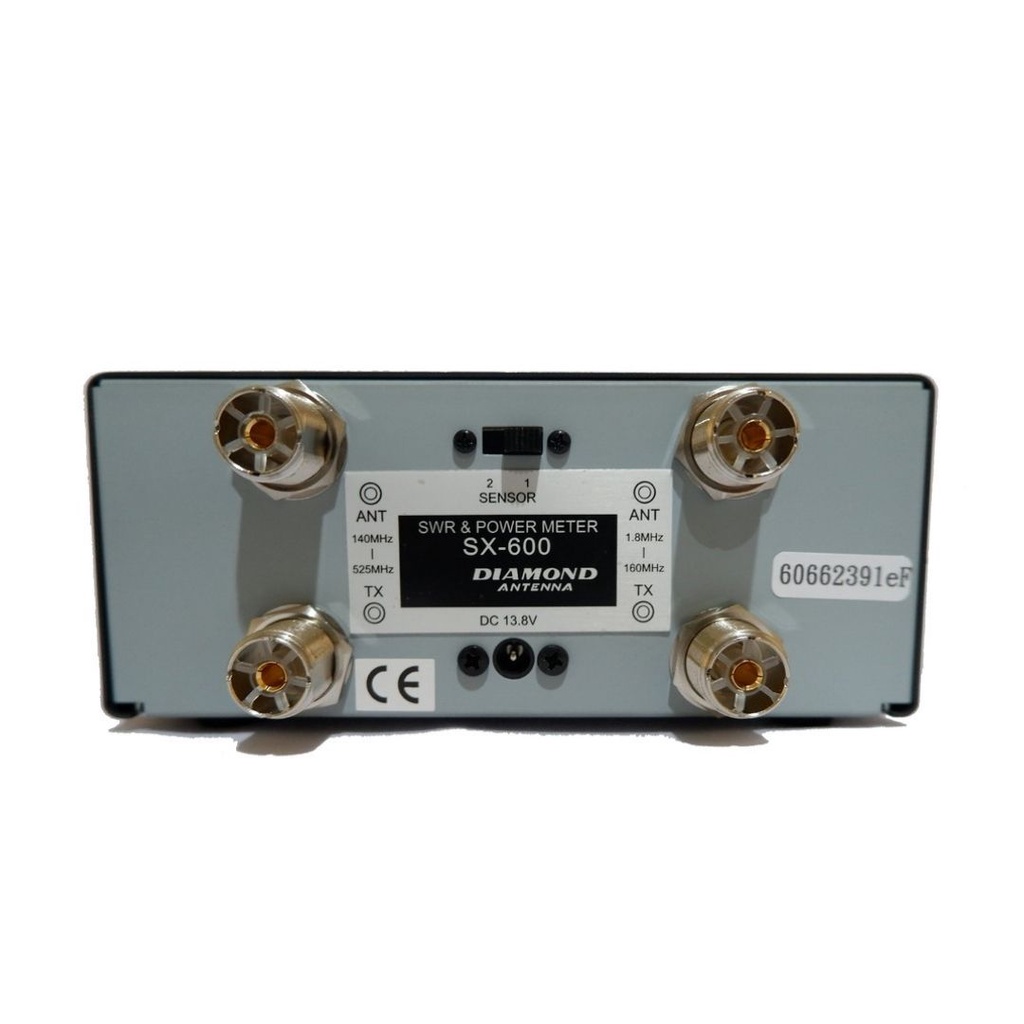

Connector:M-J/N-J
Display illumination:Meter illumination and LED function display require external DC13.8V power supply
Sensor:2 sensors(S1/S2)

Gambar produk
