Switching Power Supply PSU 24V 30A Input Power: 110VAC-220VAC 1PH Output Voltage: 24VDC Rated FAN

Detail Switching Power Supply PSU 24V 30A Input Power: 110VAC-220VAC 1PH Output Voltage: 24VDC Rated FAN

SELAMAT DATANG BOSSKU, TERIMA KASIH SUDAH MAMPIR

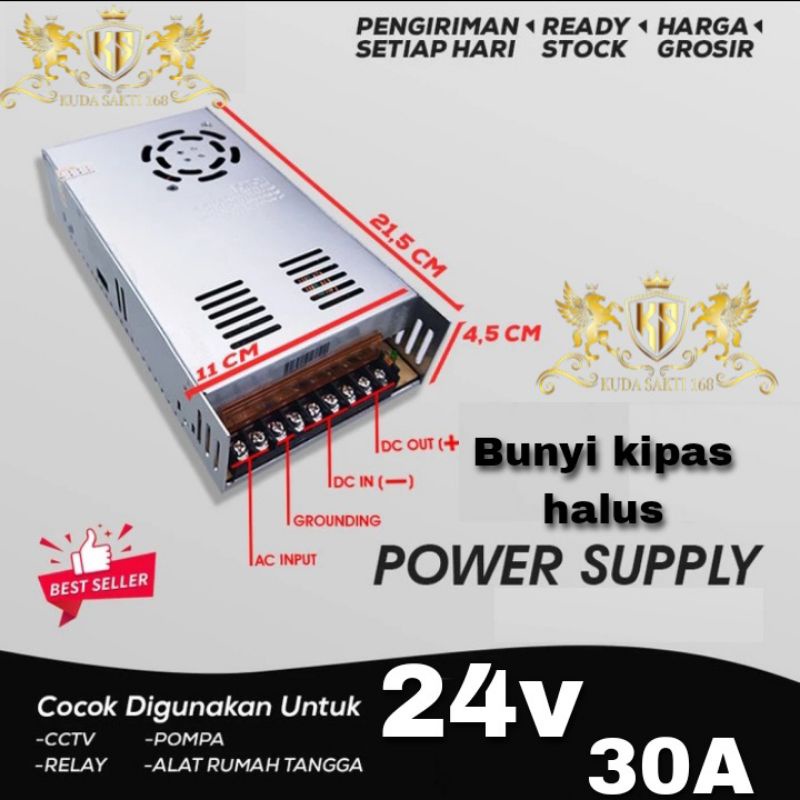

POWER SUPPLY SWITCHING 24V 30A



FEATURES:
1.High efficiency, long life and high reliabili
2.Low dc ripple, high efficiency
3.Low operation temperature & long performance life 4.Excellent insulation property, high dielectric strength
5.100% full-load burning test

INPUT:
1. AC input voltage range(V):AC 85V-265V
2.Input current(A):6.5A /115V,4A /230V
3.Frequency (Hz):50/60Hz
4.Efficiency:91% Typ(230V AC Full Load)
5.Inrush current(A):25A/115V 50A/230V cold start
6.Leakage current(mA): 3.5mA/240VAC
7.Size:215X115X50

OUTPUT:
1. Output Voltage(V):+24V DC
2. Voltage Regulation:10%
3. Output Current(A):20A
4. Current Range (A):0~30A
5. Rated Power(W):480W
6. Start Time, Hold-up Time(ms):Ton200ms,Td30ms @230Vac Full Load
7. Rise Time(ms):Typ:100ms @230Vac Full Load
8. Ripple/Noise(mVp-p):150mVp-p

MARI DI ORDER BOSSKU

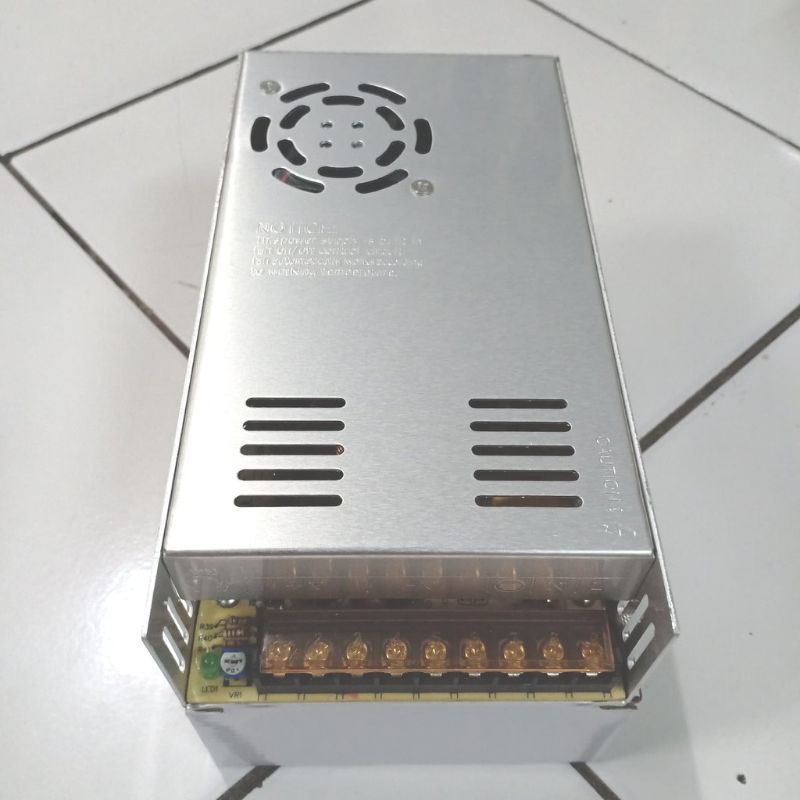

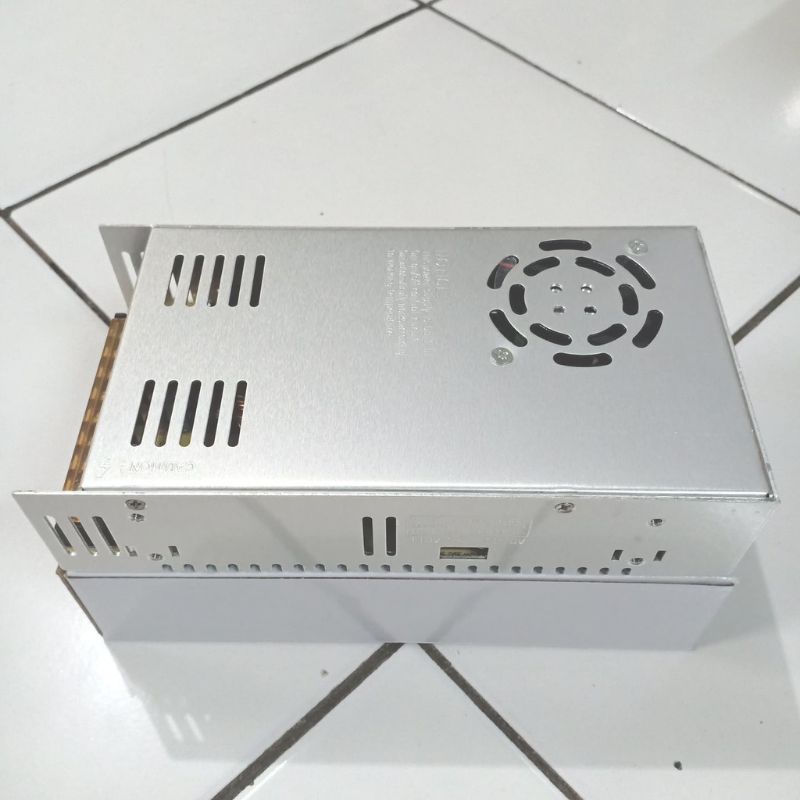

Gambar produk
