Detail Switch TP-Link TL-SF1016D

NET SH16 103
Deskripsi TP-Link TL-SF1016D 16-Port 10/100Mbps SWITCH HUB

Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Interface 16 10/100Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX: UTP category 5, 5e or above cable (maximum 100m)
Fan Quantity Fanless
Physical Security Lock Yes
Power Supply 100-240VAC, 50/60Hz
Power Consumption Maximum: 2.1W
Dimensions ( W x D x H ) 11.67.11.7 in. (29418044 mm)
Mounting Rack Mountable
Max Power Consumption 2.06W(220V/50Hz)
Max Heat Dissipation 7.03BTU/h

PERFORMANCE
Switching Capacity 3.2Gbps
Packet Forwarding Rate 2.38Mpps
MAC Address Table 8K
Buffer Memory 2Mb
Advanced Functions Green Technology
802.3X Flow Control
Green Technology Innovative energy-efficient technology saves power up to 75%
Transfer Method Store-and-Forward

OTHERS
Certification FCC, RoHS
Package Contents 16-Port 10/100Mbps Desktop/Rackmount Switch
Power Cord
Installation Guide
Rackmount Kit
Rubber Feet
Environment Operating Temperature: 0~40 (32~104);
Storage Temperature: -40~70 (-40~158);
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

Gambar produk

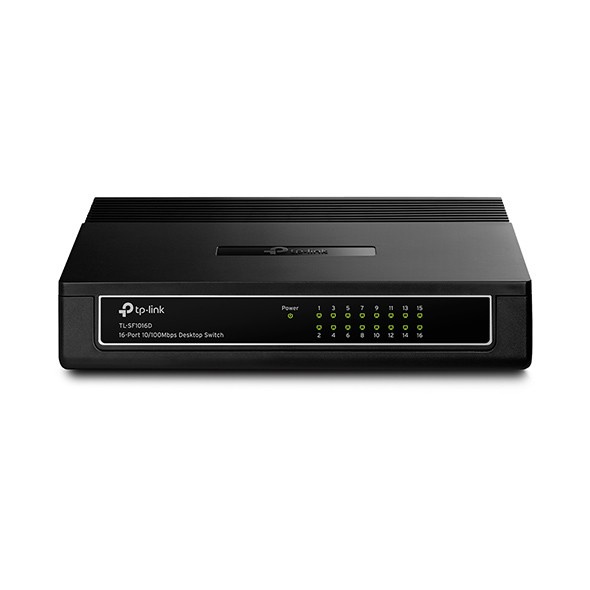

Switch TP-Link TL-SF1016D
