Detail SWITCH TOGGLE SAKLAR TOGLE 6 PIN ON OFF (ON) 15A 250V 20A 125V SPRING MOMENTARY KN3C-213AAH

SWITCH TOGGLE SAKLAR TOGLE 6 PIN ON OFF (ON) 15A 250V 20A 125V SPRING MOMENTARY KN3C-213AAH

SAKLAR PEMUTUS TEGANGAN ARUS LISTRIK SERTA PENGGERAK ARAH PERALATAN INDUSTRI MAJU-MUNDUR / ATAS-BAWAH, DAPAT DIGUNAKAN UNTUK ARUS AC DAN DC

SPESIFIKASI
- MEREK - TUV
- TIPE - KN3C-213AAH
- JENIS - DPDT (DOUBLE POLE DOUBLE THROW)
- KAKI - 6 PIN
- KAPASITAS - 15A 250V AC / 20A 125V AC
- FUNGSI - 3 ARAH - ON / OFF / (ON)
- POSISI (ON) - TULISAN ( ON )
- POSISI (OFF) - TULISAN ( OFF )
- POSISI (SPRING) - TULISAN ( ON )
- BODI - KOTAK
- WARNA - COKELAT
- DAYA TAHAN - 100.000 KALI
- SERTIFIKASI - CE / CCC

UKURAN :
- PANJANG 30 MM
- LEBAR 20 MM
- TINGGI 20 MM
- TINGGI DENGAN SWITCH DAN KAKI 55 MM
- DIAMETER DRAT 12 MM
- BERAT BERSIH 35 GR

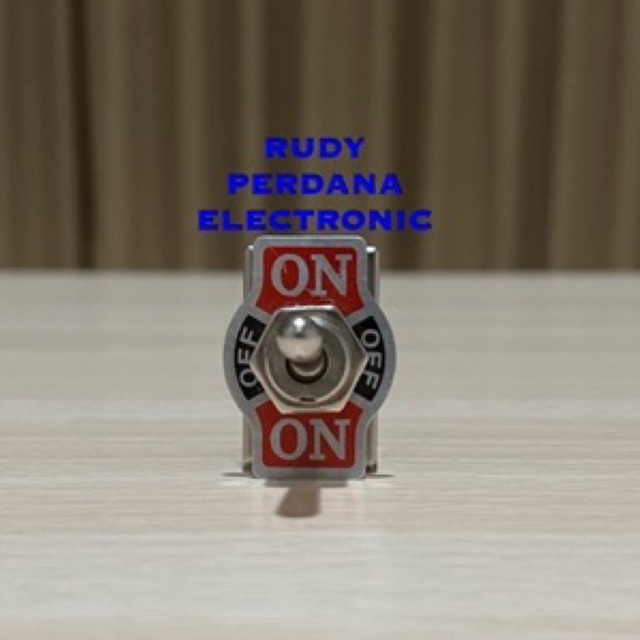

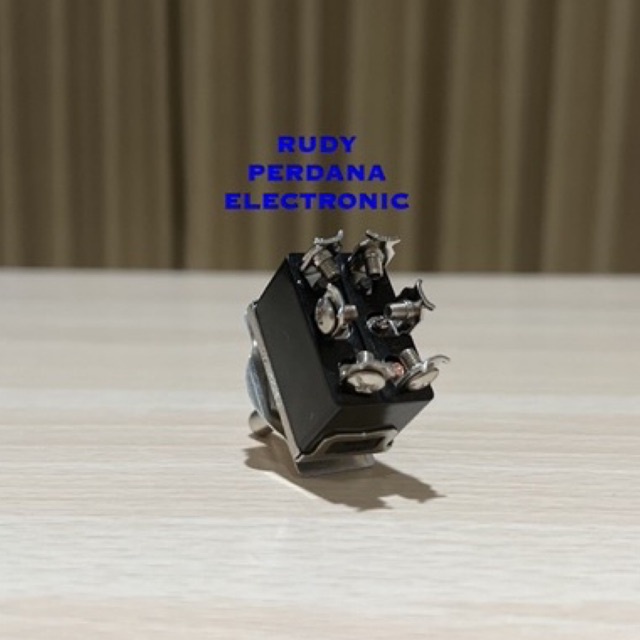

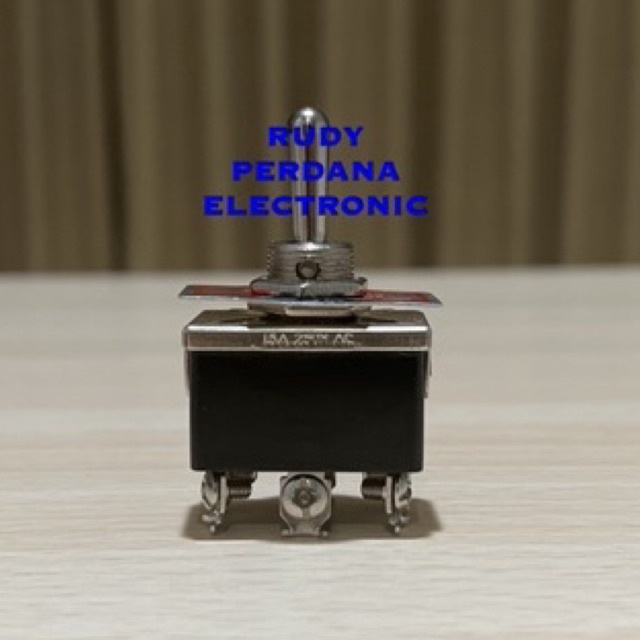

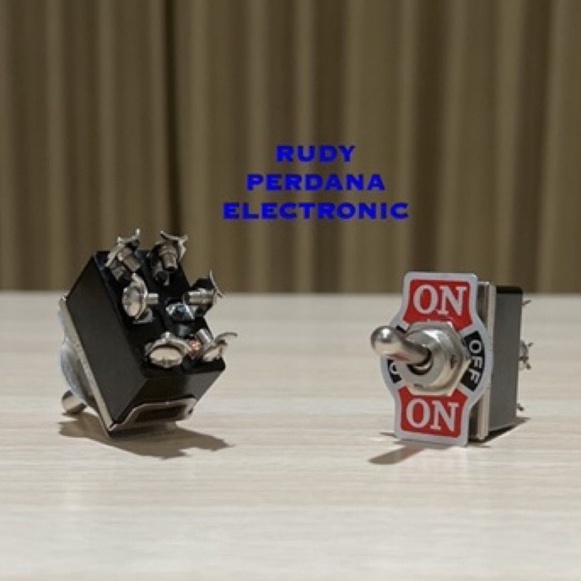

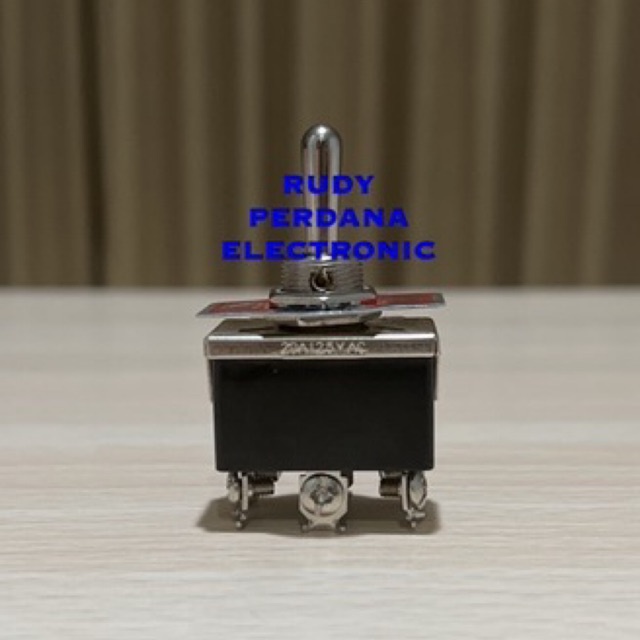

Gambar produk
