Switch Timer DC 12V 16A / Digital Programmable Timer Switch

Detail Switch Timer DC 12V 16A / Digital Programmable Timer Switch

Switch Timer DC 12V 16A / Digital Programmable Timer Switch
Features:
C 12V Digital Programmable Timer Switch

Switch Timer Cocok Untuk Auto On/Off Solar System
Lampu, AC, Pompa, Kipas, TV, Charger, dll.
Temperatur Penempatan 20 - 50 C
Tegangan untuk Power DC12V.
Tegangan untuk Switch / Barang yg dinyalakan 5V s/d 220 16A
Display: LCD.

Waktu Pengaturan: 17 program (on/off)(per hari dalam se minggu)
Lama waktu menyala: 1 menit s/d 168 jam

Battery bertahan hingga 60 hari (built-in rechargeable battery 1.2 V).
Ukuran 60 x 60 x 30mm, bisa ditutu
DC:12v.
Power consumption : 4.4VA.
current consumption without load : 0.015mA.
Cut out (MM) : 64.
Fitting Depths (mm) : 21.
SWITCHING CURRENT AC.
Resistive Load (LVD .IEC) 16A /250V AC.
Inductive load cos . 0.6 8A /250V AC.
incandescent lamp load 1000W.
SWITCHING CURRENT DC : 16A/24V DC.
Shortest switching time : 1 min.
Shortest switching interval: 1 min.
Number of channels \"\" 1.
Number of memory spaces : 17.
Operation accuracy : Type(+-)1 s/day.
Ambient temperature : -10'"-55'".
Type of connection : Plug in.
ACCORDING TO : EN60730-1.
Installation method:screw, connector connection.

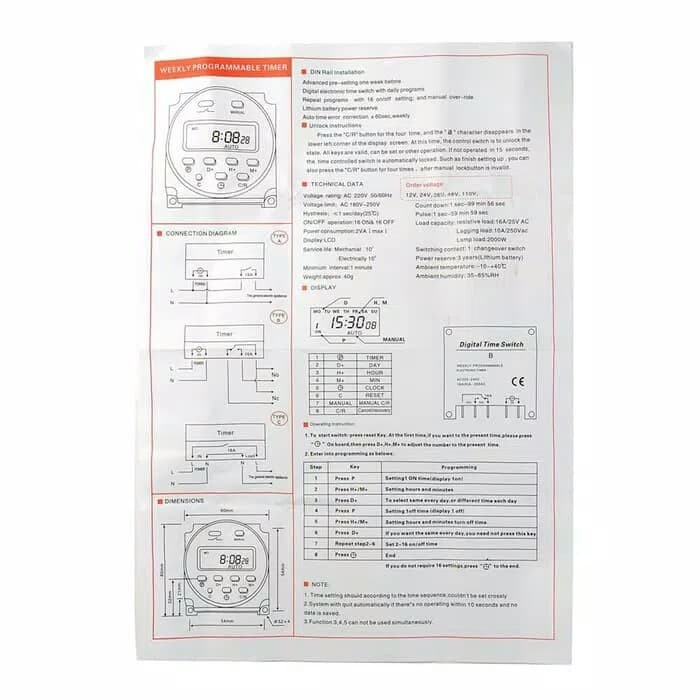

Key Button:
1.clock, timer, day, h+(setting the hours), m+(setting the minutes), manual override, reset.
Tips:
2.Before starting the program, the timer should be charged for at least
5 minutes as the inbuild battery may be of no battery.
3.Before setting the program, press the key button reset, to clear
the memorize data for the new instructions.
4.After the program is made, please insert the timer to the plug.
Then connect the electric appliance to the timer.i
5.The on and off can be set eight times each day, which can be set as follow:
First option, Sunday.
Second option: from Monday to Friday.
Third option: Saturday and Sunday(weekend).
Fourth option: from Monday to Saturday(working days).
Fifth option: Monday, Wednesday, Friday.
Sixth option: Tuesday, Thursday, Saturday.
Seventh option: from Monday to Wednesday.
Eighth option: from Wednesday
