SWITCH POE 8 Port / POE SWITCH 8+2PORTS 10/100MBPS / SWITCH HUB POE

Detail SWITCH POE 8 Port / POE SWITCH 8+2PORTS 10/100MBPS / SWITCH HUB POE

Deskripsi Produk :

8*10/100mbps POE port; 2*10/100mbps UP Link port
250m Distance
Support IEEE802.3AF/AT
Whole Power : 120W(52V 2.3A)
All port supported by MDI/MDIX auto flip and self negotiation
Supply 8 10/100Mpbs adaptive high speed forwarding data packet non-lost port.
Support IEEE802.3x flow control for Full-duplex mode and backpressure for
Half-duplex mode.
Each port max. power supply reached 30W.
Spesifikasi Produk :

Product : 8+2 Port 250m POE Switch (Built-in)
Model : Hi-F0820FBL
POE Port : 1 to 8 support IEEE802.3AF/AT Standard
Output Power : 15.4W/30W IEEE802.3af/at
Power Pin : Both 1/2+、3/6- and 4/5+7/8-
Whole Power : ≤120W (52V 2.3A)
POE Protocol IEEE 802.3af/IEEE 802.3at
POE Type : End-span
Power Distance : ≤250m
Network Standard : IEEE 802.3; IEEE802.3u; 802.3x; 802.3af/at
Network Medium 10/100BASE-TX:5 class and above non shielded twisted pair
Data Distance : ≤250m
Switch Capability : 1.6Gbps
Forwarding Mode : Store and forward
Forwarding Rate : 10BASE-T:14880PPS/port
100BASE-tx : 14800pps/port
MAC Address : MAC address table 1K
Port Function : Power priority mechanism, fast and forward, MAC automatic
learning and aging
IEEE802.3X Full-duplex and mode and backpressure for Half-duplex mode
LED Indicator : LINK/ACT.100Mbps;POE Status Indicator; Power indicator;Extender
Working Environment Working temperature : -10°-- 55°C
Size 270mm*180mm*44mm(L*W*H)
Application:

Wireless Access Point
IP Camera
IP Phone
Computer Networks

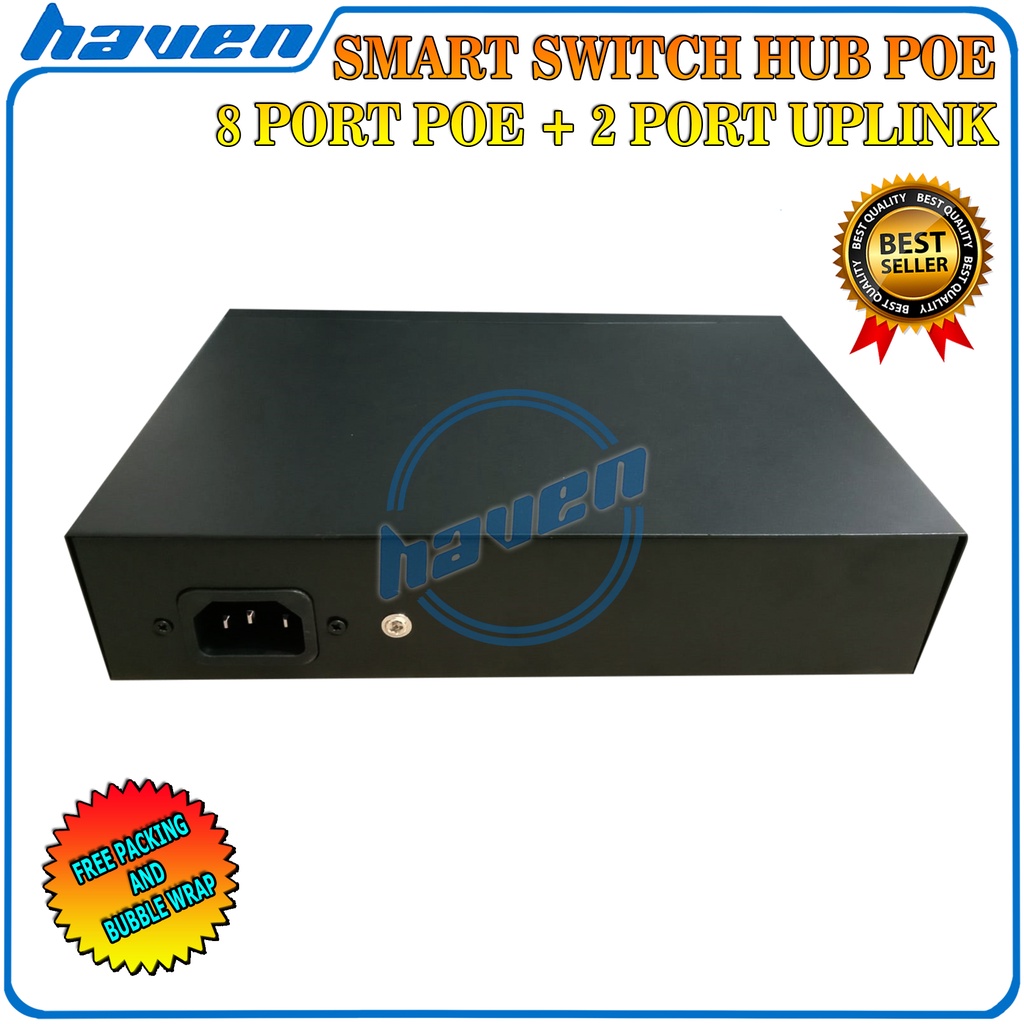

Gambar produk
