Switch Hub DLINK DES-1024D 24-Port Fast Ethernet Metal Body

Detail Switch Hub DLINK DES-1024D 24-Port Fast Ethernet Metal Body

kondisi baru
Garansi resmi D-Link
Body BESI / METAL

Number of Ports : 24 10/100Mbps Fast Ethernet ports
Topology Star
Network Cables
10BASE-T:
UTP CAT 3/4/5/5e (100 m max.)
EIA/TIA-586 100-ohm STP (100 m max.)
100BASE-TX
UTP CAT 5/5e (100 m max.)
EIA/TIA-568 100-ohm STP (100 m max.)
Media Interface Exchange
Auto MDI/MDIX adjustment for all ports
LED Indicators
Per port:
Link/Activity
Per device:
Power
Transmission Method
Store-and-forward
MAC Address Table
8K entries per device
MAC Address Learning
Automatic update
Packet Filtering /Forwarding Rates (half duplex)
Ethernet: 14,880 pps per port
Fast Ethernet: 148,800 pps per port
RAM Buffer
256 Bytes (2M bits)

Switching Fabric : 4.8 Gbps
Standards
IEEE 802.3 10BASE-T Ethernet (twistedpair copper)
IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
ANSI/IEEE 802.3 NWay Auto-Negotiation
IEEE 802.3x Flow Control
IEEE 802.3az EEE function

Protocol
CSMA/CD
Data Transfer Rates
Ethernet:
10 Mbps (half duplex)
20 Mbps (full duplex)
Fast Ethernet:
100 Mbps (half duplex)
200 Mbps (full duplex)

Power Input
100~240 V AC 50/60 Hz internal universal power supply
Power Consumption
Power On (Standby):
DC input: 1.18 Watts
AC input: 2.09 Watts
Max.:
DC input: 2.72 Watts
AC input: 4.14 Watts
Heat Dissipation
Power On (Standby):
AC input: 7.13 BTU/h
Maximum:
AC input: 14.13 BTU/h

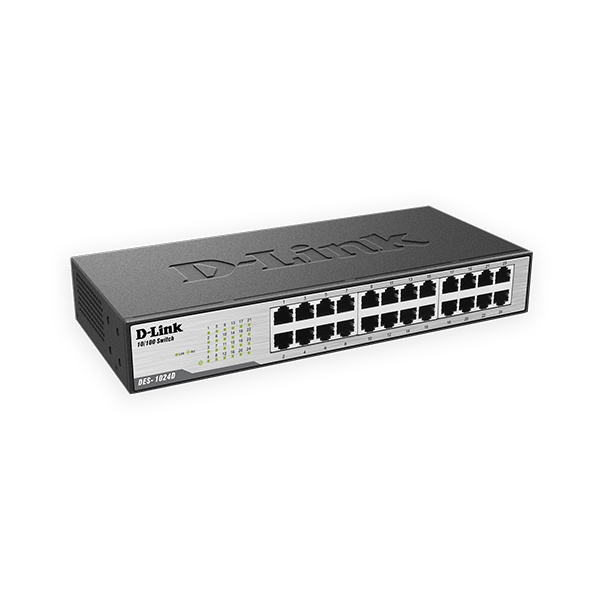

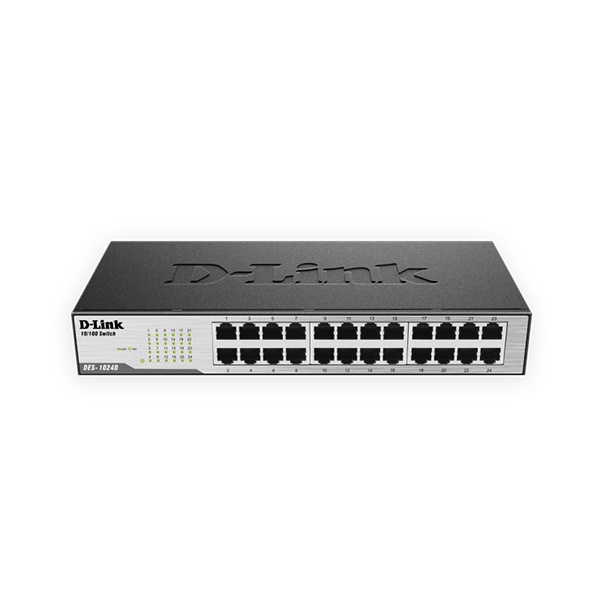

Gambar produk
