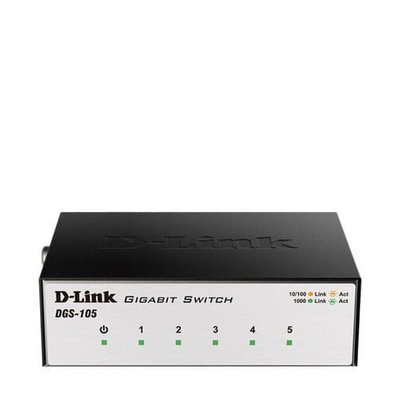

Switch HUB D-LINK DGS-105 GIGABYTE

Detail Switch HUB D-LINK DGS-105 GIGABYTE

Deskripsi DLINK DGS-105 GIGABYTE SWITCH METAL CASING/SWITCH HUB DLINK/SWITCH HUB
Specifications

Device Interfaces : DGS-105: Five 10/100/1000 Gigabit LAN ports



Standards

IEEE 802.3 10BASE-T

IEEE 802.3u 100BASE-TX

IEEE 802.3x Flow Control

IEEE 802.3ab 1000BASE-T

IEEE 802.1p QoS

IEEE 802.3az Energy-Efficient Ethernet (EEE)



Advanced Features

Green Ethernet

10/16 Gbps switching fabric

Auto MDI/MDIX crossover for all ports

Secure store-and-forward switching scheme

Full/half-duplex for Ethernet/Fast Ethernet speeds

Supports 9,216-Byte jumbo frames

Back pressure at half-duplex operation

Cable diagnostics Function

Wire-speed reception and transmission

Store and-forward switching method

Auto-negotiation for each port

RoHS compliant.

ErP compliant

EEE compliant

IEEE 802.3 10BASE-T

IEEE 802.3ab 1000BASE-T

IEEE 802.3u 100BASE-TX

IEEE 802.3az EEE

IEEE 802.3x flow control

IEEE 802.1p QoS (4 queues, strict Mode)



Protocol

CSMA/CD



Data Transfer Rates

Ethernet

10 Mbps (half duplex)

20 Mbps (full duplex)

Fast Ethernet

100 Mbps (half duplex)

200 Mbps (full duplex)

Gigabit Ethernet

2000 Mbps (full duplex)



Transmission Method

Store-and-forward



MAC Address Table

2k

8k

MAC Address Learning

Automatic Update



Packet Filtering/Forwarding Rates

Ethernet: 14,880 pps per port

Fast Ethernet: 148,800 pps per port

Gigabit Ethernet: 1,488,000 pps per port



RAM Buffer

DGS-105: 250KB per device
