Switch Hub D-Link DES-1016C/D 16 Port 10/100|DES 1016C/D Metal Case

Detail Switch Hub D-Link DES-1016C/D 16 Port 10/100|DES 1016C/D Metal Case

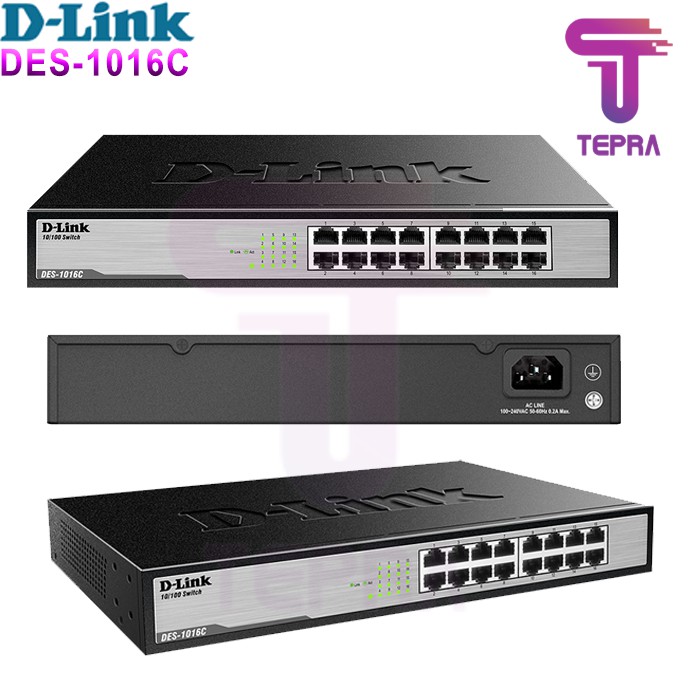

D-Link DES-1016C/D 16-Port 10/100 Mbps Unmanaged Switch Metal Case

"Tanpa Video Unboxing yang Real, Kami TIDAK Menerima Komplain"

SKU : 9000000269

General features
Device Interfaces
• 16 10/100 Mbps LAN ports

Standards
• IEEE 802.3 10BASE-T
• IEEE 802.3u 100BASE-TX
• IEEE 802.3x Flow Control
• IEEE 802.1p QoS
• IEEE 802.3az Energy-Efficient Ethernet (EEE)

Switching Capacity
• 3.2 Gbps switching fabric

Advanced Features
• Auto MDI/MDIX crossover for all ports
• Secure store-and-forward switching scheme
• Full/half-duplex for Ethernet/Fast Ethernet speeds
• Supports 9 216 byte jumbo frames
• Back pressure at half-duplex operation
• Wire-speed reception and transmission
• Store and-Forward switching method
• Auto-negotiation for each port
• QoS (4 queues, strict mode)

Data Transfer Rates
• Ethernet:
• 10 Mbps (half duplex)
• 20 Mbps (full duplex)
• Fast Ethernet:
• 100 Mbps (half duplex)
• 200 Mbps (full duplex)

Transmission Method
• Store-and-forward

MAC Address Table Size
• 8 000

Packet Filtering/Forwarding Rates
• Ethernet: 14 880 pps per port
• Fast Ethernet: 148 800 pps per port

RAM Buffer
• 256 KB per device

Physical Parameters
LED Indicators
• Per port: Link/Activity/Speed
• Per device: Power

Media Interface Exchange
• Auto MDI/MDIX adjustment for all ports

Dimensions
• 282.2 x 151 x 44.5 mm

Weight
• 1.06 kg

Power
• 100 to 240 V AC

Power Consumption
• Power On (Standby): 0.79 watts
• Maximum: 5 watts

Temperature
• Operating: 0В° to 40В°C
• Storage: -40В° to 70В°C

Humidity
• Operating: 10% to 90% (Non-condensing)
• Storage: 5% to 95% (Non-condensing)

MTBF
• 1 215 319 hours

Maximum Heat Dissipation
• 22.75 BTU/h
