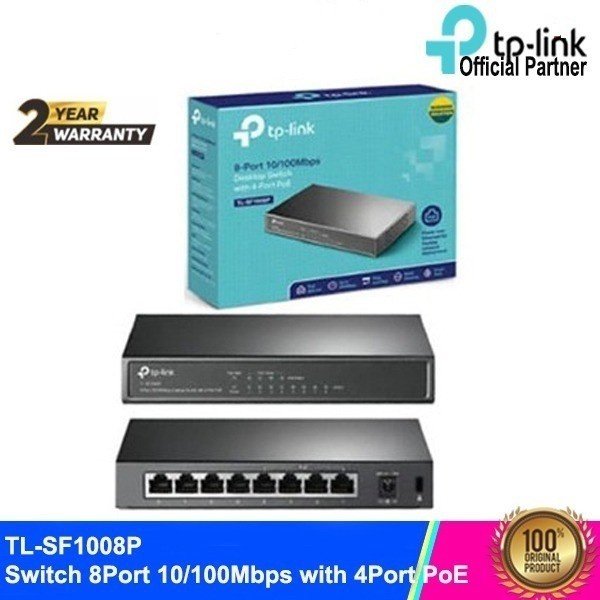

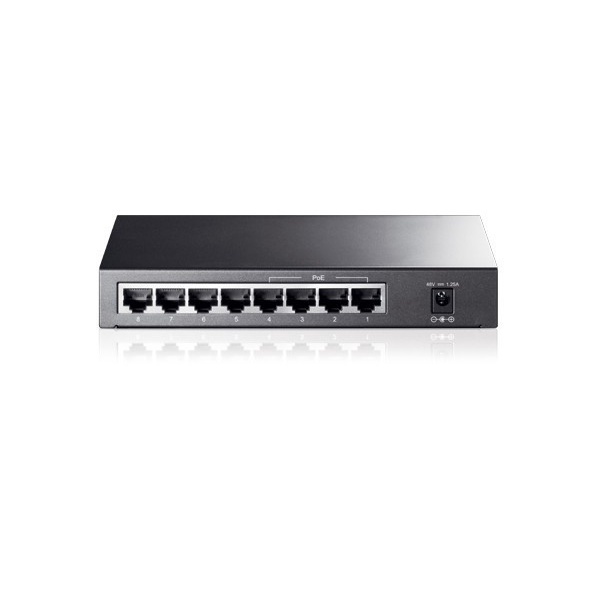

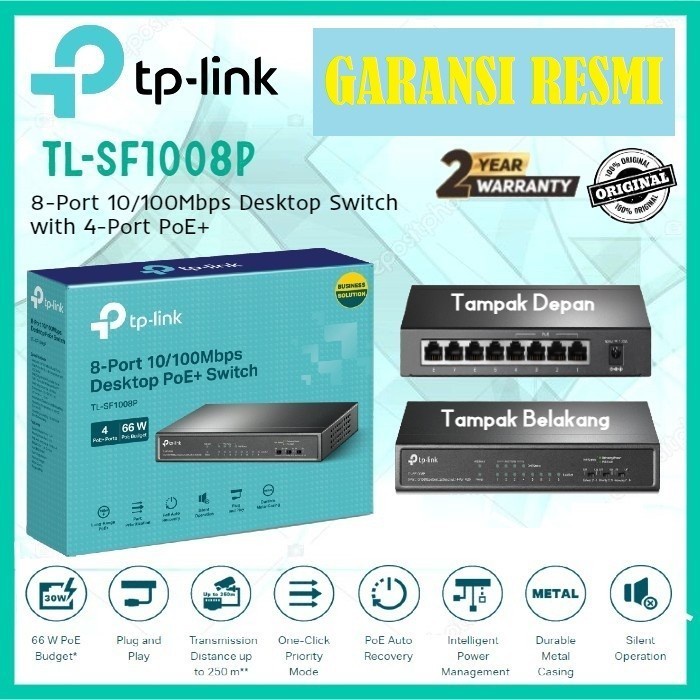

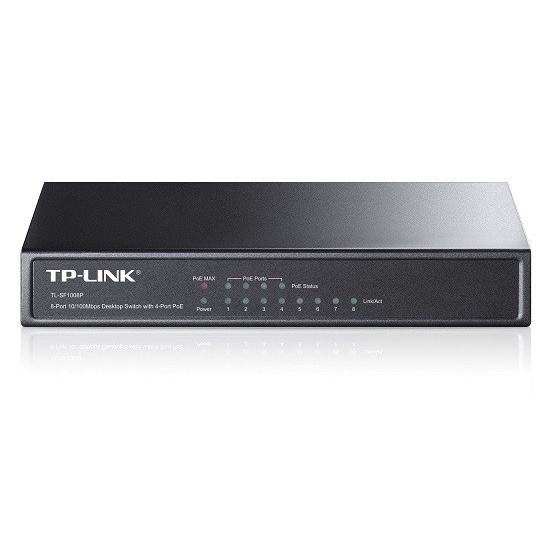

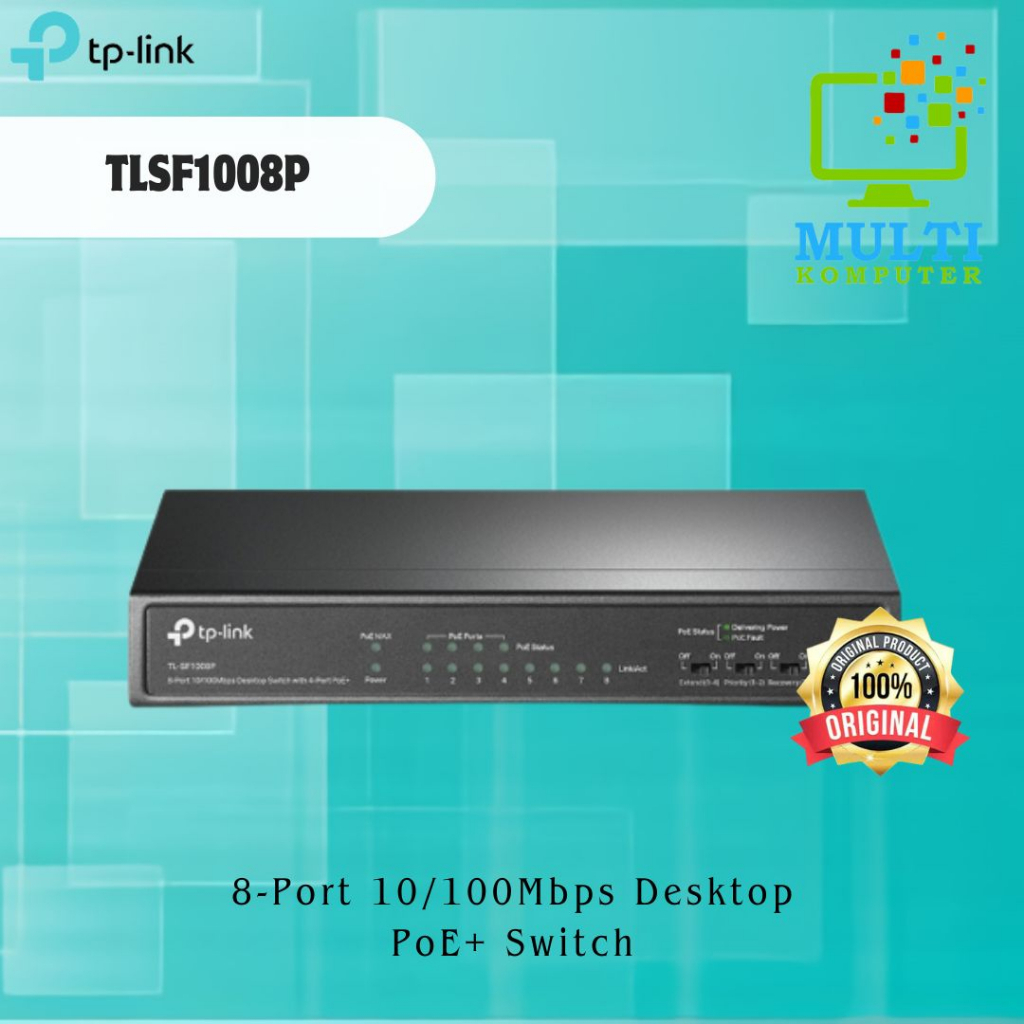

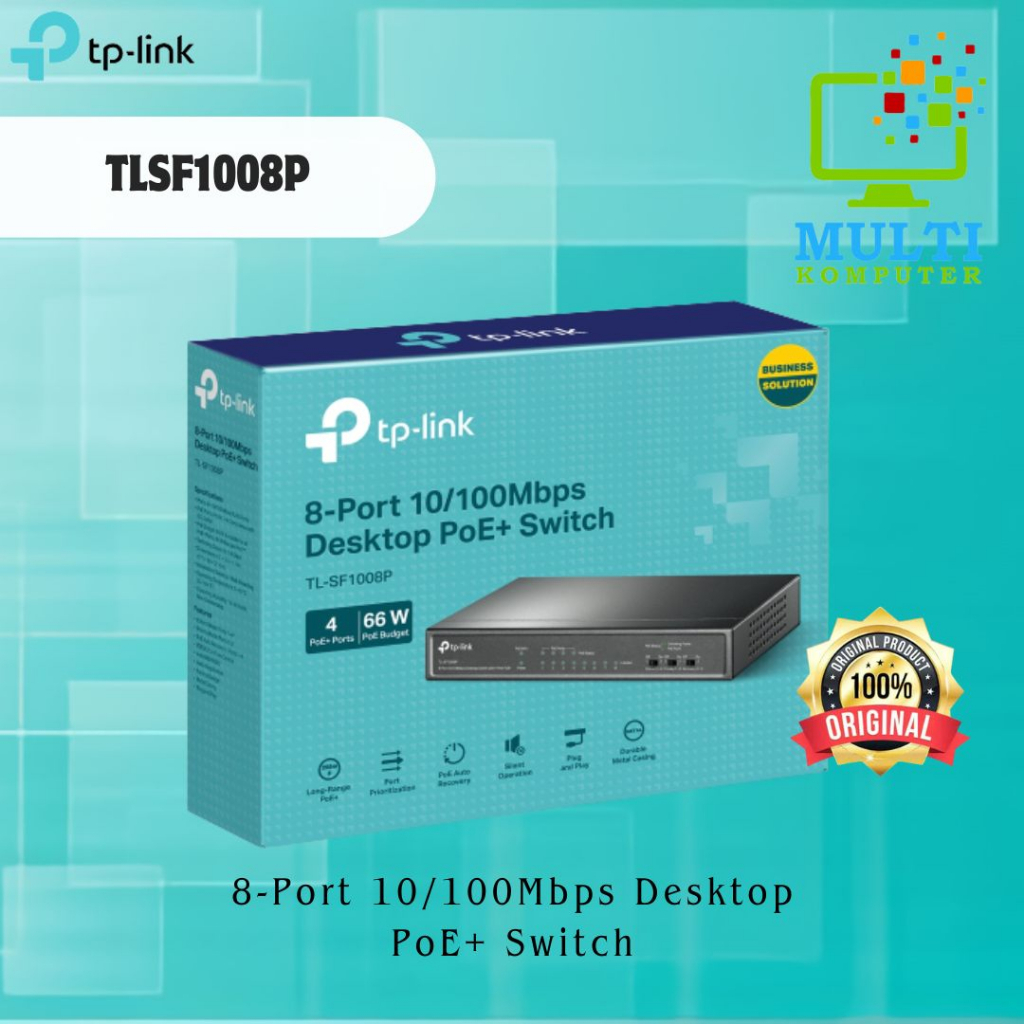

Switch 8 Port 10/100Mbps with 4 Port PoE TPLINK TL-SF1008P

Detail Switch 8 Port 10/100Mbps with 4 Port PoE TPLINK TL-SF1008P

TP-Link TL-SF1008P
8-Port 10/100Mbps Desktop Switch with 4-Port PoE

• 8× 10/100 Mbps RJ45 ports
• 4× PoE+ ports transfer data and power on individual cables
• Works with IEEE 802.3af/at compliant PDs
• Supports PoE Power up to 30 W for each PoE port
• Supports PoE Power up to 66 W for all PoE ports*
• Up to 250m data and power transmitting range under Extend Mode**
• Priority Mode ensures high priority of ports 1–2 to guarantee the quality of
sensitive application
• PoE Auto Recovery guarantees stable operation of PoE devices by automatically
rebooting the dropped or unresponsive PD devices
• Fanless Design reduces power consumption and works silently in its location
• Plug and play with no configuration required

Spesifikasi :
HARDWARE FEATURES
Interface :
• 8× 10/100 Mbps RJ45 Ports (4× 10/100 Mbps 802.3af/at PoE+ ports)
• AUTO Negotiation
• AUTO MDI/MDIX
Network Media :
• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity : Fanless
Physical Security Lock : Yes
External Power Supply : External Power Adapter (Output: 53.5 V DC / 1.31 A)
Packet Forwarding Rate : 1.1904 Mpps
PoE Ports (RJ45) :
• Standard: 802.3 af/at compliant
• PoE Ports: Ports 1–4
• Power Supply: 66 W
Mac Address Table : 2K
Jumbo Frame : 2 KB
Switching Capacity : 1.6 Gbps
Max Power Consumption :
2.27 W (220 V/ 50 Hz. no PD connected)
75.33 W (220 V/ 50 Hz. with 66 W PD connected)
Max Heat Dissipation :
7.74 BTU/h(no PD connected)
256.88 BTU/h(with 66 W PD connected)

SOFTWARE FEATURES
Transmission Method :Store-And-Forward
Advanced Functions :
Extend Mode Button (Ports 1–4)
Priority Mode Button (Ports 1–2)
PoE Auto Recovery Button (Ports 1–4)
Mac Address Auto-Learning and Auto-Aging

OTHERS
Certification :FCC, CE, RoHS
Package Contents : TL-SF1008P, Power Adapter, Installation Guide, Rubber Feet
Environment :Operating Temperature: 0–40 ℃ (32–104 ℉)

Gambar produk
