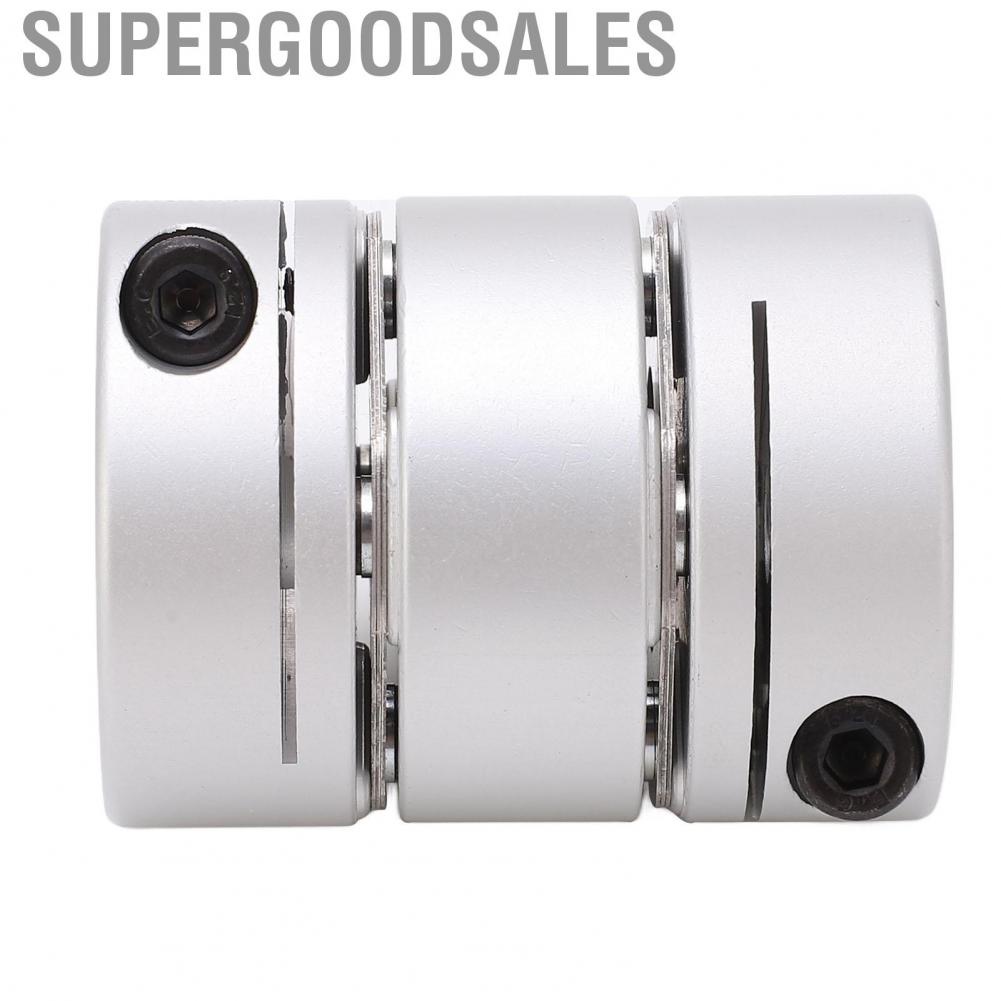

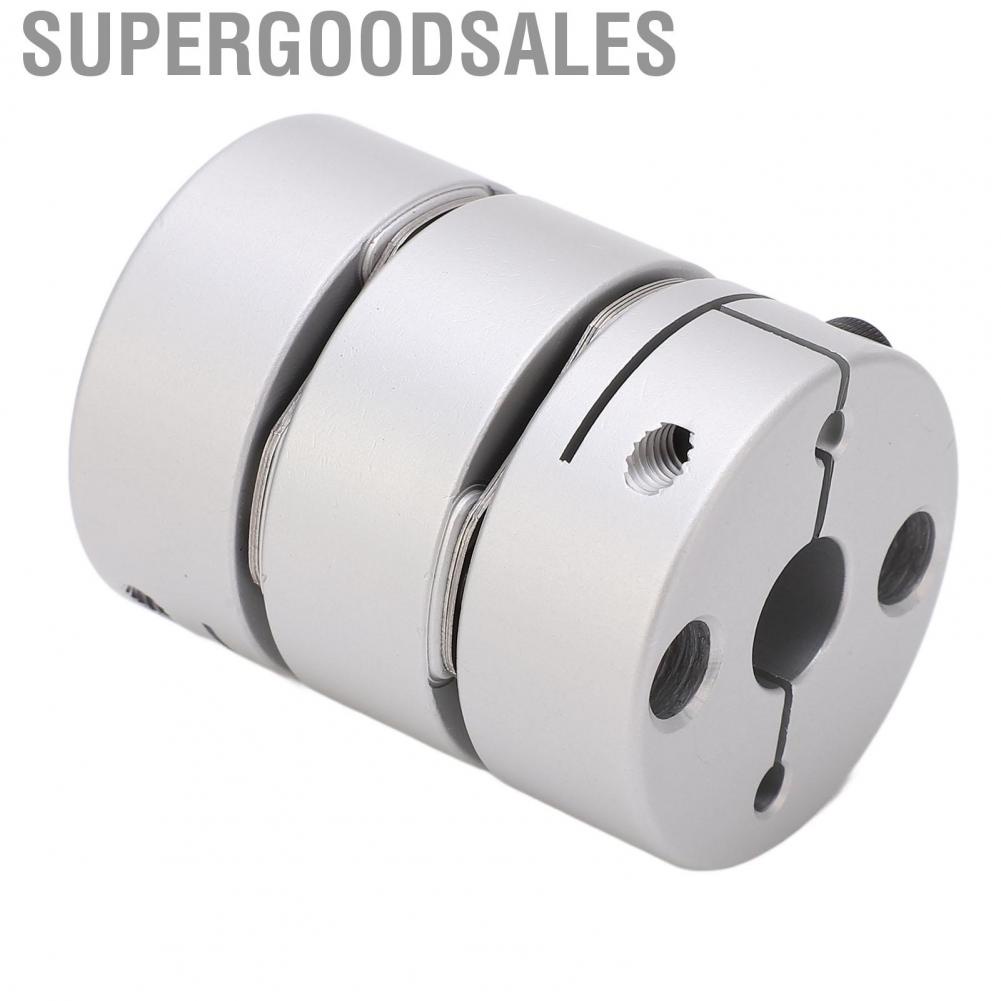

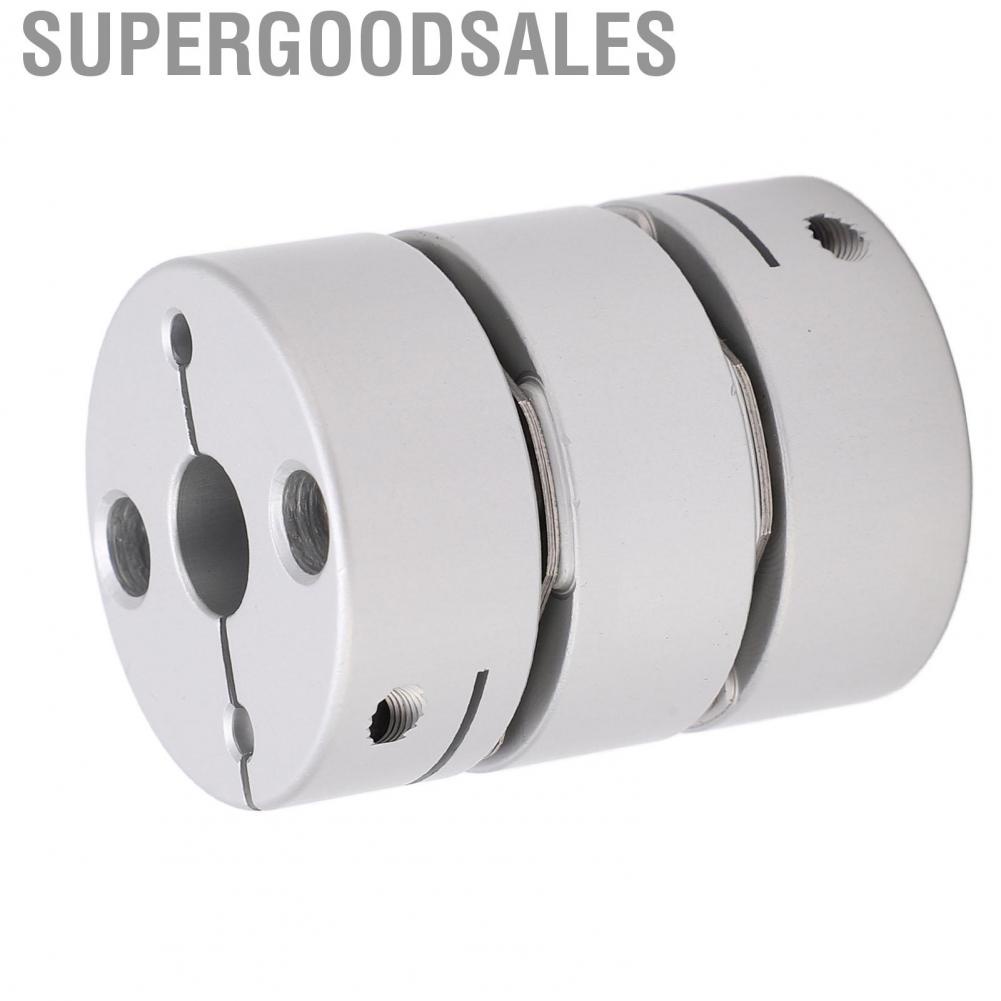

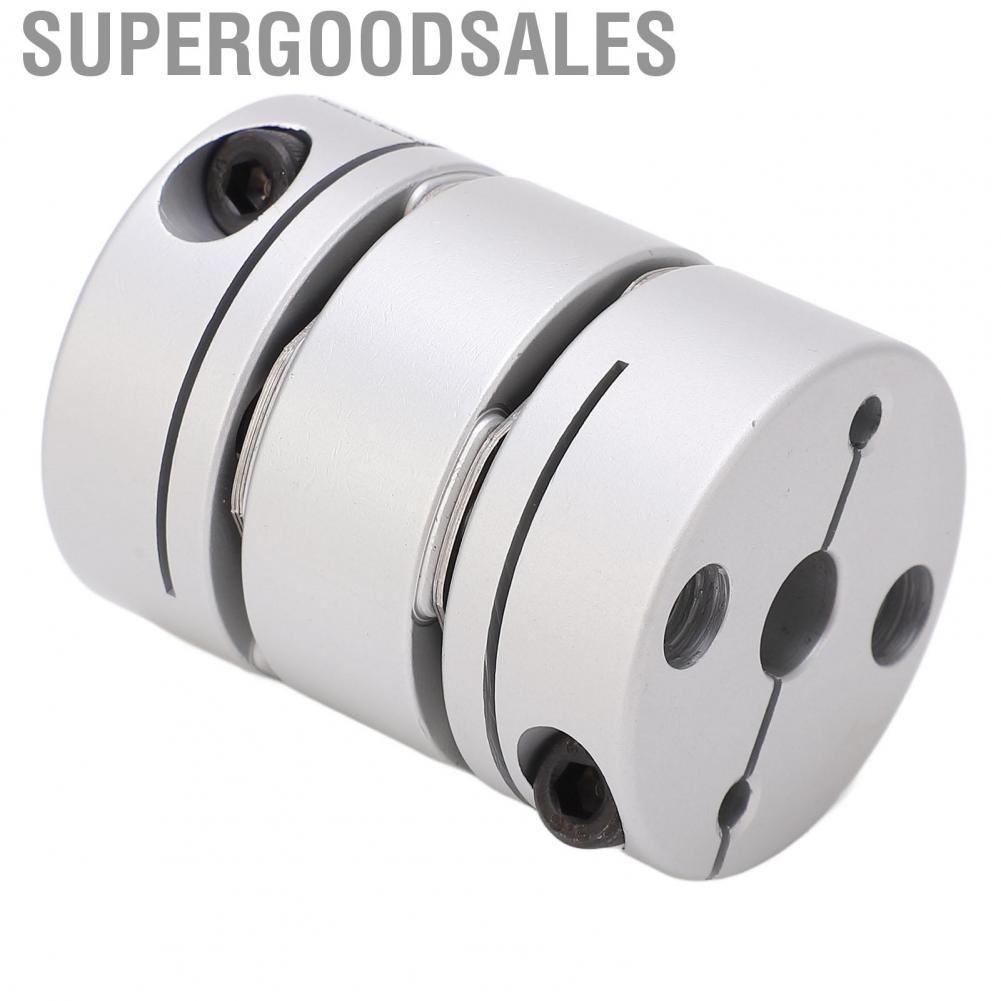

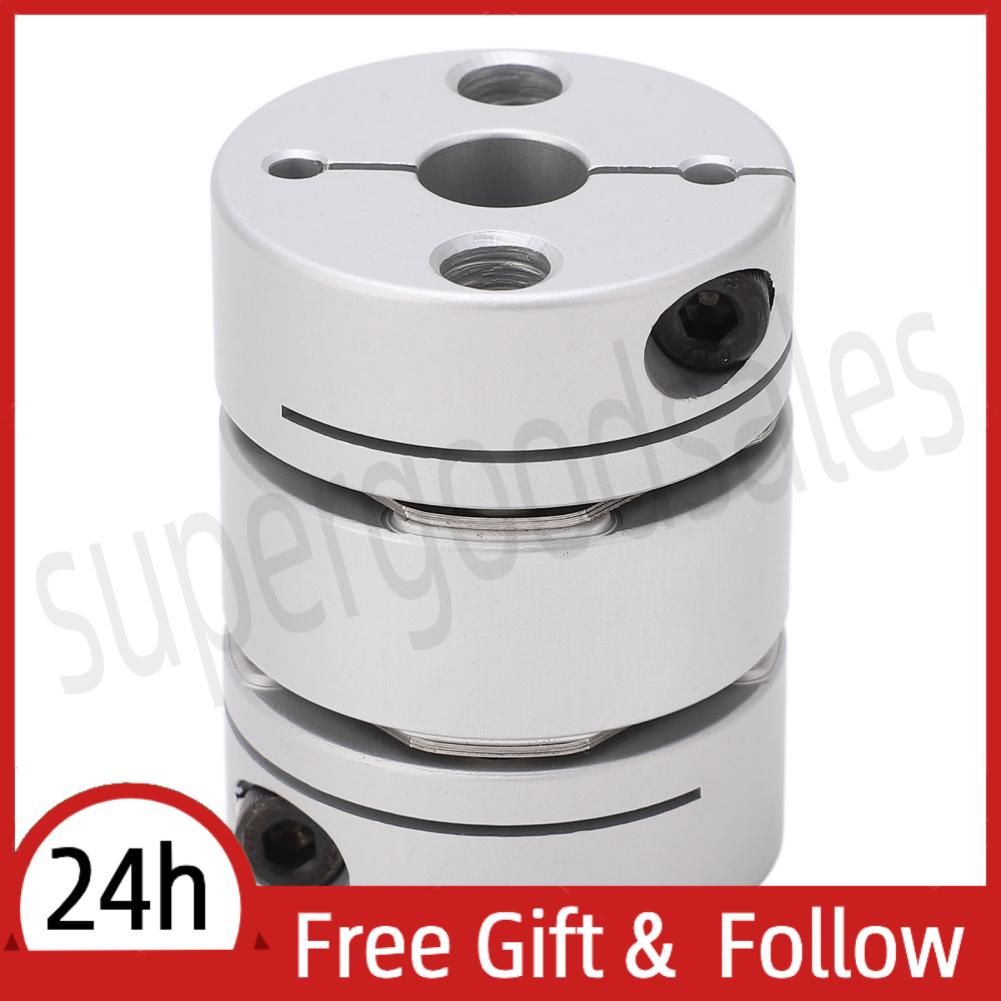

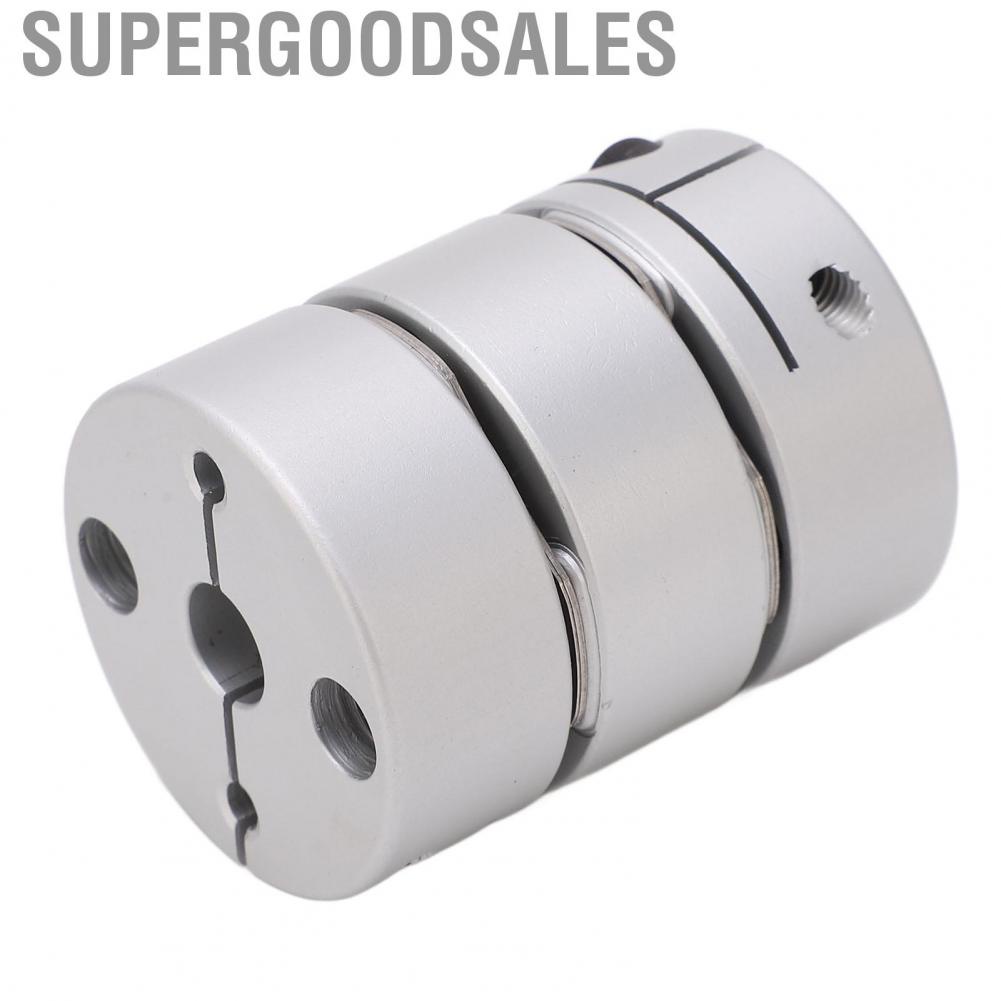

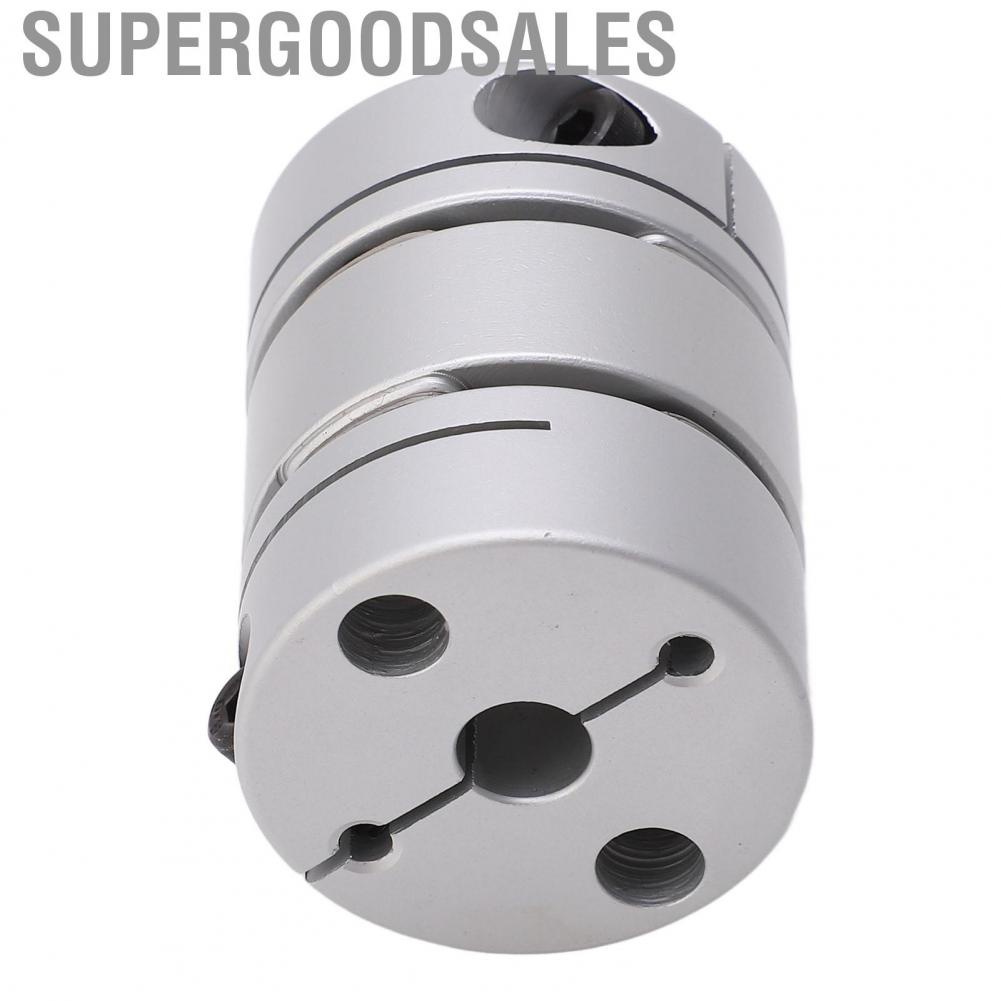

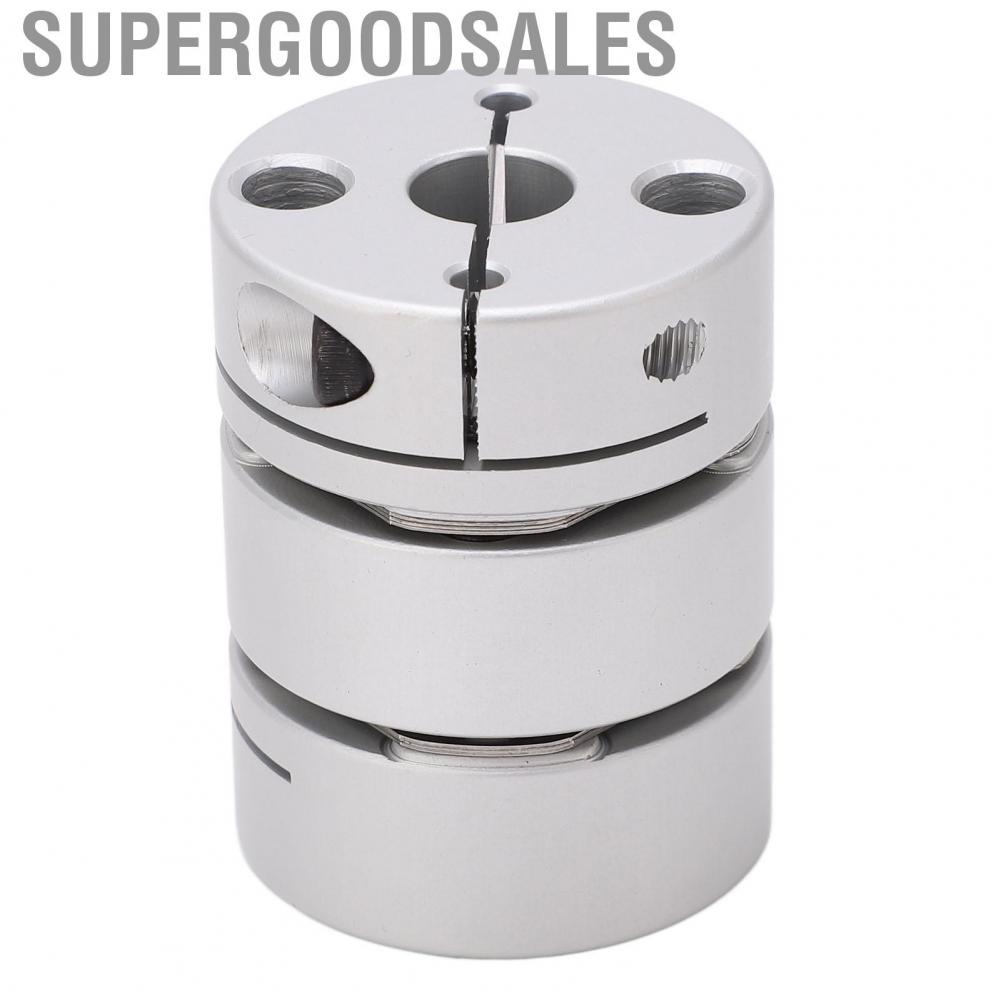

Detail Supergoodsales Shaft Double Coupling for Stepper Motors Encoder Machine 26/34/40mm
--------------☀Welcome to Supergoodsales☀-------------✔Good Quality✔Available✔Lowest Price
✈Shipping from oversea,items will arrive your home in 1-2 week.
⏩If you follow us and screenshot to us, you will have a free gift.
❀Please Enjoy Your Shopping Time↖(^ω^)↗
1. Firm Coupling: Clamp style mounting enables secure attachment to the shaft, and accommodates angular and parallel misalignment.
2. Wide Matching: Allows for wide application in connecting servo , stepper , encoder, screw driving, machine platform, etc.
3. Good Material: Using aluminium hubs for light weight, meanwhile the stainless steel discs with high strength ensures stable working.
4. Better Design: Comes with 10mm maximum shaft diameter and 8mm minimum shaft diameter as well as 34mm outer diameter, very reliable.
5. Easy to Install: Compact in size, the diaphragm coupling is very convenient to install, which can be quickly completed in minutes.
Specification:
Item Type: Shaft Coupling
Material: Aluminium alloy, stainless steel
Outer Diameter: Approx. 34mm / 1.34in
Maximum Shaft Diameter: Approx. 10mm / 0.39in
Minimum Shaft Diameter: Approx. 8mm / 0.31in
Axial Displacement: ±0.38K²a
Eccentricity: 0.18Kr
Angular: 2.2a
Static: 2000Nm/rad
Radial: 3500Nm/rad
Rated Torsion: 5.5N·m
Maximum Torsion: 11N·m
Package List:
1 x Shaft Coupling
Note:
Pay attention to the operation.
