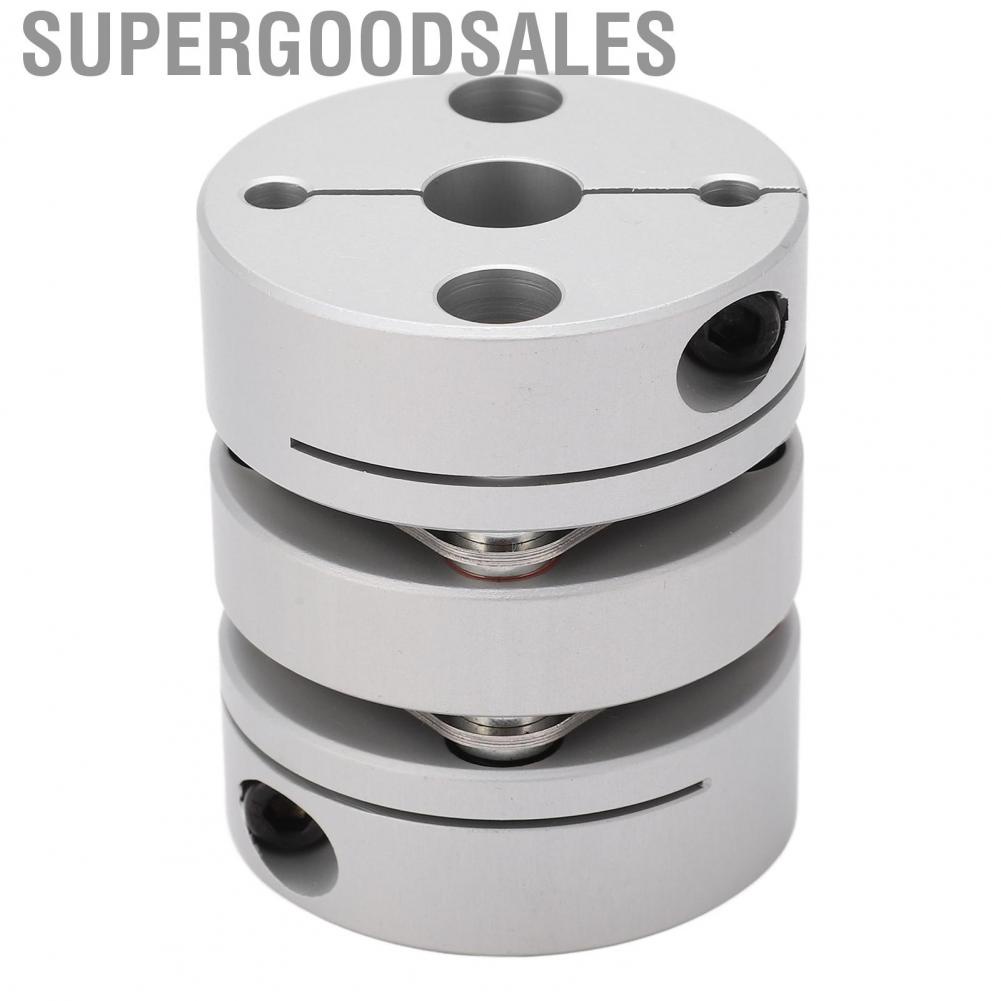

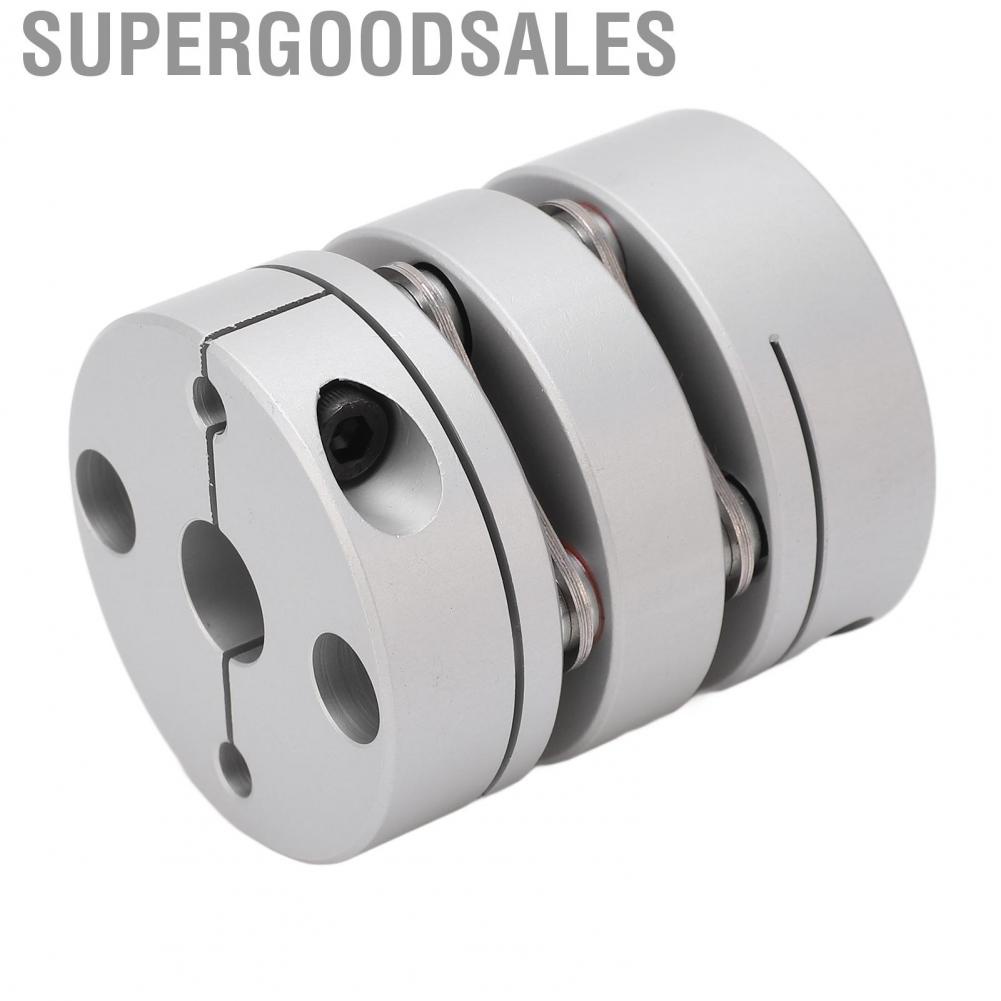

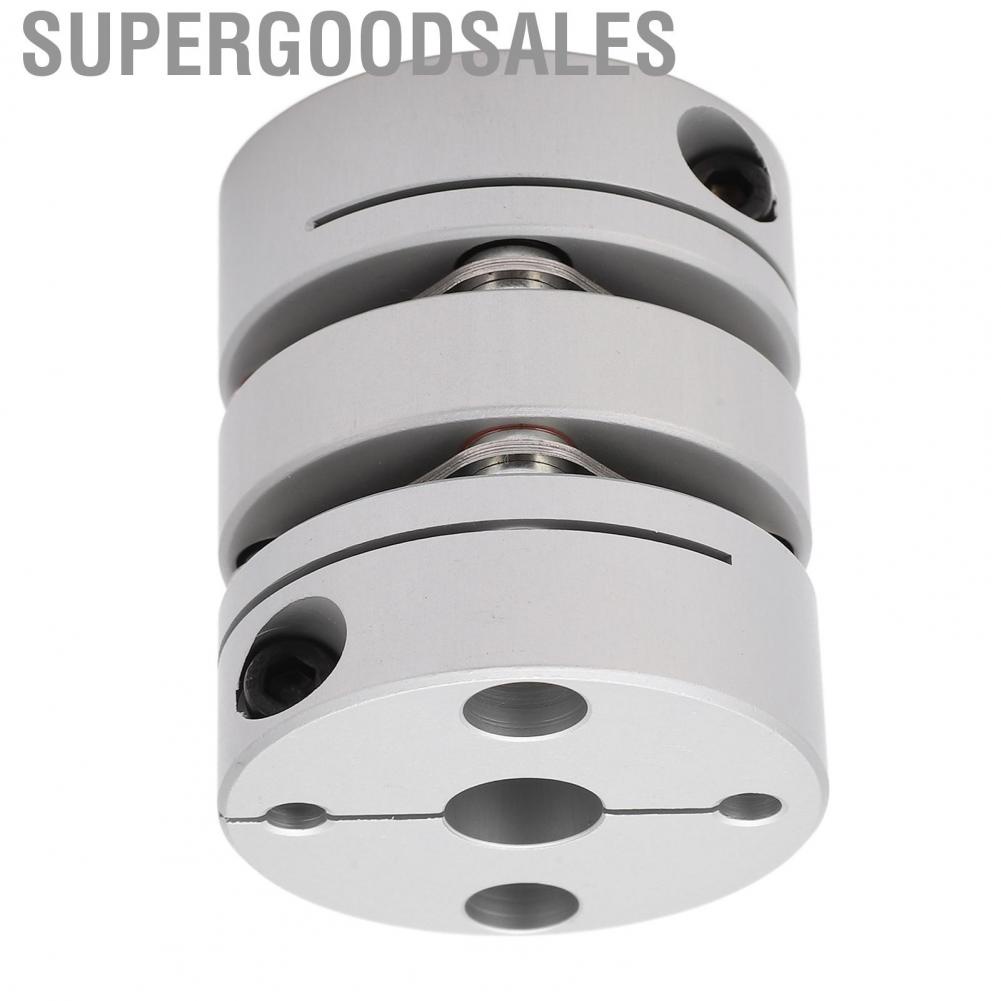

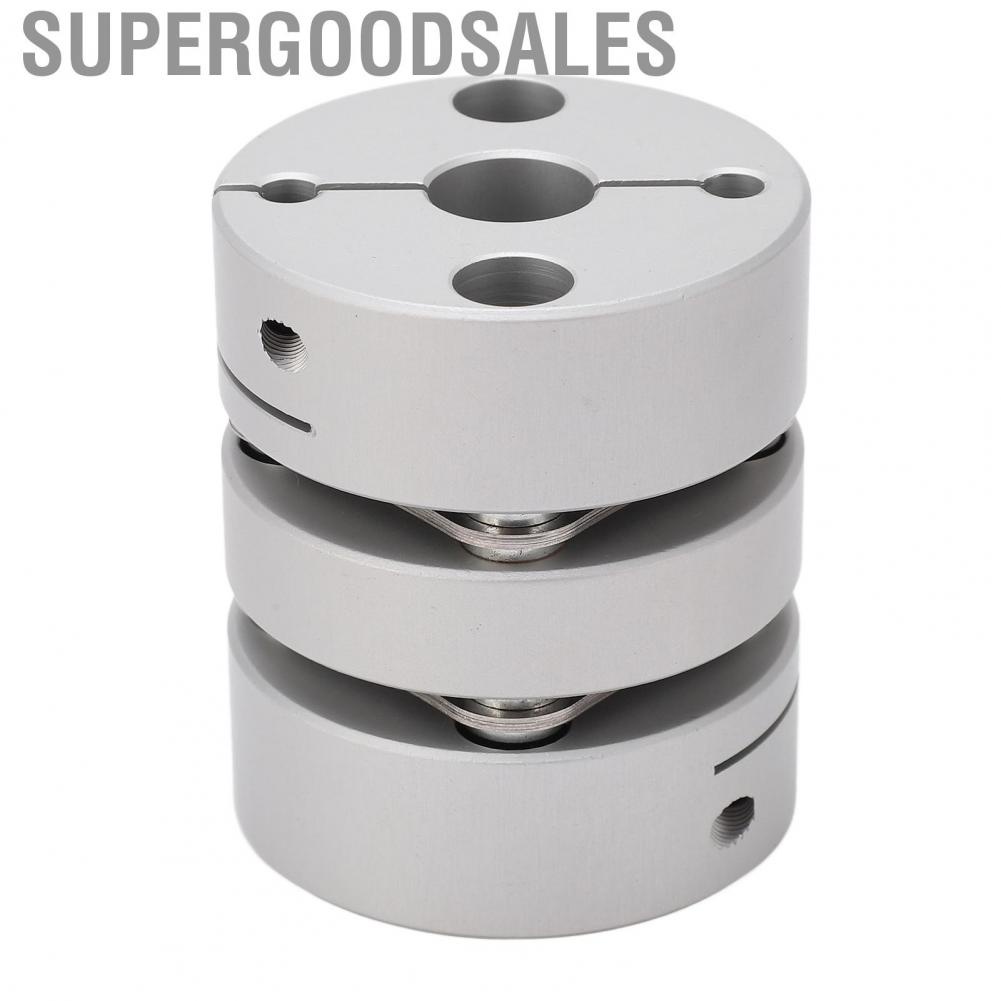

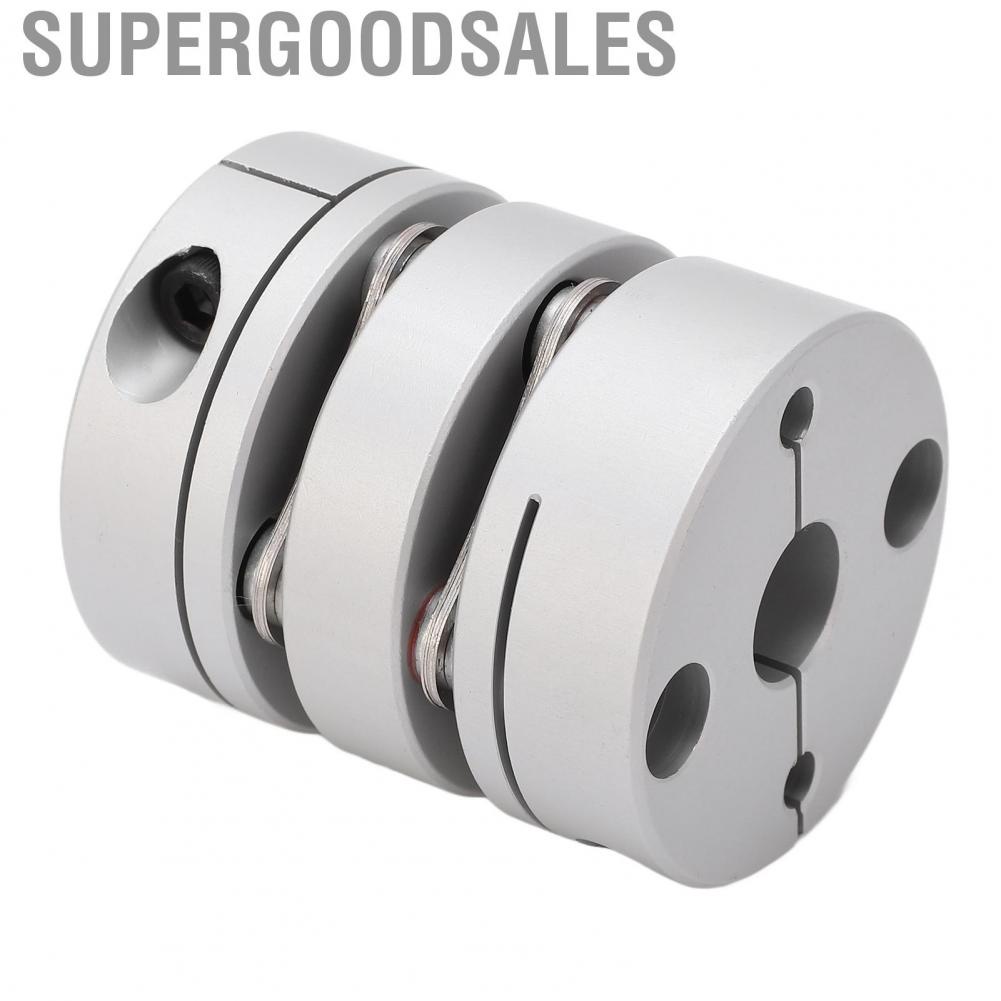

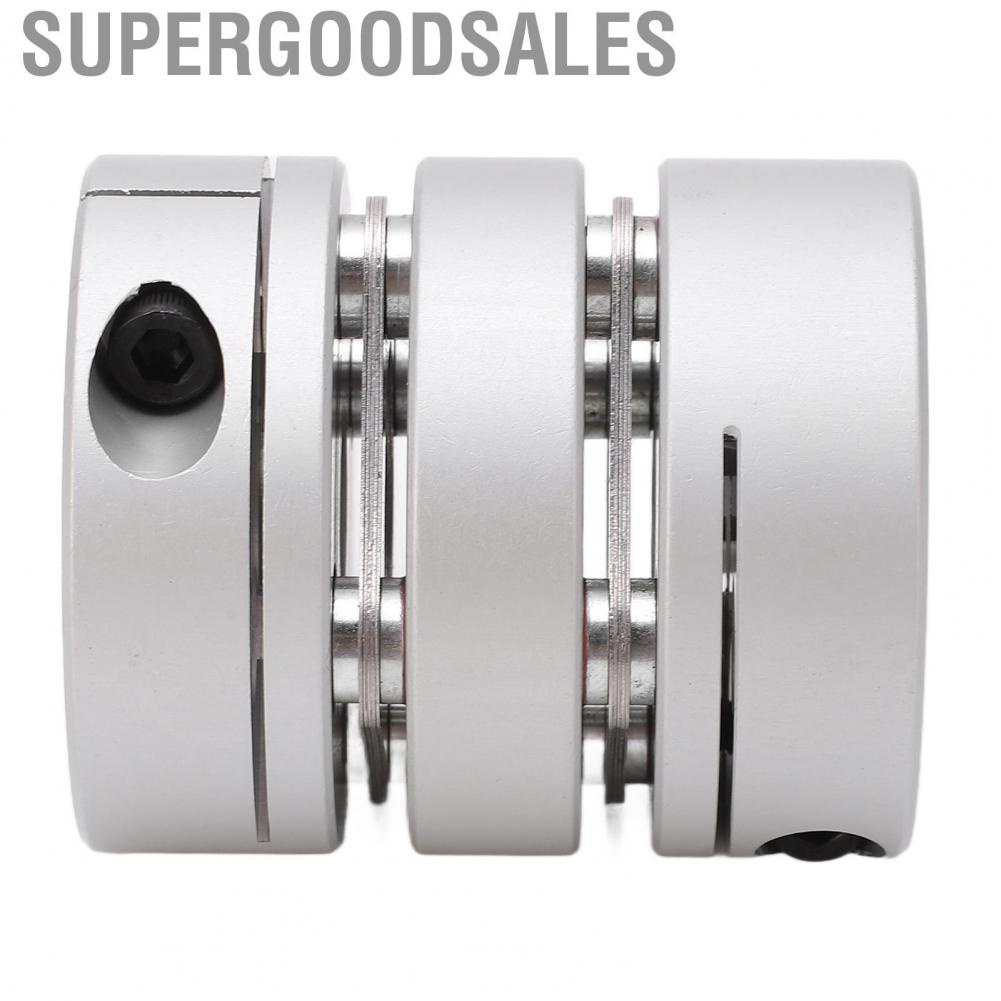

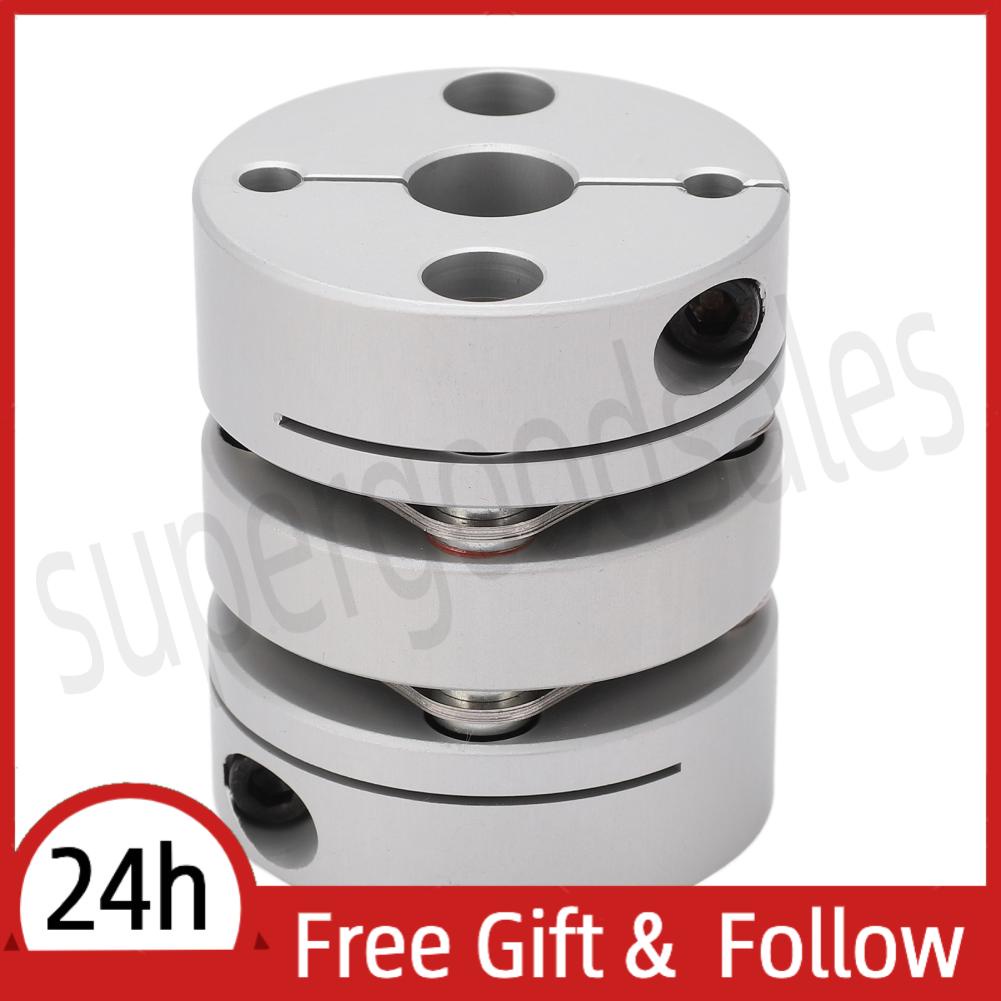

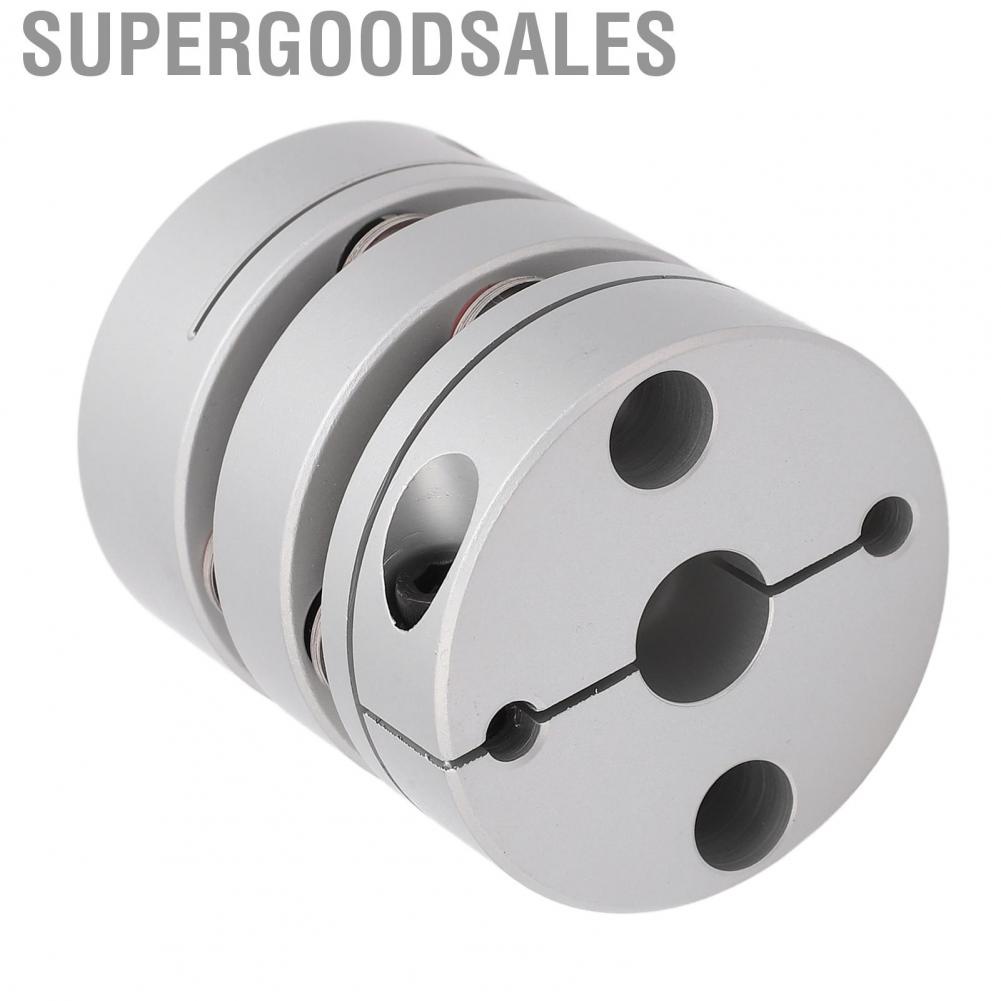

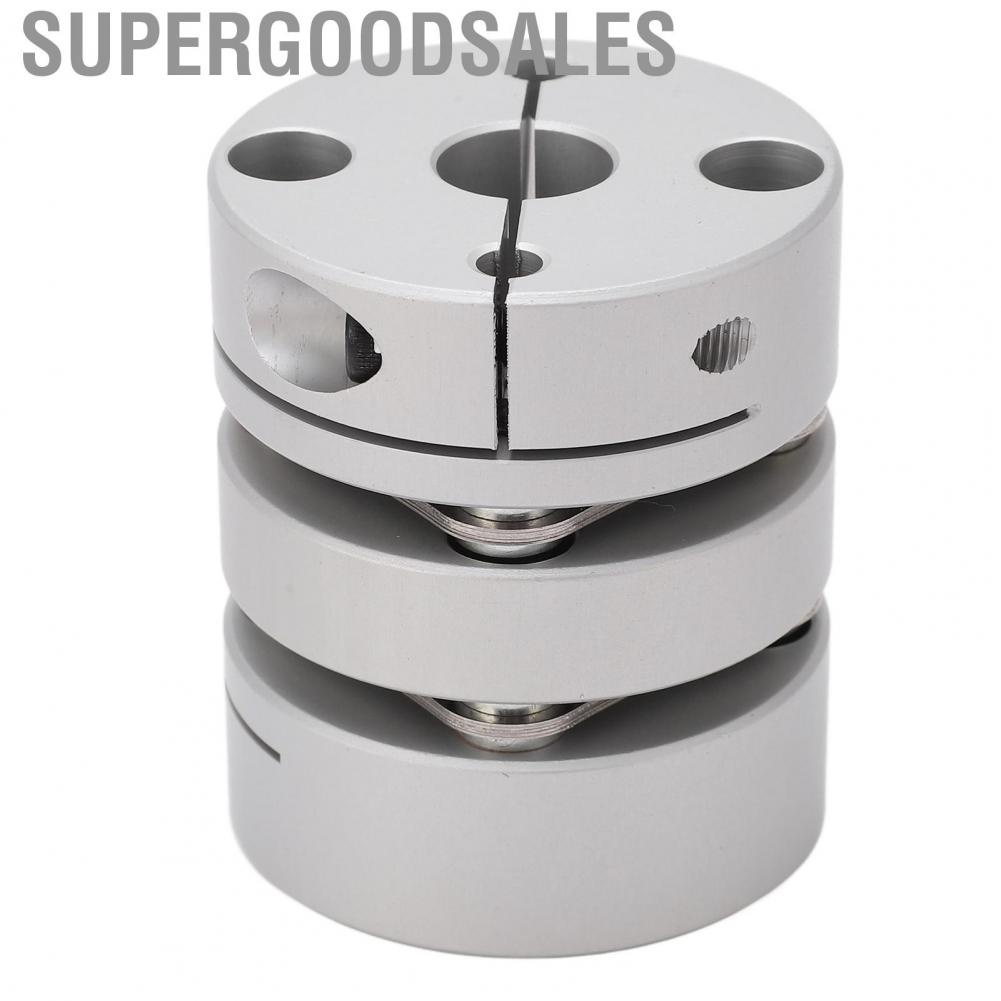

Supergoodsales Shaft Coupling Double Diaphragm Mount For Encoder

Detail Supergoodsales Shaft Coupling Double Diaphragm Mount For Encoder

--------------☀Welcome to Supergoodsales☀-------------
✔Good Quality✔Available✔Lowest Price
✈Shipping from oversea,items will arrive your home in 1-2 week.
⏩If you follow us and screenshot to us, you will have a free gift.
❀Please Enjoy Your Shopping Time↖(^ω^)↗
1. Firm Connection: This coupling adopts the method of on installation, which can be firmly connected to the shaft, adapting to the angle and parallel deviation.
2. Stainless Steel Disc: The disc of this coupling is made of stainless steel, which is rust free, high strength and long service life.
3. Aluminum Alloy Wheel Hub: The aluminum alloy wheel hub of the coupling is very light in weight, which greatly reduces the self weight of the coupling and is convenient to use.
4. Perfect Replacement: This coupling can definitely be a good replacement product on your machine, giving you an experience beyond the original.
5. Wide Application: Couplings are suitable for connecting servo motors, stepper motors, encoders, screw drives, machine tool platforms, etc.

Specification:
Item Type: Double Diaphragm Coupling
Material: Aluminum alloy and stainless steel
Outer Diameter: Approx. 54mm / 2.13in
Shaft Diameter:
Maximum: Approx. 15mm / 0.59in
Minimum: Approx. 14mm / 0.55in
Axial Displacement: ±0.65K²a
Eccentricity: 0.26Kr
Angular: 2.2a
Static: 1100Nm/rad
Radial: 20000Nm/rad
Rated Torsion: 25Nm
Maximum Torsion: 50Nm

Package List:
1 x Double Diaphragm Coupling

Note:
Pay attention to operation
