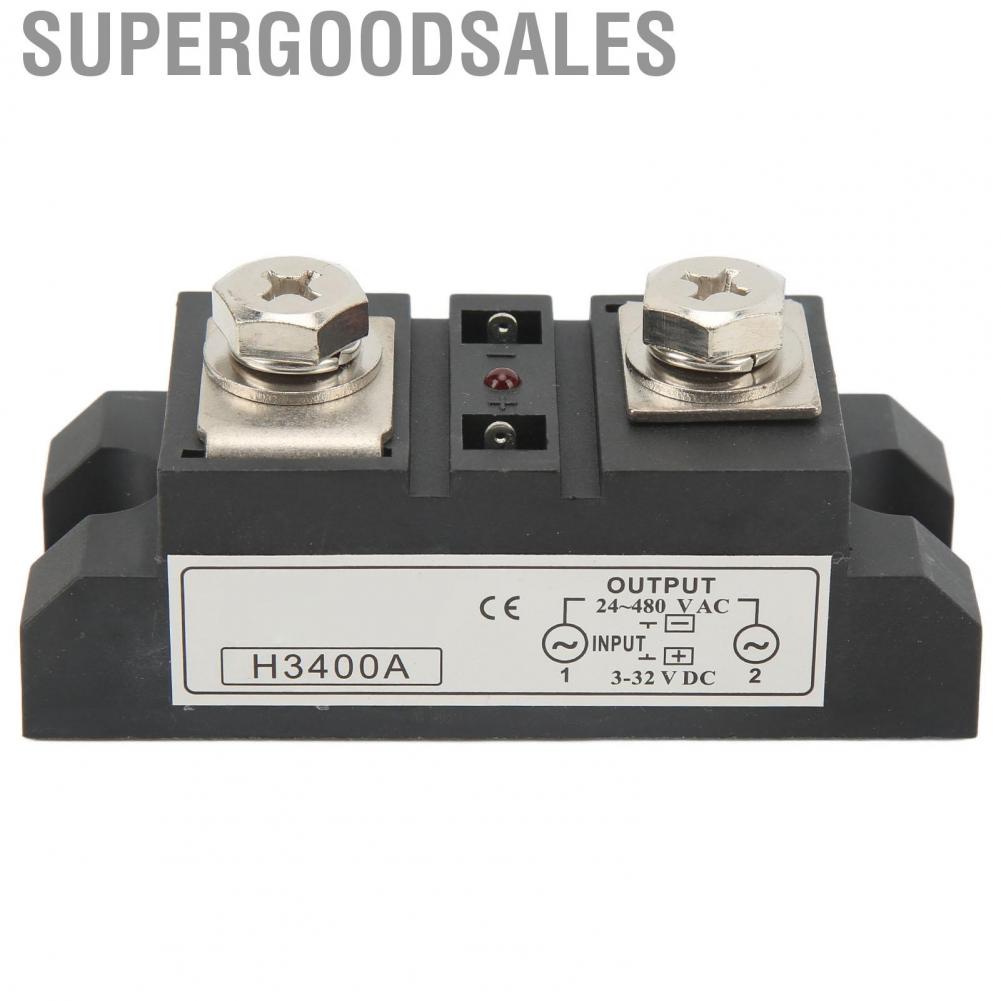

Supergoodsales Industrial State Relay ABS Housing With DC 3-32V To AC 24-480V

Detail Supergoodsales Industrial State Relay ABS Housing With DC 3-32V To AC 24-480V

--------------☀Welcome to Supergoodsales☀-------------
✔Good Quality✔Available✔Lowest Price
✈Shipping from oversea,items will arrive your home in 1-2 week.
⏩If you follow us and screenshot to us, you will have a free gift.
❀Please Enjoy Your Shopping Time↖(^ω^)↗
1. INTELLIGENT : The relay operates stably and has strong overcurrent. The isolation between the control terminal and the load terminal is realized by an isolator.
2. RED COPPER BOTTOM : The relay adopts red copper base , the surface is flat, the heat dissipation is fast, and it has the function of overheating protection.
3. SAFE USAGE: There is no need for internal mechanical contact when the relay is running, no sparks are generated, low noise, and it is safer and more secure to use.
4. ABS MATERIAL: The relay is made of ABS material specially used for industrial electric heating, which is environmentally friendly and safe.
5. WIDE APPLICATION: Relays can be widely used in aerospace, ships, household appliances, machine tools, communications, automobiles, mining, automation control and other fields.

Specification:
Item Type: Industrial Solid State Relay
Material: ABS, red copper
Model: H3400A
Load Current: 400A
On Off Time: ≤10ms
Input Voltage: 3-32V DC
Output Voltage: 24-480V AC
Ambient Temperature: -30℃-70℃
Off State Leakage Current: ≤5mA
Placement Method: Bolt fixing
Work Indication:
Control Mode: DC to AC

Package List:
1 x Industrial Solid State Relay2 x Power Cable

Note:
How to calculate current:
Equipment power ÷ voltage = current
Current ÷ coefficient = select solid state current
The factor depends on the load type of the equipment you are bringing
Resistive load: 60%
Inductive load: 30%
For example: a rated at 1500W, the is an inductive load, then the formula: 1500W÷220V=6.8; 6.8÷0.3=22A, we need to choose to buy a 25A solid state relay.
