1. FOR DC : The can be used for speed regulation and dimming of brushed in DC circuits, with high efficiency and good reliability.
2. HIGH PERFORMANCE: PWM control DC speed regulator, support forward and reverse rotation, with high efficiency, low torsion and low heating.
3. GOOD STABILITY: Using excellent electronic components, this controller module is convenient and durable, with stable performance and easy to operate.
4. WIDE USE RANGE: The board has knob for easy adjustment, and the input voltage range is DC12‑55V, which is suitable for a wide range of applications.

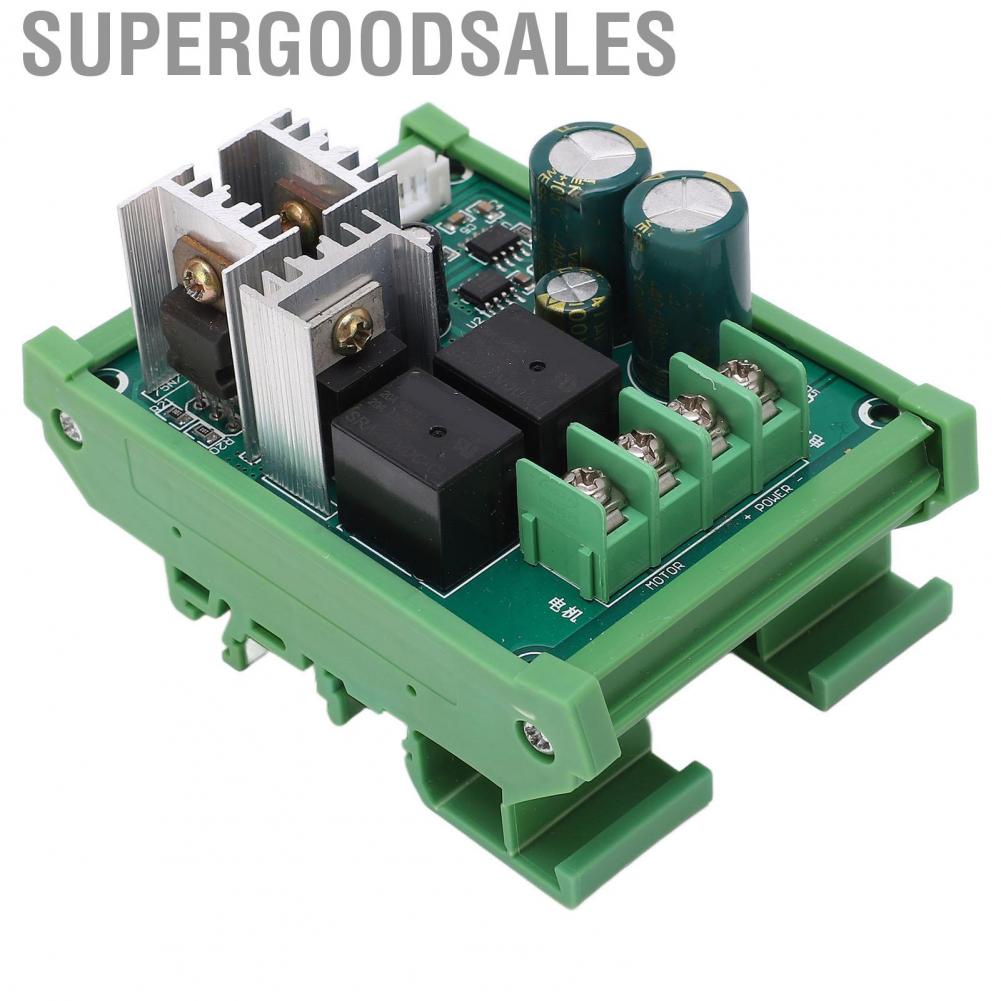

5. DIN RAIL MOUNT: The speed controller has a compact structure and adopts the DIN rail installation method, simple and convenient, save a lot of space.

Specification:
Item Type: DC Controller
Material: PCB, aluminum alloy, ABS
Input Voltage: DC12-55V
Output Voltage: Linear under load
Output Current: 0-20A (within 10A for long term use, pay attention to keep the module unobstructed for heat dissipation)
Speed Regulation Type: PWM regulation
Speed Regulation Mode: Potentiometer (linear)
Speed Range: 0-100%
Control Frequency: 25KHZ

Package List:
1 x DC Controller

Note:
Do not use overload.
