Supergoodsales Electric Speed Controller Dual Drive Robot

Detail Supergoodsales Electric Speed Controller Dual Drive Robot

--------------☀Welcome to Supergoodsales☀-------------
✔Good Quality✔Available✔Lowest Price
✈Shipping from oversea,items will arrive your home in 1-2 week.
⏩If you follow us and screenshot to us, you will have a free gift.
❀Please Enjoy Your Shopping Time↖(^ω^)↗
1. Real Time Analysis: This electric speed controller supports real time data reading and analysis through the USB port, including voltage, current, etc.
2. Good Heat Dissipation: Using aluminum alloy heat sink, increase heat dissipation effect, prolongs the service life.
3. Update Support: Support online firmware update through USB port, use the host software to change the settings and save on the ESC.
4. Large Current MOS Tube: Using 12 NVMFS5C612NL high current MOS tubes, has good over current stability, with over temperature protection.
5. Multi Function: The electric speed controller supports current, duty cycle, speed and position control, has good practicality.

Specification:
Item Type: Electric Speed Controller
Material: Aluminum alloy
Voltage: 14-60V (4-12s safe), the peak voltage should not exceed 60V
Continuous Current: Single 70A, dual 140A
Pulse Current: Single 200A, dual 400A
EPRM: 150000
Cable: 12AWG
Power Cable: 14AWG
Method: PPM, ADC, NRF, UART, SPI, IIC
Port: USB, CAN, UART
Supported Sensors: ABI, HALL, AS5047, AS5048A
Control Mode: Support current, duty cycle, speed, position control mode

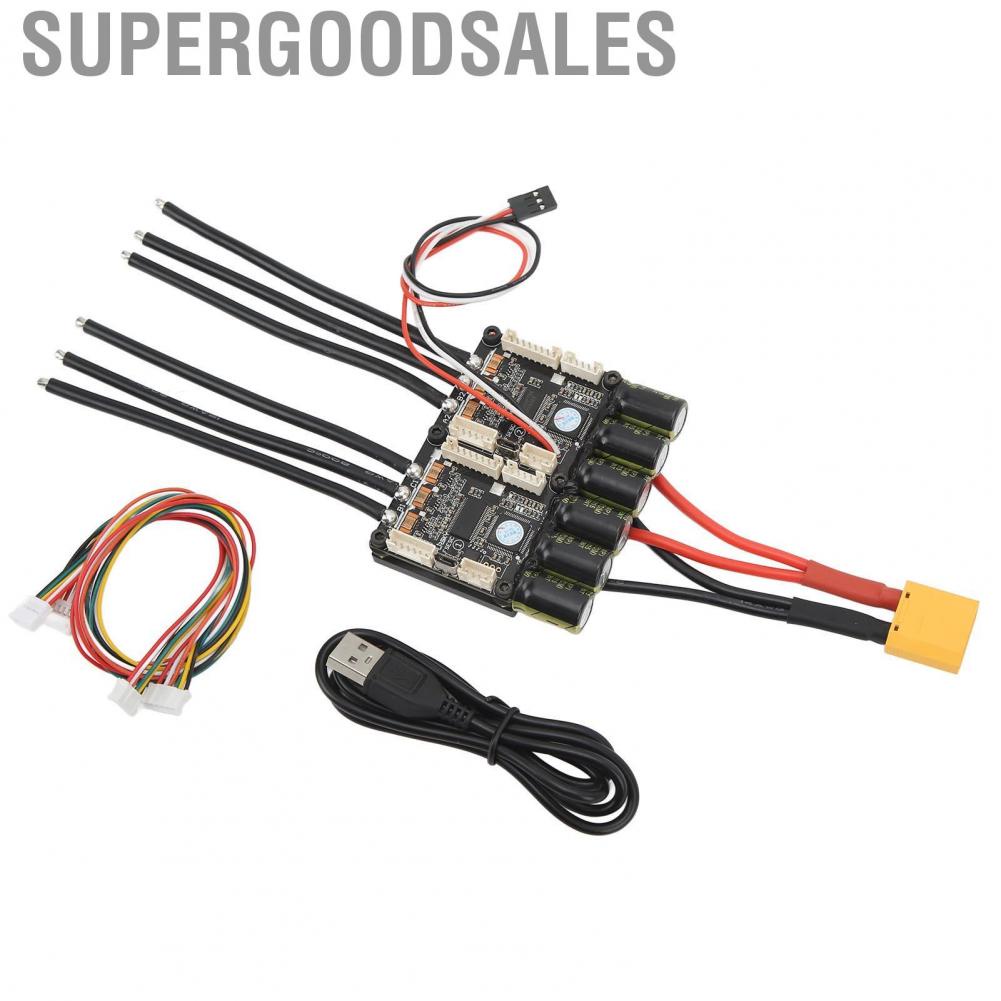

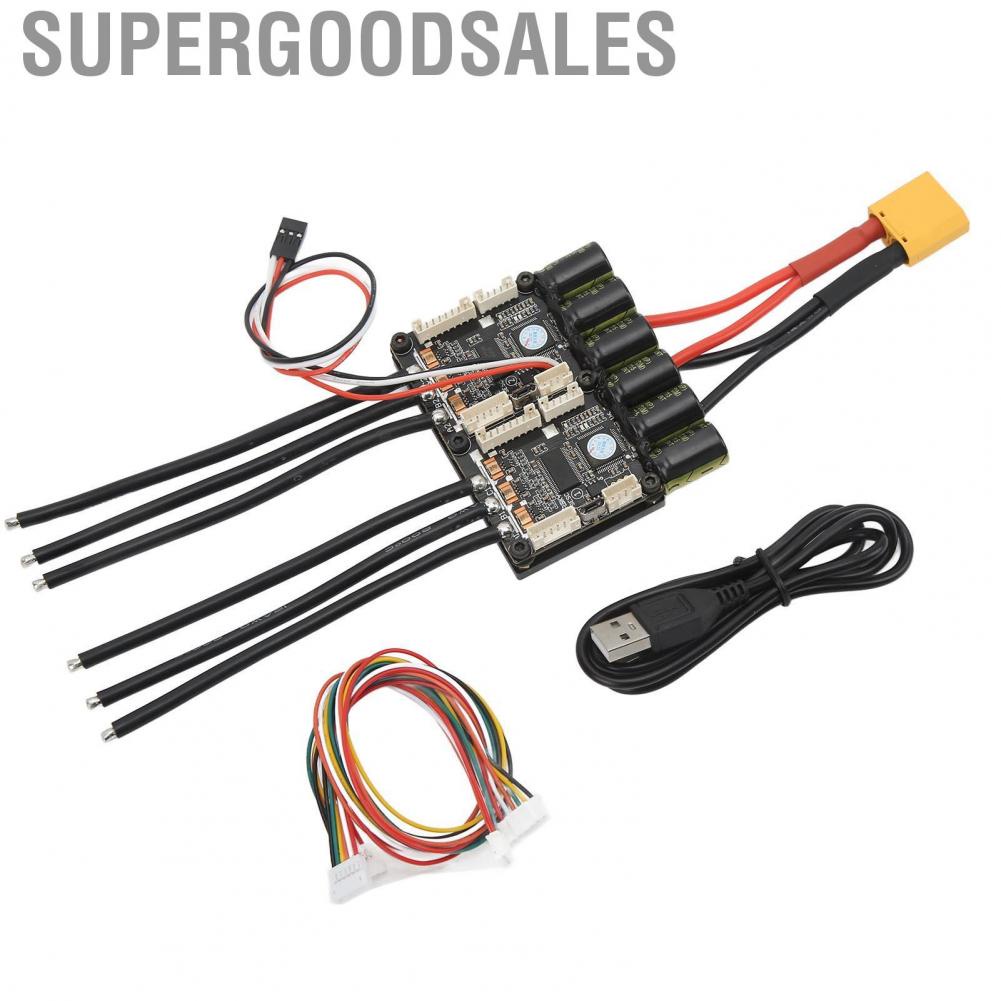

Package List:
1 x

Electric Speed Controller1 x Data Cable
2 x Wire Set
1 x English Manual

Note:
Please read the manual carefully before use, understand the wiring diagram, and avoid wrong wiring.
