Detail Supergoodsales Electric Bicycle Controller 6 Layer PCB Prevent Scratches Electronic Speed Safe with Aluminum Anodized Heat Sink for Balance Car

--------------☀Welcome to Supergoodsales☀-------------
✔Good Quality✔Available✔Lowest Price
✈Shipping from oversea,items will arrive your home in 1-2 week.
⏩If you follow us and screenshot to us, you will have a free gift.
❀Please Enjoy Your Shopping Time↖(^ω^)↗
1. ANODIZING HEAT DISSIPATION: Using aviation aluminum alloy heat sink, the appearance and size of the heat sink are determined by rigorous scientific calculation results. The thermal conductive silicone is matched with the heat sink to the heat dissipation performance of the ESC. The surface of the heat sink is anodized to prevent scratches on the surface
2. IMMERSION GOLD THICKENING PROCESS: Designed with 6 layer PCB LAYOUT, and the copper foil thickness of each layer is 30Z. At the same time, the PCB is immersed in gold skylights in key parts to increase the heat dissipation performance and increase the overcurrent process to make the overall effect better
3. EFFICIENT AND SAFE PROTECTION: In order to prevent the power contacts from being burnt and oxidized by electric sparks, effectively protect the electronic components of the integrated circuit from breakdown damage, and avoid sparks that may cause explosions, a spark switch function has been added to the front end of the power supply
4. UPGRADE CHIPS: C37, C39, C40, C41, C43, C44 are all changed to high voltage capacitors 10UF100V, which makes the voltage change of the MOS more stable and the efficiency better. Replaced the LM3671 with a two way MC5219 3.3YM5, upgraded from the original 33V, 600MA to 500MA x 2(1A) output, better power supply for peripherals
5. SUPPORT MODULE: Connect with IMU module through IIC interface, support balance car function, support MPU9250, MPU9150, MPU6050, LSM6DS3, BMI160 and other unit modules

Specification:
Item Type: Electric Speed Controller
Material: PCB, aluminum alloy
Input Voltage: 14-60V (safe for 4-12s), the peak voltage should not exceed 60V
Continuous Current: 70A
Instantaneous Current: 200A
ERPM: 150000
Port: USB, CAN, UART
Method: PPM, ADC, NRF, UART, SPI, IIC
Supported Sensors: ABI, HALL, AS5047, AS5048A
Cable: 12AWG
Mode: DC, BLDC, FOC
Application: Robotic arm, robot, battle robot, DY off road vehicle

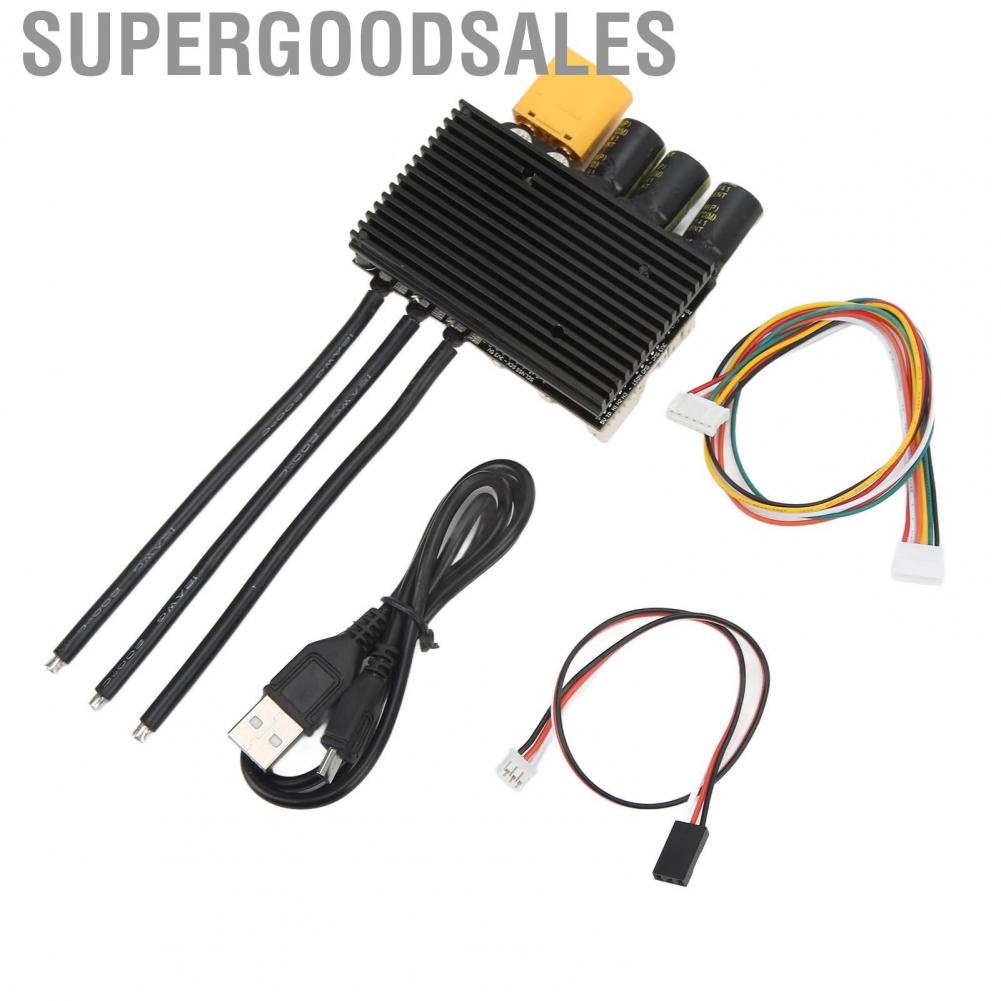

Package List:
1 x Controller
1 x PPM Line
1 x Hall Line 6pin Port
1 x Data Cable
1 x User Manual
