Detail Super MINI ELM327 Bluetooth OBD2 V2.1 Automotive Test Tool - OMTHP9BL Blue

Bluetooth ELM327 is the newly developed wireless scan tool. It supports all OBD-II protocols Works with all OBD-II compliant vehicles Wireless (Bluetooth) Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database). Clear trouble codes and turn off the MIL.

MODEL NAME: ELM327 OBD2 BLUETOOTH

TYPE: CODE READERS & SCAN TOOLS

OUTPUT PROTOCOL: BLUETOOTH

COLOR: BLACK & WHITE

MATERIAL : PLASTIC

VOLTAGE: 12V

CURRENT: 45MA

WAVE FREQUENCY: 38400HZ

APPLICABLE SCOPE: 5-10M / 16.4-32.8FT

ITEM SIZE: 4.8 * 2.5 * 3.5CM / 1.89 * 0.98 * 1.37IN

ITEM WEIGHT: 23G / 0.81OZ

PACKAGE SIZE: 8.8 * 8.8 * 4CM / 3.4 * 3.4 * 1.5IN

PACKAGE WEIGHT: 48G / 1.69OZ

FEATURES
Top Features
1.Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).

2.Clear trouble codes and turn off the MIL ("Check Engine" light)

3.Display current sensor data

4.Engine RPM

5.Calculated Load Value

6.Coolant Temperature

7.Fuel System Status

8.Vehicle Speed

9.Short Term Fuel Trim

10.Long Term Fuel Trim

11.Intake Manifold Pressure

12.Timing Advance

13. Intake Air Temperature

14.Air Flow Rate

15.Absolute Throttle Position

16.Oxygen sensor voltages/associated short term fuel trims

17. Fuel System status

18.Fuel Pressure

Display current sensor data, including:
Engine RPM
Calculated Load Value
Coolant Temperature
Fuel System Status
Vehicle Speed
Short Term Fuel Trim
Long Term Fuel Trim
Intake Manifold Pressure
Timing Advance
Intake Air Temperature
Air Flow Rate
Absolute Throttle Position
Oxygen sensor voltages/associated short term fuel trims
Fuel System status
Fuel Pressure
Many others...
Multi-Protocol Support:
Vehicle Coverage: Works on all OBD2 Vehicles.

1. SO9141-3 (5 baud init, 10.4Kbaud)

2. ISO14230-4 (5 baud init, 10.4 Kbaud)

3. ISO15765-4 CAN (11bit ID, 500 Kbaud)

4. ISO15765-4 CAN (29bit ID, 500 Kbaud)

5. ISO15765-4 CAN (11bit ID, 250 Kbaud)

6. ISO15765-4 CAN (29bit ID, 250 Kbaud)

7. KWP2000 5 10.4 Kbaud

Vehicle Coverage:
Works on all OBD2 Vehicles (1996 onwards in USA) and EOBD vehicles ( Petrol cars from 2001 and diesl cars from 2003/2004 in Europe)

PACKAGE CONTENTS:

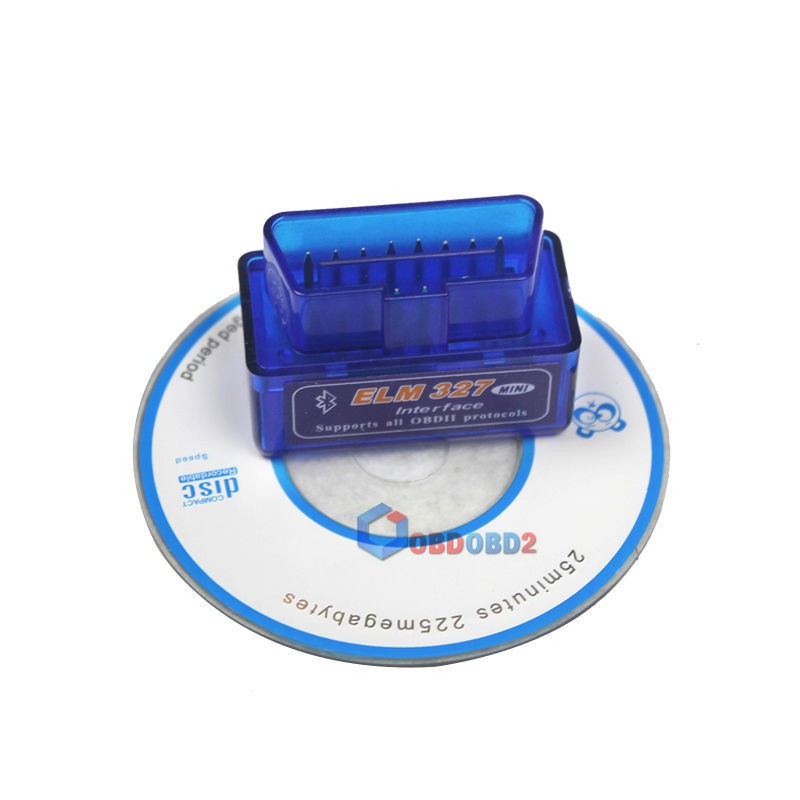

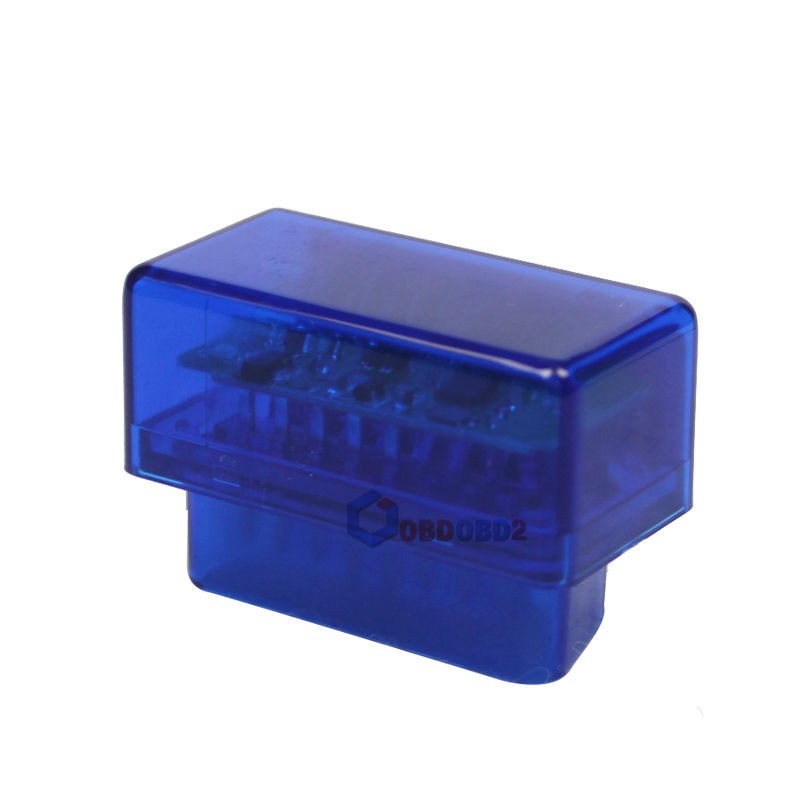

1 x EOBD / OBD2 Bluetooth Diagnostic Interface

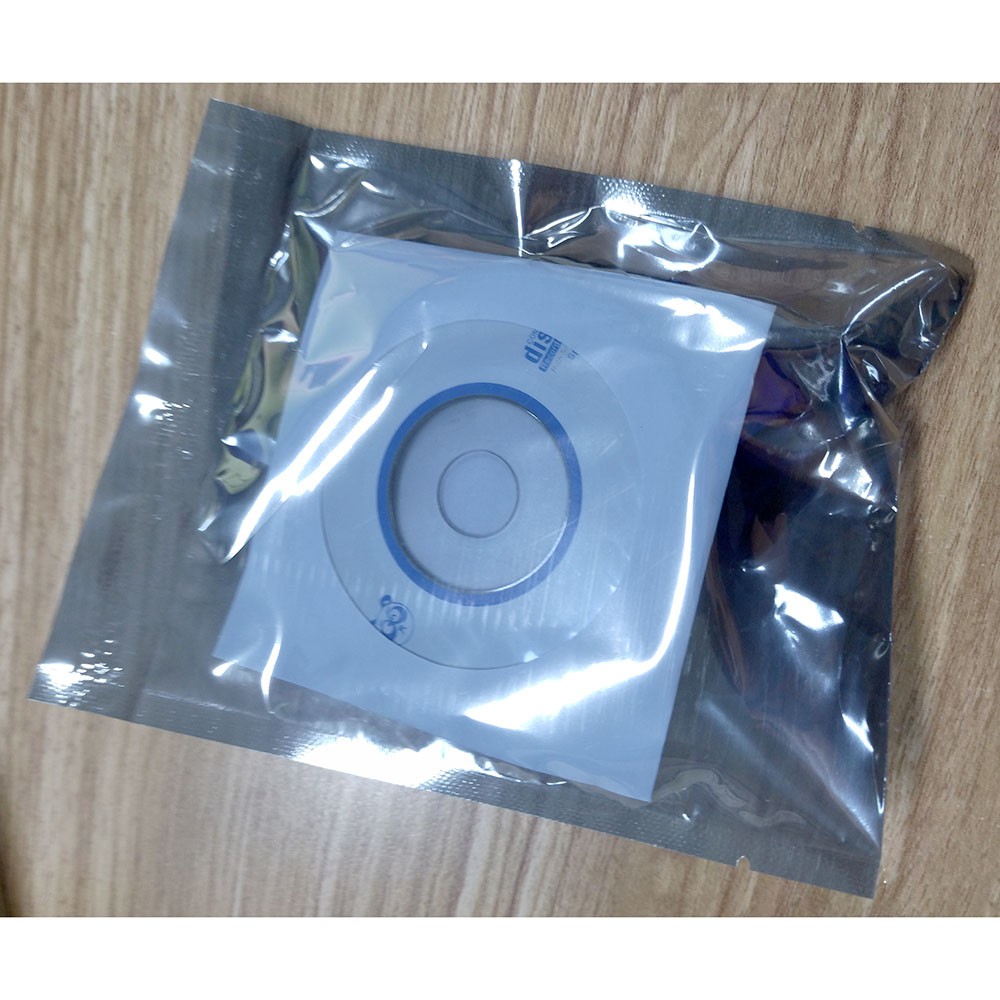

1 x CD Rom
