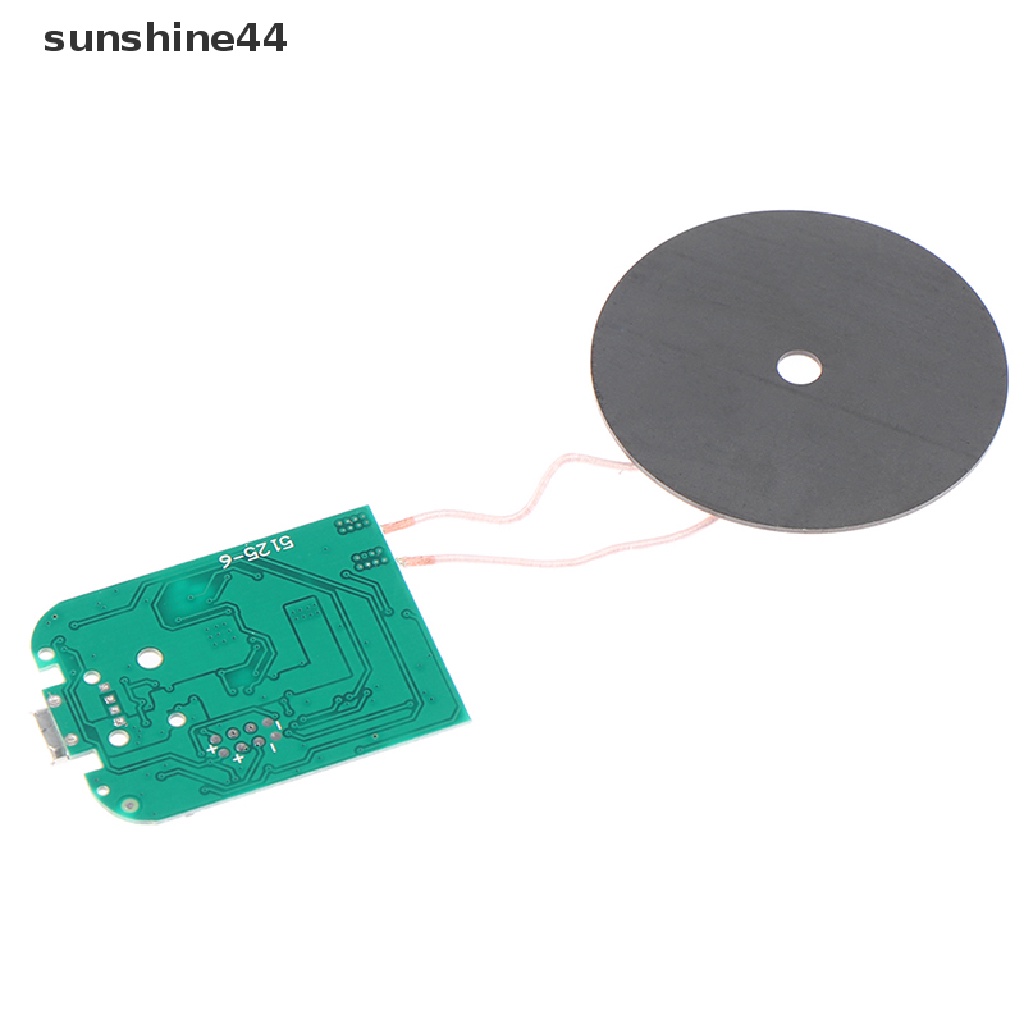

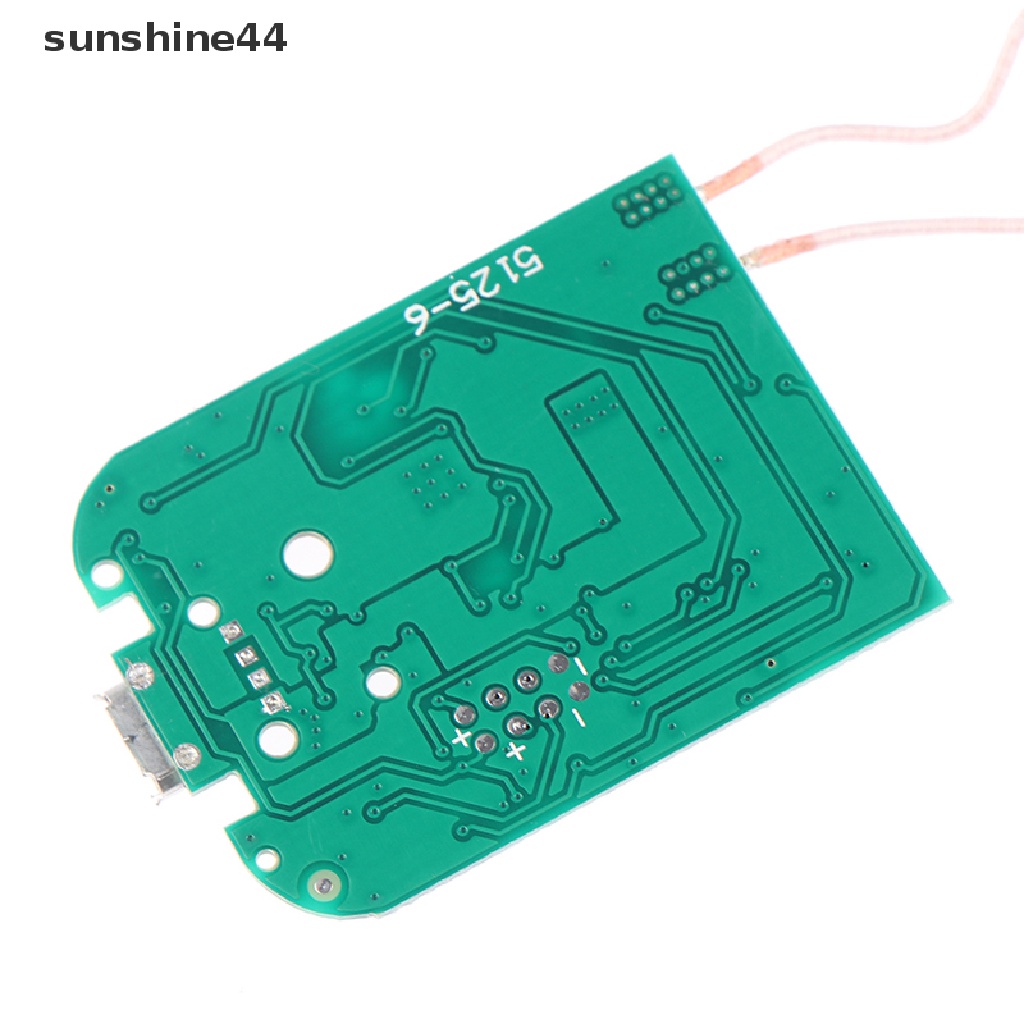

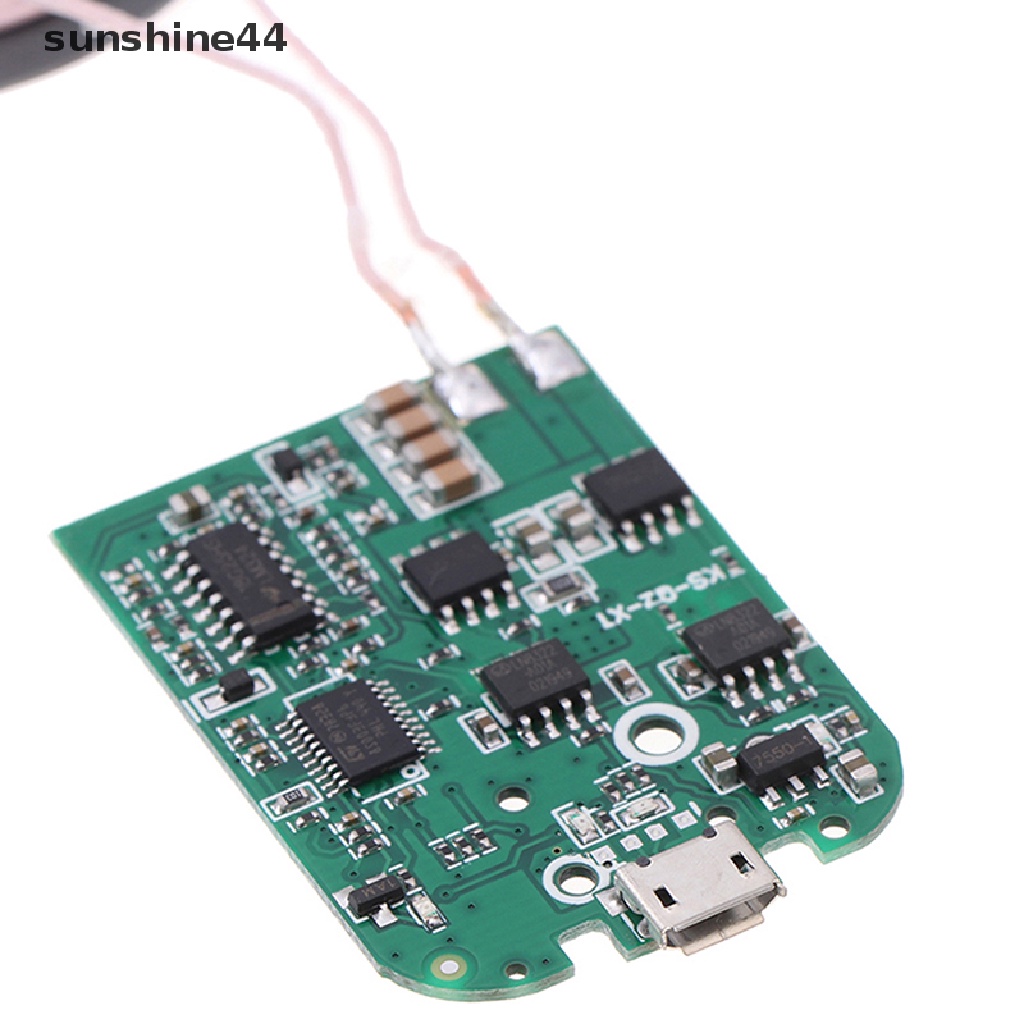

Sunshine 1Pc Modul Papan Sirkuit PCBA Charger Wireless Qi Fast Charging 10W + Coil

Detail Sunshine 1Pc Modul Papan Sirkuit PCBA Charger Wireless Qi Fast Charging 10W + Coil

Specification:
100% brand new and high quality
Input voltage: DC9V/1.5~2A, if the voltage exceeds this range, alarm and stop charging
Output voltage: 9V ± 0.1V,
Charging current: 1200mAh
Charging power: 10W
Interface: Micro USB
Conversion efficiency: more than 73%
Transmission distance: max. 10 mm, recommended receiving and transmitting distance: 2 mm ~ 4 mm
Standby power consumption: the average power consumption is less than 50mw
Over temperature protection: when the temperature is higher than 60 ° during charging, it will automatically stop charging for 1 minute, and recharge after the temperature drops
Over current protection: when the output current is more than 2A during charging, the charging will be stopped automatically to prevent damage to the charger
Executive standard: Qi wireless charging standard
Product certification: CE / FCC, compatible with Qi certification standard

Package included:1 x Wireless Charger Transmitter Module Coil PCBA Circuit Board

Note:
Due to the hand measurement, there have size error about 1cm
Item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated same
