Straight SMA Female Jack PCB Gold plated RF U adapter coaxial konektor

Elektronik > Alat Casting > Straight SMA Female Jack PCB Gold plated RF U adapter coaxial konektor
Tersedia
Periksa harganya...
Lihat tempat menjual
Toko:arduinounoLihat semua produk Handphone & Aksesoris oleh arduinouno
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur
DeskripsiSpesifikasi

Detail Straight SMA Female Jack PCB Gold plated RF U adapter coaxial konektor

Feature:
Gold plated PCB SMA Female Coaxial Connector
SMA female for 1.6mm thick solder edge PCB mount straight RF connector
Specification:
Temp.range: -65～ +165 (PE Cable -～ +85)
Vibration: MIL-STD-202,Method 213
Impedance: 50Ω
Working Voltage: 335V max
Withstand Voltage: 1000V rms
Contact resistance:Center Contact≤3mΩ
Outer Contact≤2mΩ
Insulation resistance:≥5000 mΩ
Insertion loss: ≥0.15 dB/6GHz
VSWR Straight: ≤1.10+0.002f≤1.05+0.001f
Right angle:≤1.20+0.00≤1.10+0.001f
Durability(mating): ≥ 500 (cycles)

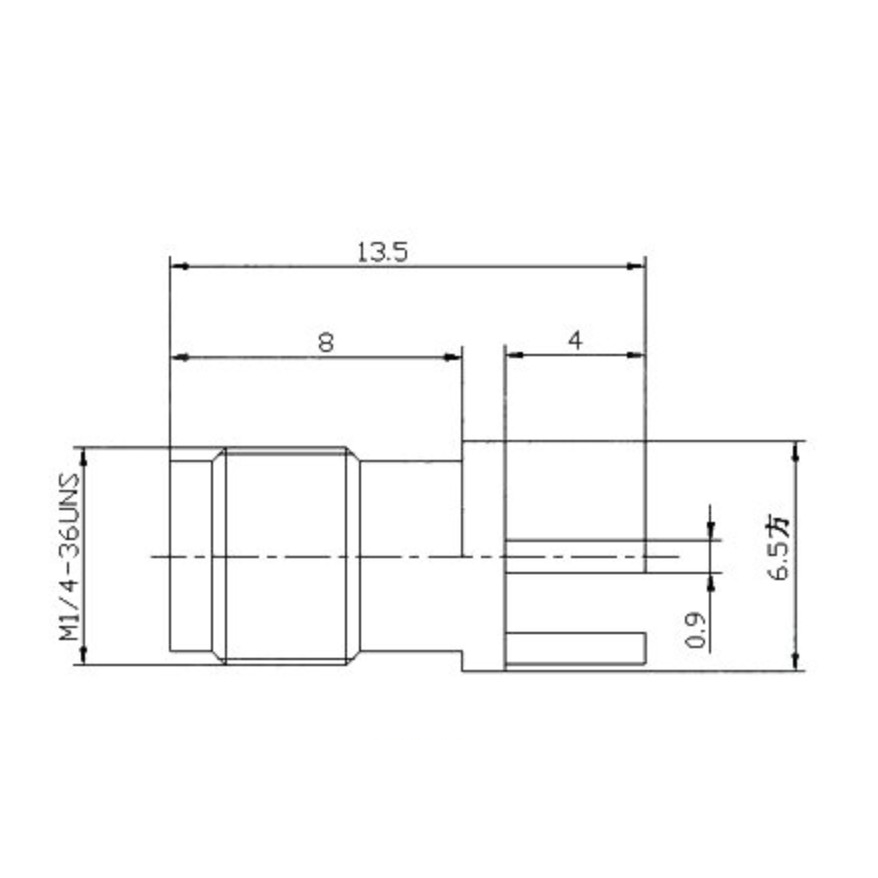

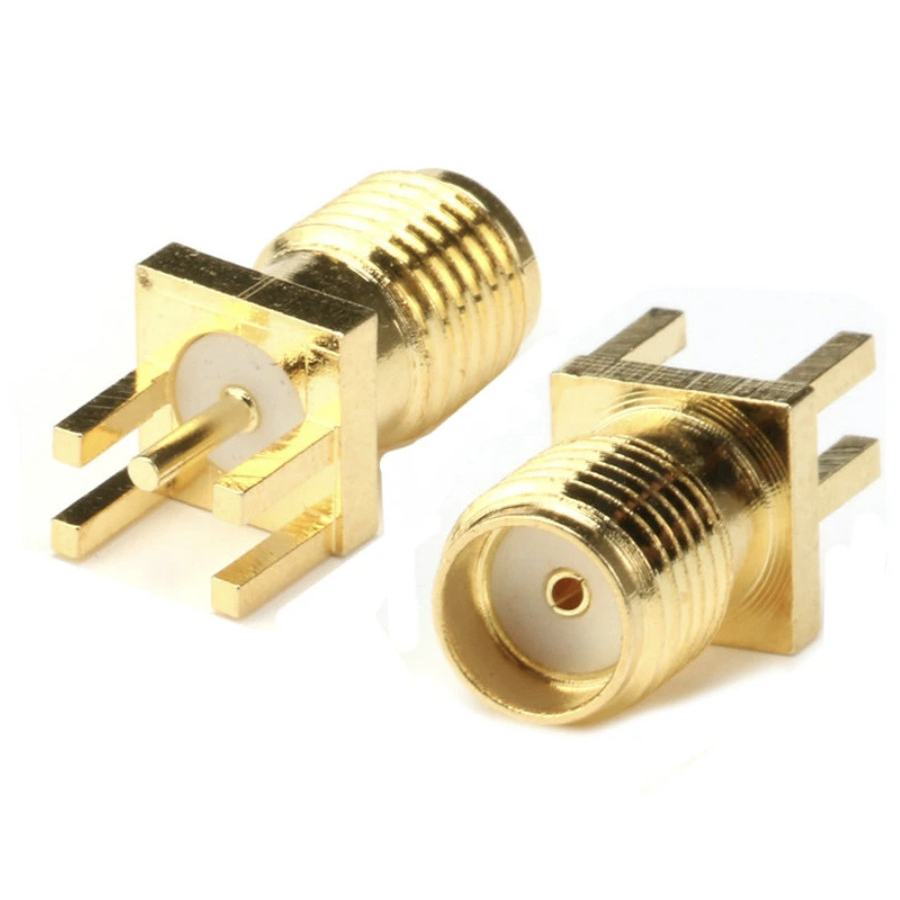

Gambar produk

Straight SMA Female Jack PCB Gold plated RF U adapter coaxial konektor
Straight SMA Female Jack PCB Gold plated RF U adapter coaxial konektor
Straight SMA Female Jack PCB Gold plated RF U adapter coaxial konektor
Straight SMA Female Jack PCB Gold plated RF U adapter coaxial konektor
