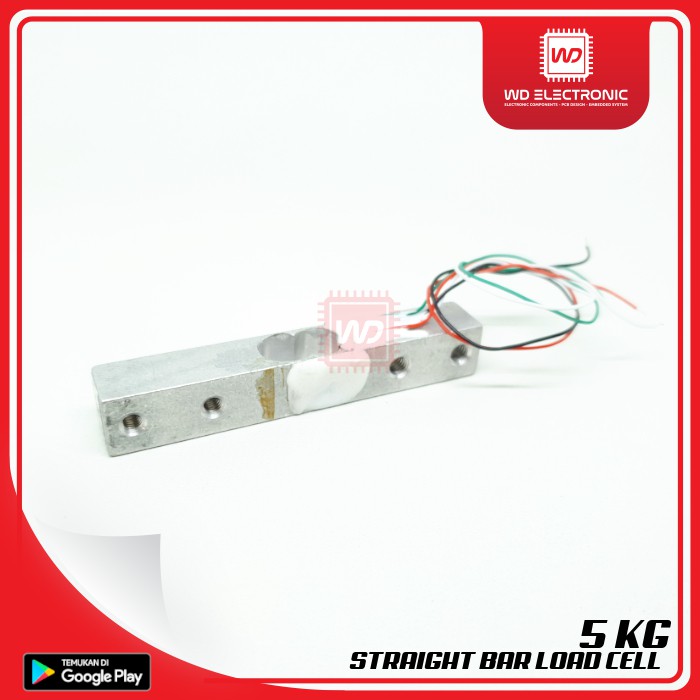

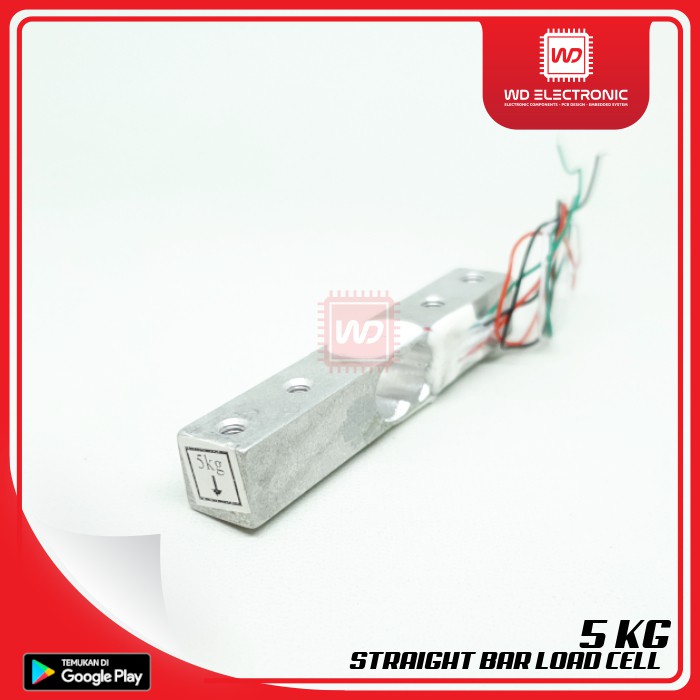

STRAIGHT BAR LOAD CELL 5KG LOAD CELL 5 KG

Detail STRAIGHT BAR LOAD CELL 5KG LOAD CELL 5 KG

This 5KG Weight Sensor sometimes called a load cell or strain gauge can translate up to 5KG of pressure (force) into an electrical signal. Load cells are designed to measure a specific force, and ignore other forces being applied. The electrical signal output by the load cell is very small and requires a load cell amplifier such as a HX711 load cell amplifier, or Sparkfun Openscale.

Each weight senor is made from an aluminum-alloy and is capable of reading a capacity of 5KG and designed to measure force in one direction. They will often measure force in other directions, but the sensor sensitivity will be different, since parts of the load cell operating under compression are now in tension, and vice versa.

SPESIFIKASI :
- Model: YZC-131
- Material: Aluminum
- Dimensions: 7512.712.7mm
- Range: 5kg
- Rated output 1.0 0.1mV / V
- Operating temperature range -20 ~ 65C
- Weight: 28g

KELENGKAPAN :
- 1pcs Straight Bar Load Cell 5Kg

Gambar produk
