Detail STR-W6053N STRW6053S STRW6053 STRW 6053 TO-220F-6 BC51

STRW6053 STRW6053N STRW6053S IC REG PWM CONV AC/DC TO-220F-6 BC51

Features:
TO-220F power package with 30 to 90 W power output
Current Mode PWM control
Built-in Random Switching function, reducing EMI noise,and simplifying EMI filters, and therefore reducing cost
Built-in Slope Compensation function, avoiding subharmonic oscillation
Built-in Auto Standby function (Input Power, PIN < 30 mW at no load)
Normal operation: PWM mode
Light load operation: Standby mode (burst oscillation)
Built-in Audible Noise Suppression function during Standby mode
Built-in Startup Circuit, reducing power consumption in standby operation, and eliminating external components.
Bias-Assist function, improving startup operation,suppressing VCC voltage drop in operation, and allowing use of smaller VCC capacitor
Built-in Leading Edge Blanking function

SPEK:
Output Isolation:Isolated
Internal Switch(s):Yes
Voltage - Breakdown:650V
Voltage - Start Up:15.3V
Voltage - Supply (Vcc/Vdd):8.1 V ~ 32 V
Duty Cycle:0.71
Frequency - Switching:60kHz ~ 74kHz
Power (Watts):90W
Fault Protection:Current Limiting, Over Load, Over Temperature, Over Voltage
Operating Temperature:-20C ~ 115C (TA)
Package / Case:TO-220-7 (Formed Leads) (6 Leads)
Supplier Device Package:TO-220F-6L

Gambar produk

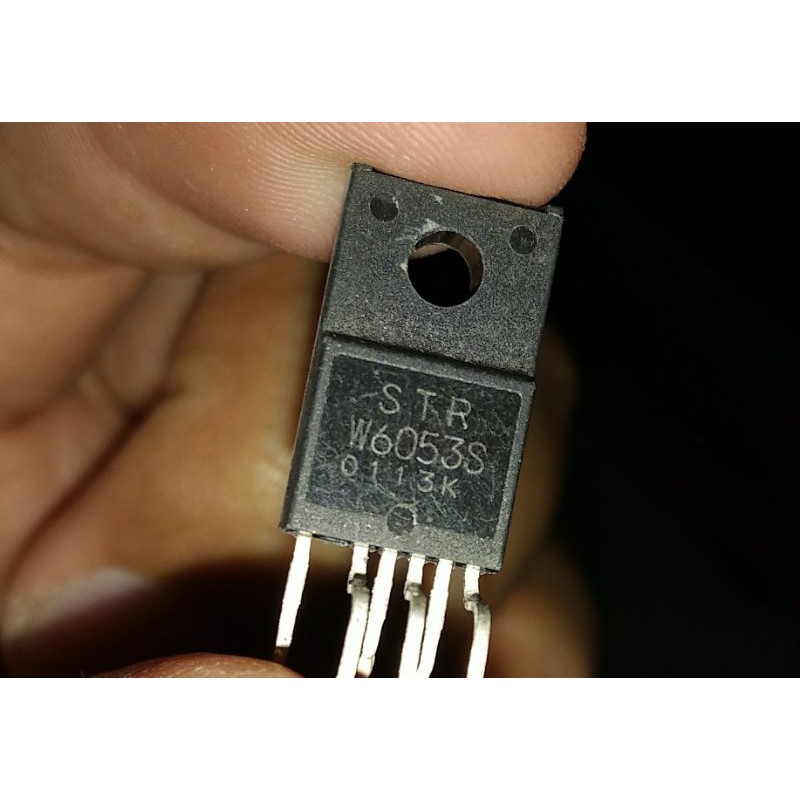

STR-W6053N STRW6053S STRW6053 STRW 6053 TO-220F-6 BC51
