STM32F103C6T6 ARM STM32 Minimum System Development Board Module For Arduino

Detail STM32F103C6T6 ARM STM32 Minimum System Development Board Module For Arduino

Hi #RekanEasyWare ...
EasyWare Part#: EP000584

Note:
- Ini merupakan versi termurah dari STM32 Board.
- Alternatif jika STM32F103C8T6 masih terlalu over budget dengan sedikit mengorbankan spesifikasi.

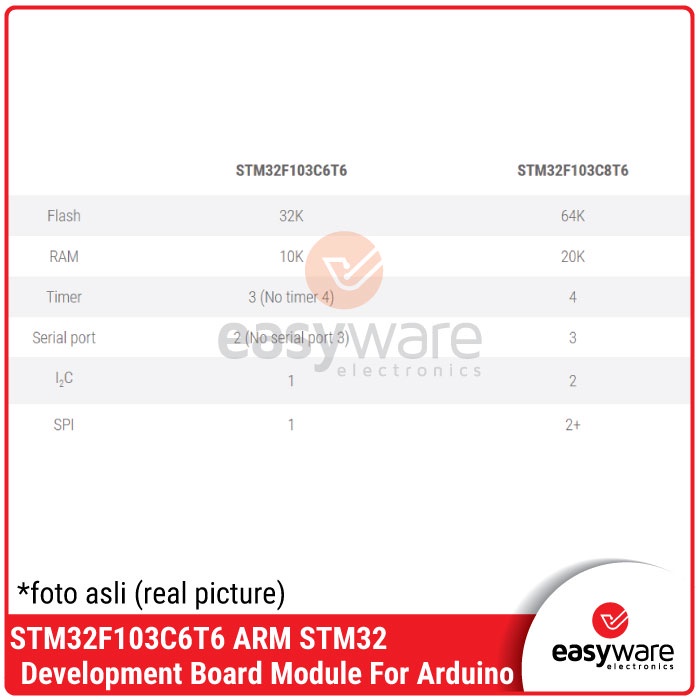

- Perbedaanya ada di slide terakhir.

STM32F103xx performance line family incorporates the high-performance ARM® Cortex™-M3 32-bit RISC core operating at a 72 MHz frequency, high-speed embedded memories, and an extensive range of enhanced I/Os and peripherals connected to two APB buses. All devices offer two 12-bit ADCs, three general purpose 16-bit timers plus one PWM timer, as well as standard and advanced communication interfaces: up to two I2Cs and SPIs, three USARTs, an USB and a CAN. The STM32F103xx low-density performance line family operates from a 2.0 to 3.6 V power supply. It is available in both the –40 to +85 °C temperature range and the –40 to +105 °C extended temperature range. A comprehensive set of power-saving mode allows the design of low-power applications.

Spesifikasi:
- Chip: STM32F103C6T6
- Memory Flash: 32K
- RAM: 10K
- Timer: 3
- Serial port: 2

Kelengkapan:

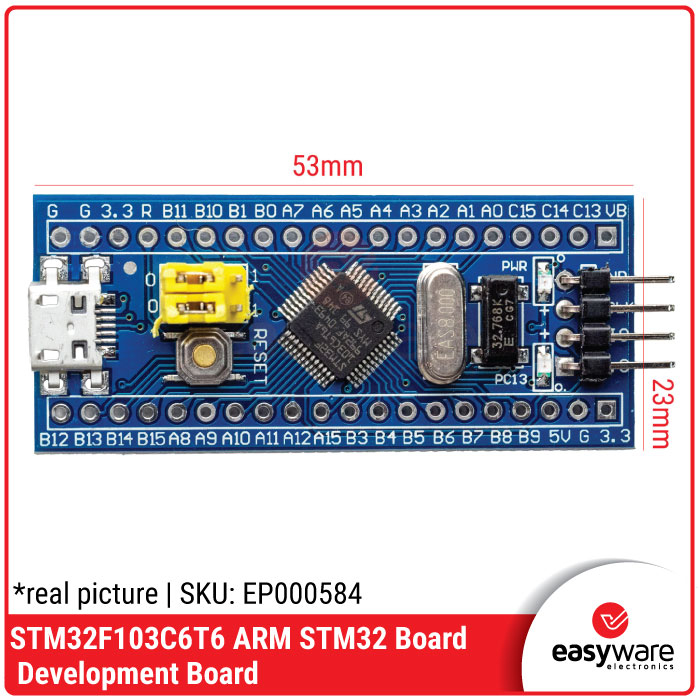

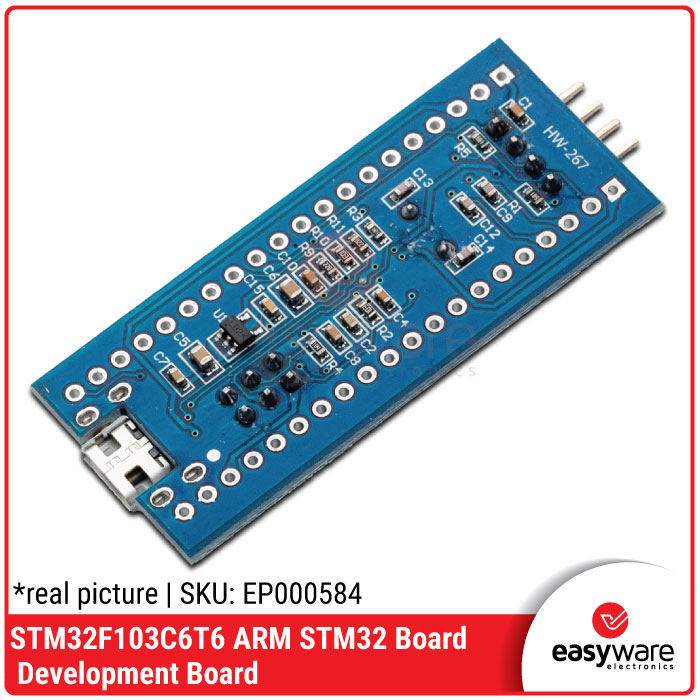

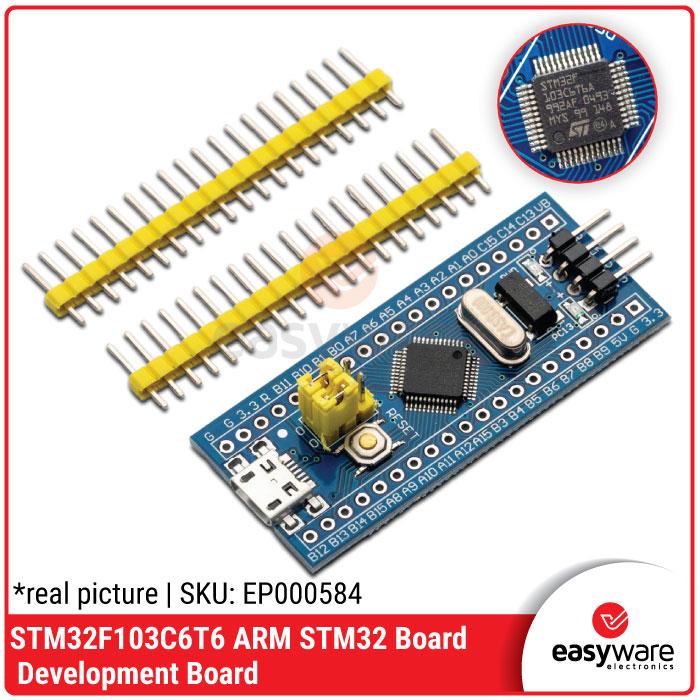

- 1x STM32F103C6T6 ARM STM32 Board (Blue Color)

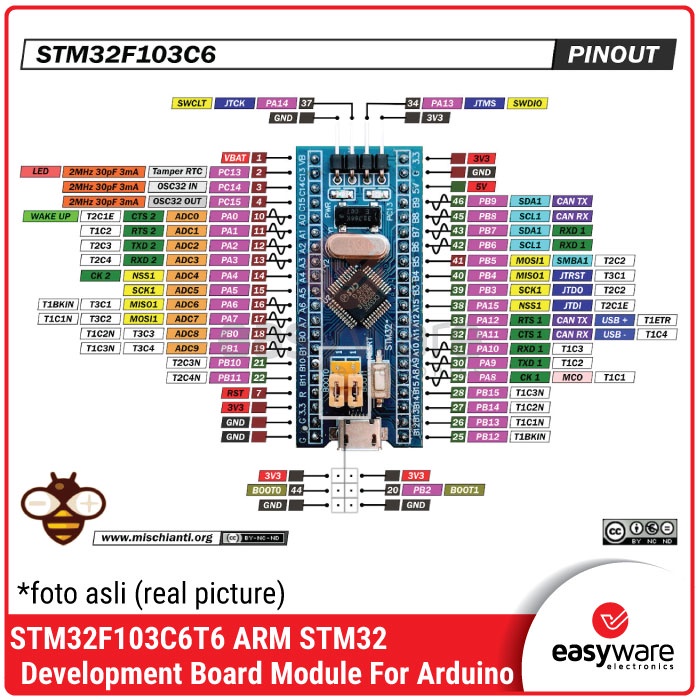

Gambar produk
