Detail Stepping motor standard NEMA 17Brand : MOONTYPE : 17HD4416-01N

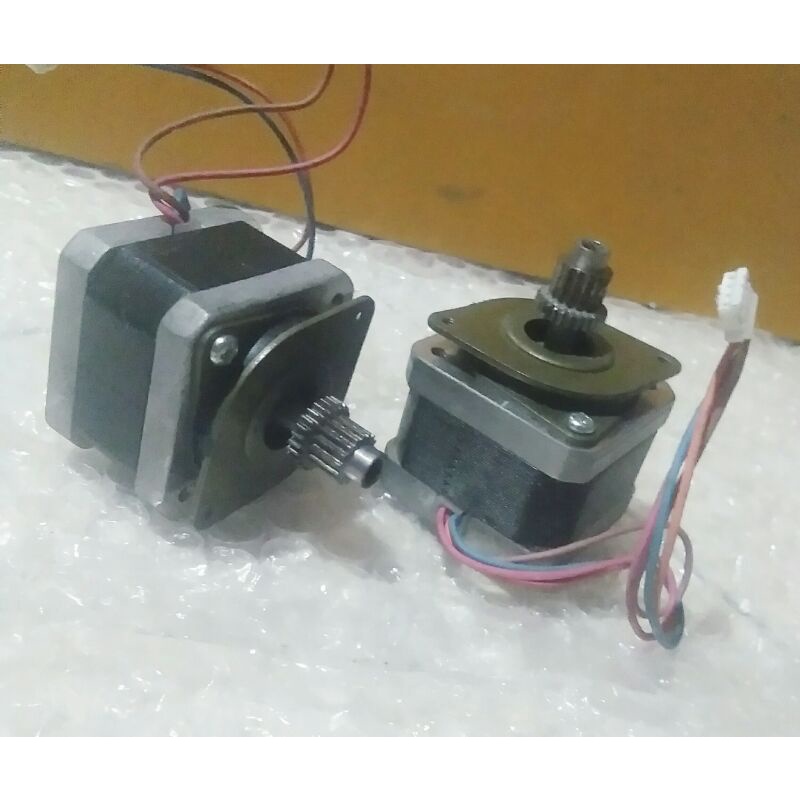

Stepping motor standard NEMA 17
Brand : MOON
TYPE : 17HD4416-01N
- kami pastikan kirim sesuai gambar

Step angel : 1.8
Number of phase: 2
bipolar 4 wiring
Insulation resistance : 100Mmin. (500V DC)
Insulation class : Class B
Rotor inertia : 57g.cm2

Electrical specification
Rated voltage : 3.75 - 6V
Rated current : 1.5A
Resistence per phase : 2.5 ohm
Inductance per phase : 50 mH
Holding torque : 500mN.m
Detent torque : 15mN.m

Dimension :
Mounting standard NEMA-17
Shaft diameter 5mm
Shaft length / Panjang 2.9 cm
Body length 3.5 cm

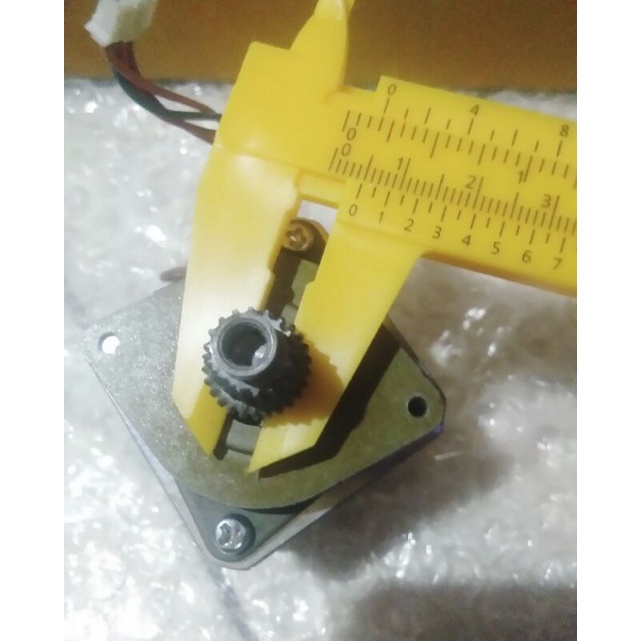

Built in sprocket diameter 1.3 cm
Built in mounting
harga untuk 1pcs
- postingan redy bisa langsung di order
