Detail STEPPERVMOTOR MOONS 17HD1402-02N
*Brand : Moons
*Type : 17HD1402-02N
*Step Angel : 1.8
*Number Of Phase : 2
*Bipolar 4 Wiring
*Insulation Resistance 100Mmin.( 500V Dc )
*Insulation Class : Claas B
*Rotor Intertia : 57g.Cm2
*Electrical Spesification
*Rated Voltage : 3.75 - 6V
*Rated Current : 1.5A
*Resistance Per Phase : 2.5 Ohm
*Inductance Per Phase : 50mH
*Holding Torque : 500mN.m
*Detent 15mN.m
*Dimension :
*Mouting Standard Nema 17
*Shaft Diameter 5mm
*Shaft / Length / Panjang 2.9cm
*Body length 3.5cm

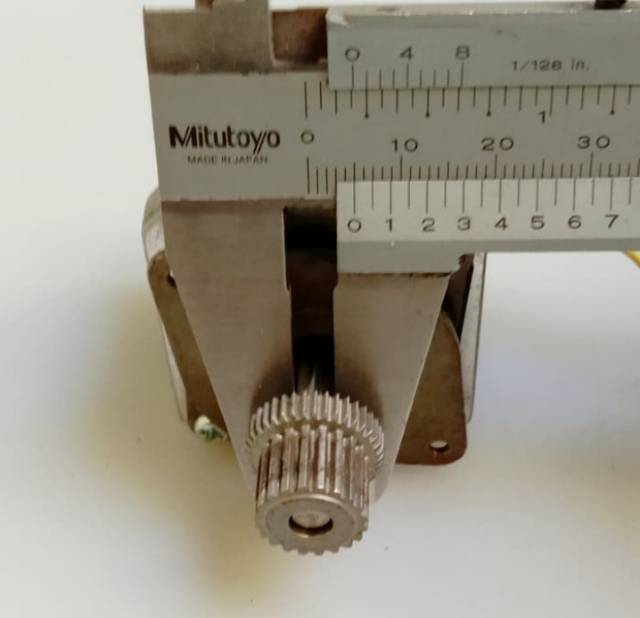

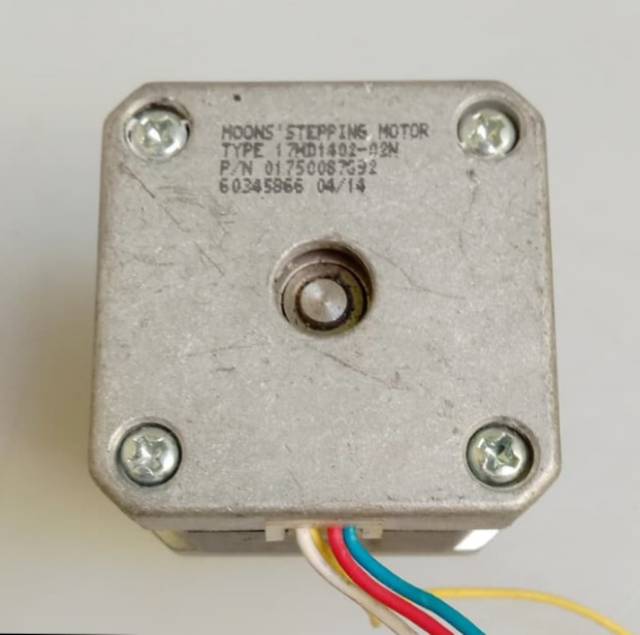

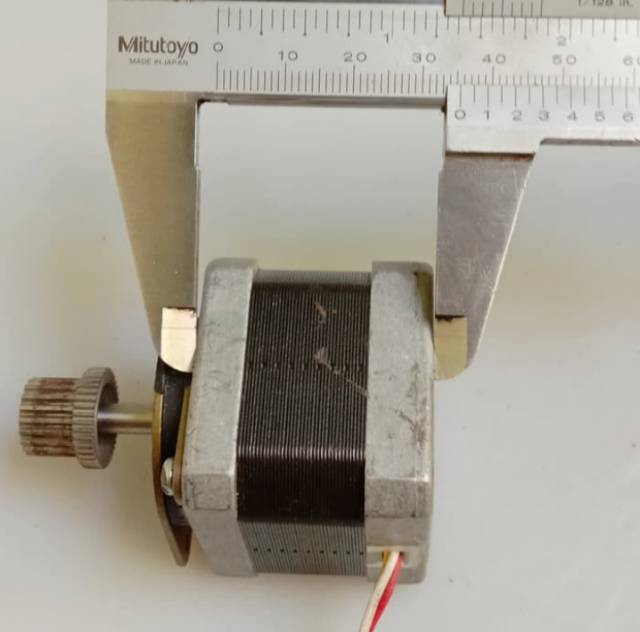

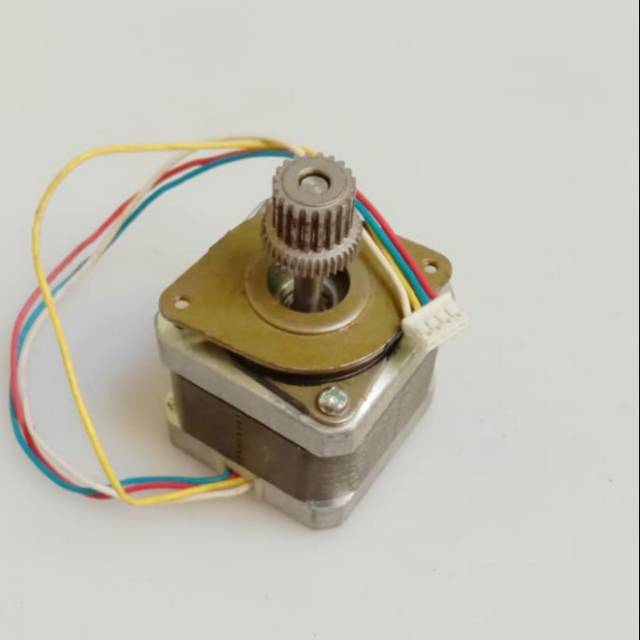

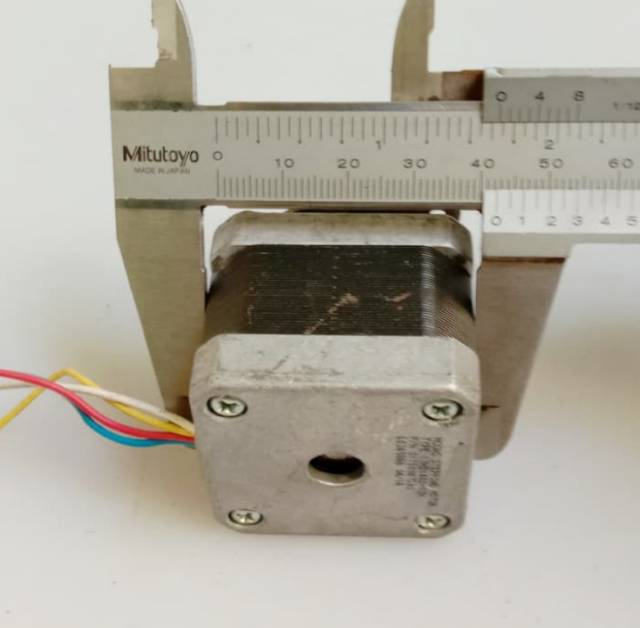

Gambar produk
