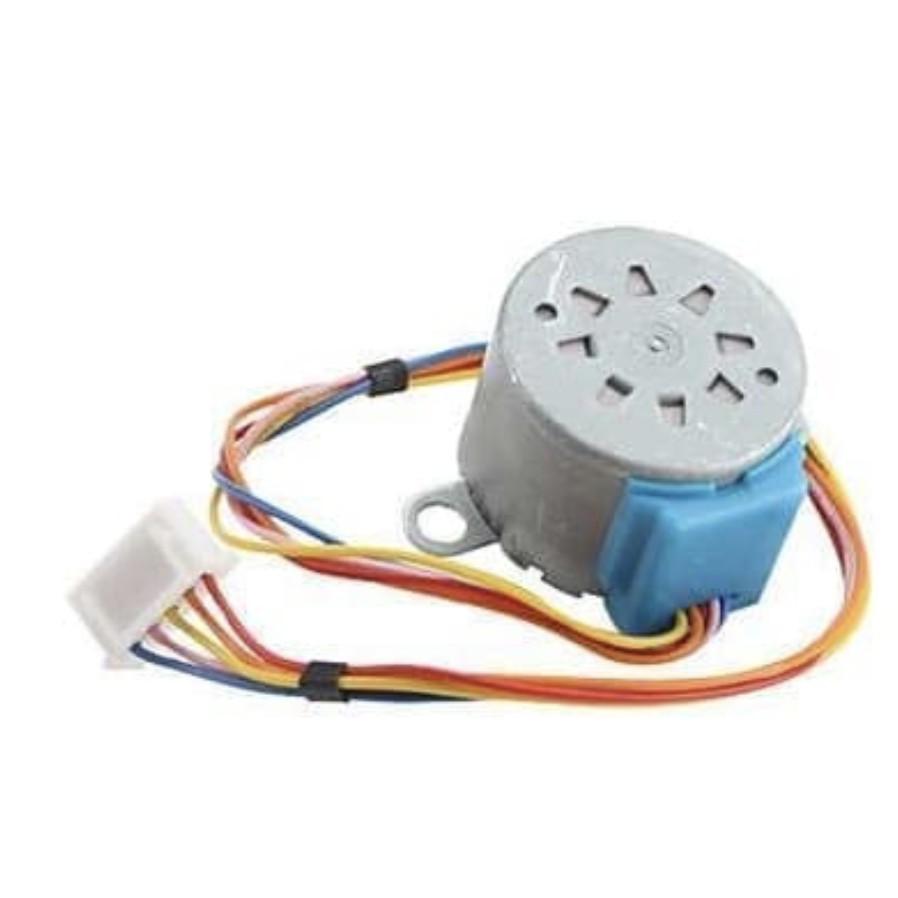

Stepper Motor 12v 4 Phase 5 Wire 28BYJ-48- Gear Step DC Motor 12 volt

Elektronik > Perangkat Audio & Speaker > Kabel & Konverter Audio & Video > Stepper Motor 12v 4 Phase 5 Wire 28BYJ-48- Gear Step DC Motor 12 volt
Tersedia
Periksa harganya...
Lihat tempat menjual
Toko:arduinounoLihat semua produk Audio oleh arduinouno
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur
DeskripsiSpesifikasi

Detail Stepper Motor 12v 4 Phase 5 Wire 28BYJ-48- Gear Step DC Motor 12 volt

- Quantity: 1
- Color: Silver
- Diameter: 28mm
- Voltage: 12V
- No-load pull into the frequency: >600Hz
- Phase: 4
- No-load pull-out frequency: >1000Hz
- Reduction ratio: 1/64
- Pull-in torque: >34.3mN.m (120Hz)
- Step Angle: 5.625 x 1/64
- Self-positioning torque: >34.3mN.m
- DCR: 200ohm +/- 7% (25'C)
- Temperature: 40K (120Hz)
- Insulation resistance: 10Mohm (500V)
- Noise: 40dB (120Hz, No load, 10cm)
- Dielectric Strength: AC 600V / 1mA / 1s
- Insulation Class: A
- Cable length: 24cm
- Suitable for guide wind deflector, portable air conditioner valve, etc

Dimensions: 1.65 in x 1.22 in x 0.79 in (4.2 cm x 3.1 cm x 2.0 cm)
Weight: 1.20 oz (34 g)
