Detail Stepdown step down 20A 300W DC to DC CA CC converter

Sesifikasi:
==============================

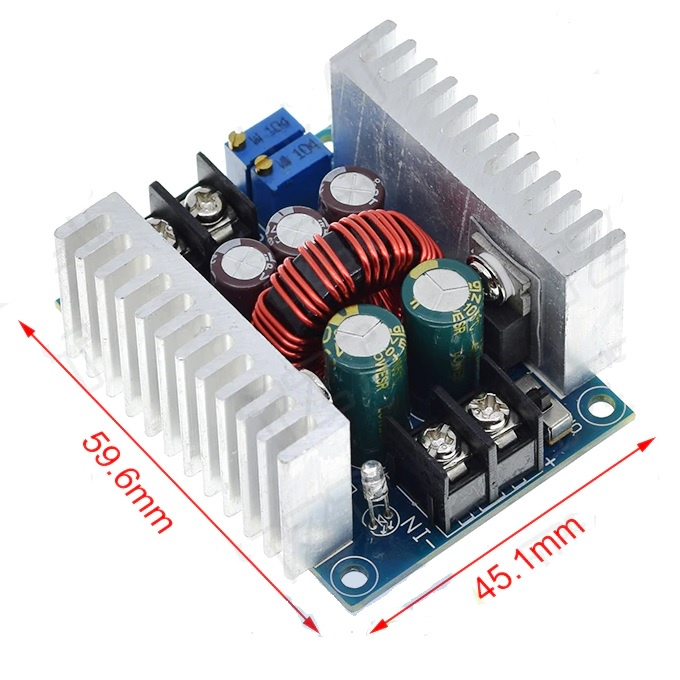

- Size: 60 x 53 x 27mm
- Operating Temperature: -40c to +85 c
- Voltage Regulation: 2.5%
- Load Regulation: 0.5%
- Output ripple: 50mV (max) 20M bandwidth
- Switching frequency: 300KHz
- Conversion efficiency: 95% (the highest)
- Output current: adjustable maximum 20A
- input voltage: 6V to 40V DC
- output voltage: 1.2V to 36V DC
- Rectification: non-synchronous rectification
- Module Properties: non-isolated constant current and voltage module
- Short Circuit Protection: Self-recovery
