Detail STEP UP XL6009 4A DRIVER DC TO DC ADJUSTABLE XL 6009 4 A dtep up dc xl 6009

UNTUK PEMBELIAN DALAM JUMLAH BANYAK TANYAKAN STOK TERLEBIH DAHULU YA KAK...

Deskripsi:
=================================
Modul Power supply step up nih gan. Pake XL6009, modul ini bisa naekkin tegangan
dari batre ataupun sumber lain menjadi tegangan yag lebih tinggi sesuai
kebutuhan :D Deskripsi DSN6009 4A is a high-performance step-up switching
current (BOOST) module.

The module uses the second generation of high-frequency switching technology
XL6009E1 core chip performance than the first generation technology LM2577. Xst
module at a lower cost, superior performance, LM2577 module is about to be
eliminated.

Test comparison sample reference:
=================================
- Input 3V Output 12V 0.4A 4.8W
- Input 5V Output 12V 0.8A 9.6W
- Input 7.4V Output 12V 1.5A 18W
- Input 12V Output 15V 2A 30W
- Input 12V Output 16V 2A 32W
- Input 12V Output 18V 1.6A 28.8W
- Input 12V Output 19V 1.5A 28.5W
- Input 12V Output 24V 1 A 24W
- Dimensi : 43mm x 21mm x 14mm.
- Fitur Wide input voltage 3V ~ 32V, optimum operating voltage range is 5 ~ 32V;
- Wide Output voltage 5V ~ 35V;

Vin * Iin * Efficiency = Vout * Iout Vin: Input Voltage Iin: input current Vout:
Output Voltage Iout: output current Spesifikasi Module properties: the isolation
booster module.

The input voltage: 5-32 V. Output voltage: continuous adjustable (5.5-35 V).
Output current: 3 A (MAX). The input current: 4 A (MAX). Input methods: IN+
input is level, IN- input negative. Output way: OUT+ output is level, OUT-
output negative. Adjust way: first correct by input power supply (5-32 V,
between) again using a multimeter to monitoring output voltage and the
potentiometer (turn step-down, in reverse chronological turn boost). Output
voltage: 5-35 V continuous adjustable (the construction no-load commissioning).

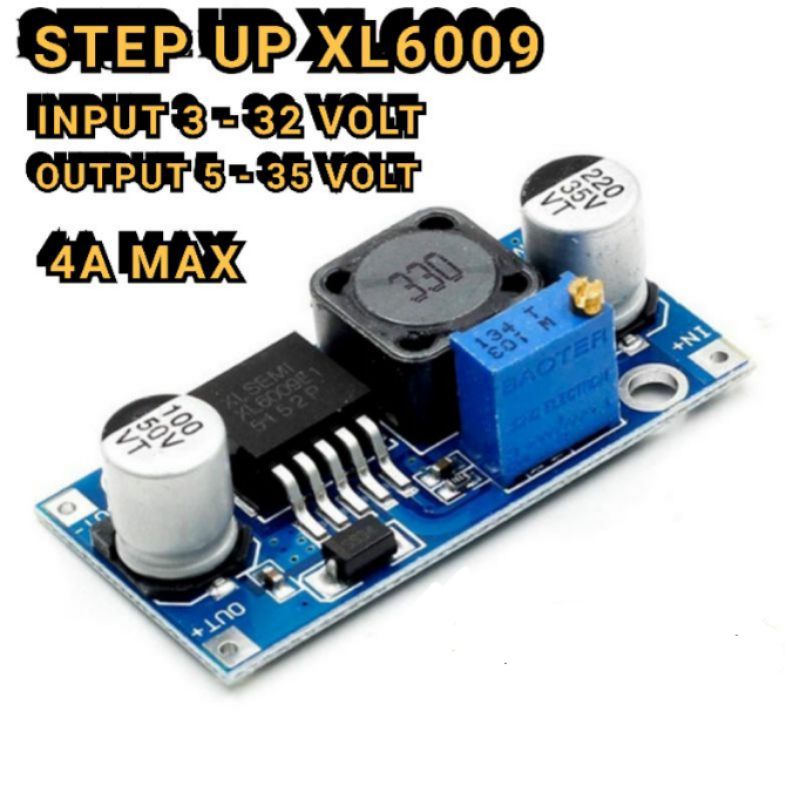

Gambar produk
