Detail Step Up Stepup 150w DC Boost Converter Konverter Power Supply QSKJ
Spesifikasi: -Module Properties: non-isolated step-up module (BOOST) -Wiring: solderless terminal -Input voltage: 10-32V DC (input voltage can not be higher than the output voltage, the output stable at the set value) -Output voltage: 12-35V DC (adjustable) -Output current: 10A (MAX) -Input current: 16A (MAX) (more than 10A please strengthen heatsink) -Output power: natural cooling 100W (MAX), strengthening cooling 150W (MAX) real power -Conversion efficiency: 94% (when Output 19V 2.5A Input 16V) -Output ripple: 2% (MAX) -Working temperature: industrial (-40 to +85 C) (environmental temperature, more than 40 degrees, please reduce power to use, or - enhance cooling) -Full-Load temperature: 45 degrees -No-load current: 25mA typical -Voltage regulation: +/- 0.5% -Load regulation: +/- 0.5% -Dynamic response speed: 200uS +/- 5% -Short circuit protection: No (Please install a fuse or protection circuit at input parts) -Input Reverse protection: No (Please connect a diode at input parts)
-Dimension: 65x35x23.5mm

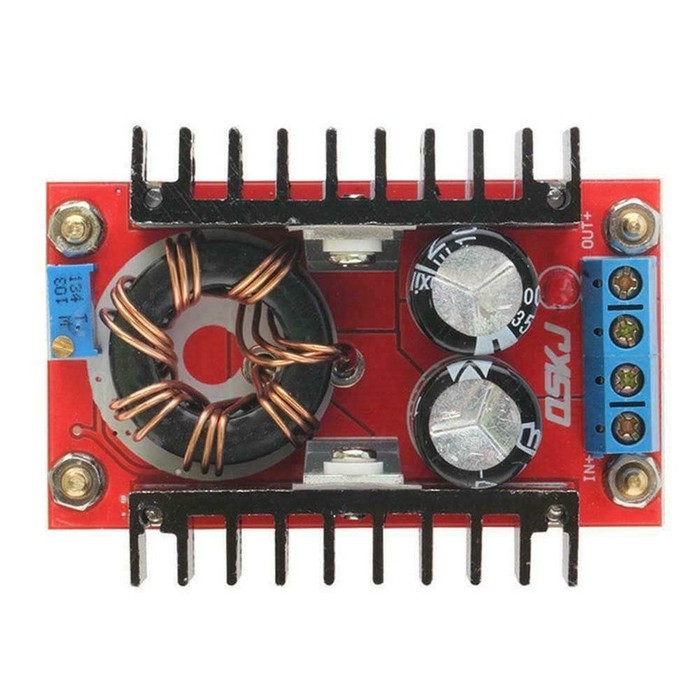

Gambar produk
Step Up Stepup 150w DC Boost Converter Konverter Power Supply QSKJStep Up Stepup 150w DC Boost Converter Konverter Power Supply QSKJ
