Step Up DC 10-32 Volt to 12-35 Volt (150 Watt)

Detail Step Up DC 10-32 Volt to 12-35 Volt (150 Watt)

Step Up DC 10-32 Volt to 12-35 Volt (150 Watt)

Features:
100% Brand new and High quality!
DIY an adjustable on-board power supply, you just input DC 12V, then you can get output DC 12V-35V (adjustable), But the output voltage can not below the input voltage
DIY a booster charger
Provide power for your electronic equipment
No Short circuit protection,Please installs the fuse or protection circuit at input parts

Specifications:
Input voltage: DC 10V-32V.

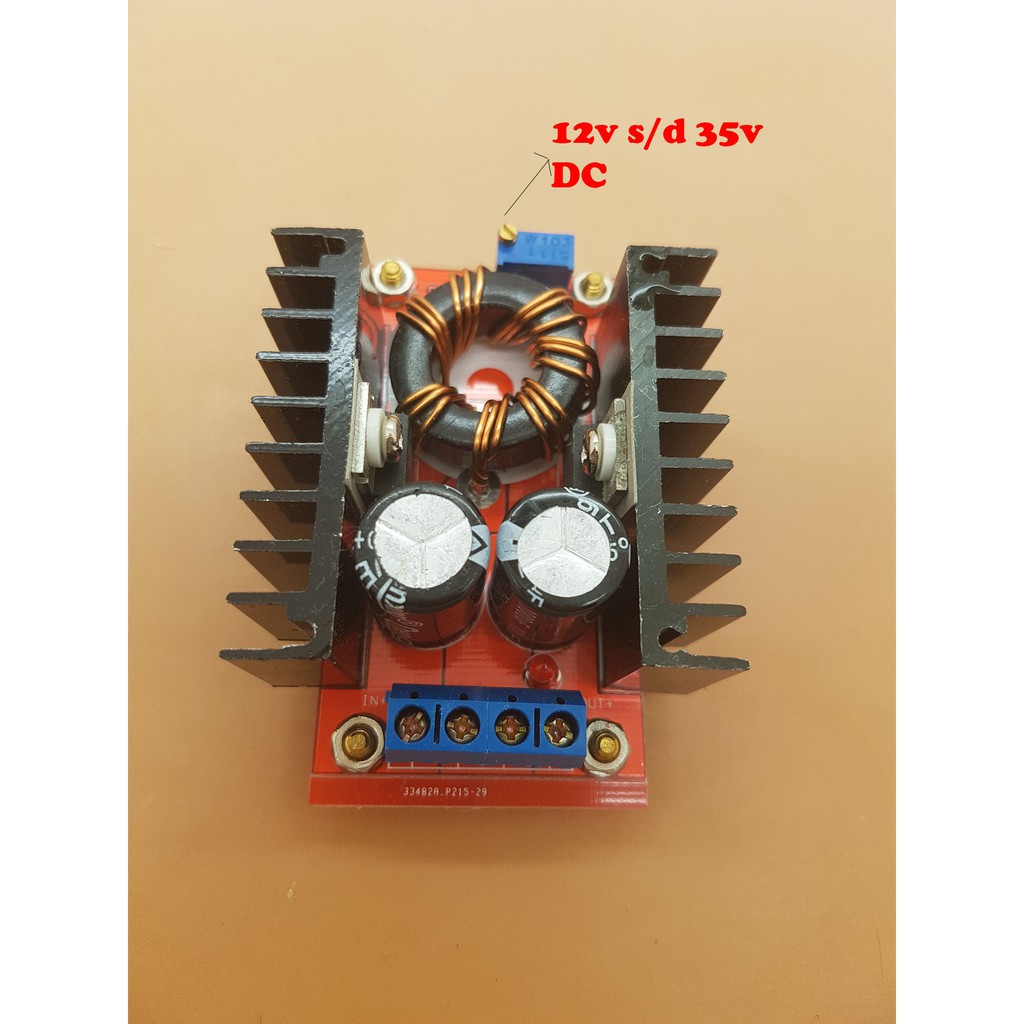

Output voltage: DC12V-35V(adjustable).
Output current: 6A (MAX).
Input current: 16A (MAX) (more than 10A please strengthen heatsink).
Output power: natural cooling 100W (MAX), strengthening cooling 150W (MAX) real power.
Conversion efficiency: 94% (when Input 19V 2.5A Output 16V, Reference).
Output ripple: 2% (MAX).
Working temperature: industrial (- 40 c to +85 c) ( environmental temperature, more than 40 degrees, please reduce power to use, or - enhance cooling).
Full-Load temperature: 45 degrees.
No-load current: 25mA typical.
Voltage regulation: 0.5%.
Load regulation: 0.5%.
Dynamic response speed: 200uS 5%.
Short circuit protection: No (Please installs the fuse or protection circuit at input parts).
Input Reverse protection: No (please comply with a reverse protection or connect a diode at input parts.)
Size: 65mm x 35mm x 21mm

Applications:
-Car laptop power supply: connected to 12V power supply, output voltage regulation as your notebook need. for example 20V.
-Boost charger. You can use the 12V power supply to charge battery more than 12V, for example 24V battery.(12-35V)
-DIY for output adjustable vehicle power supply, connect the 12V input, and output could be 14-35V(adjustable)

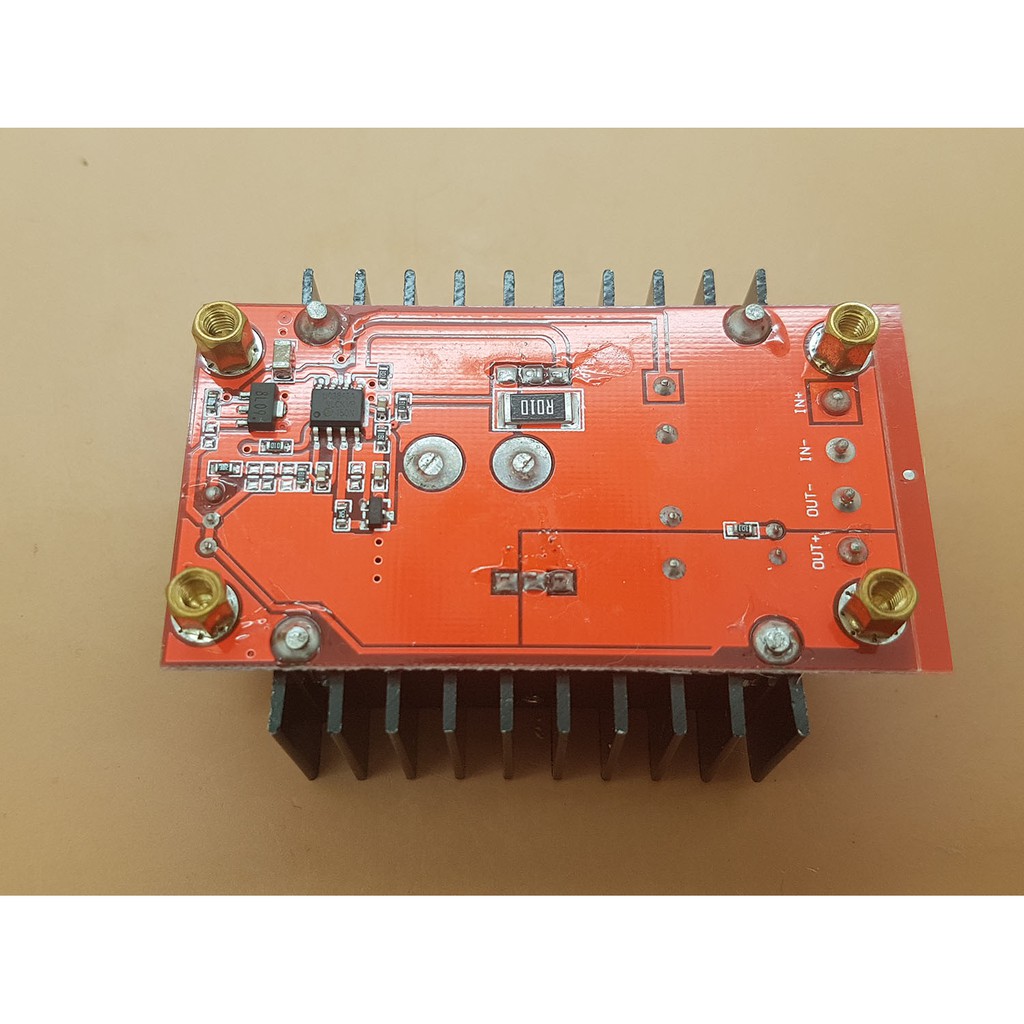

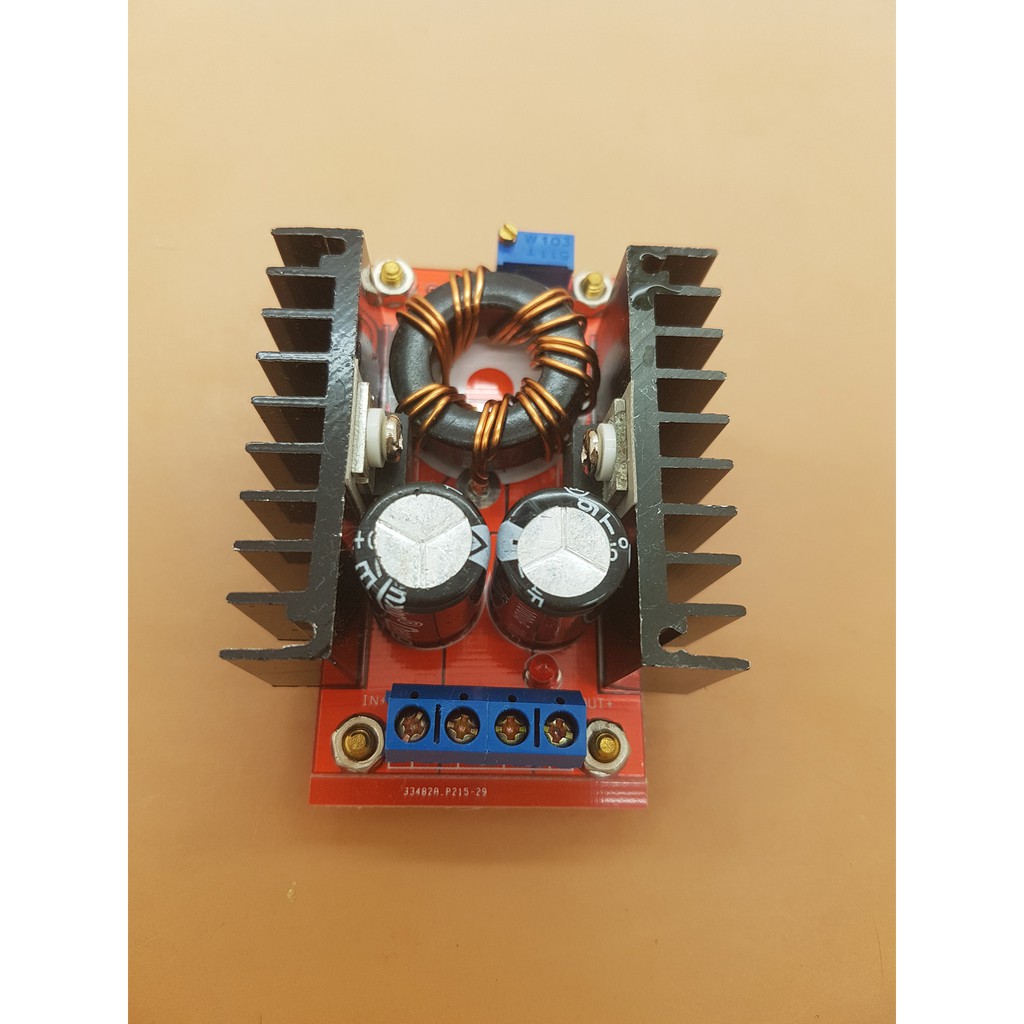

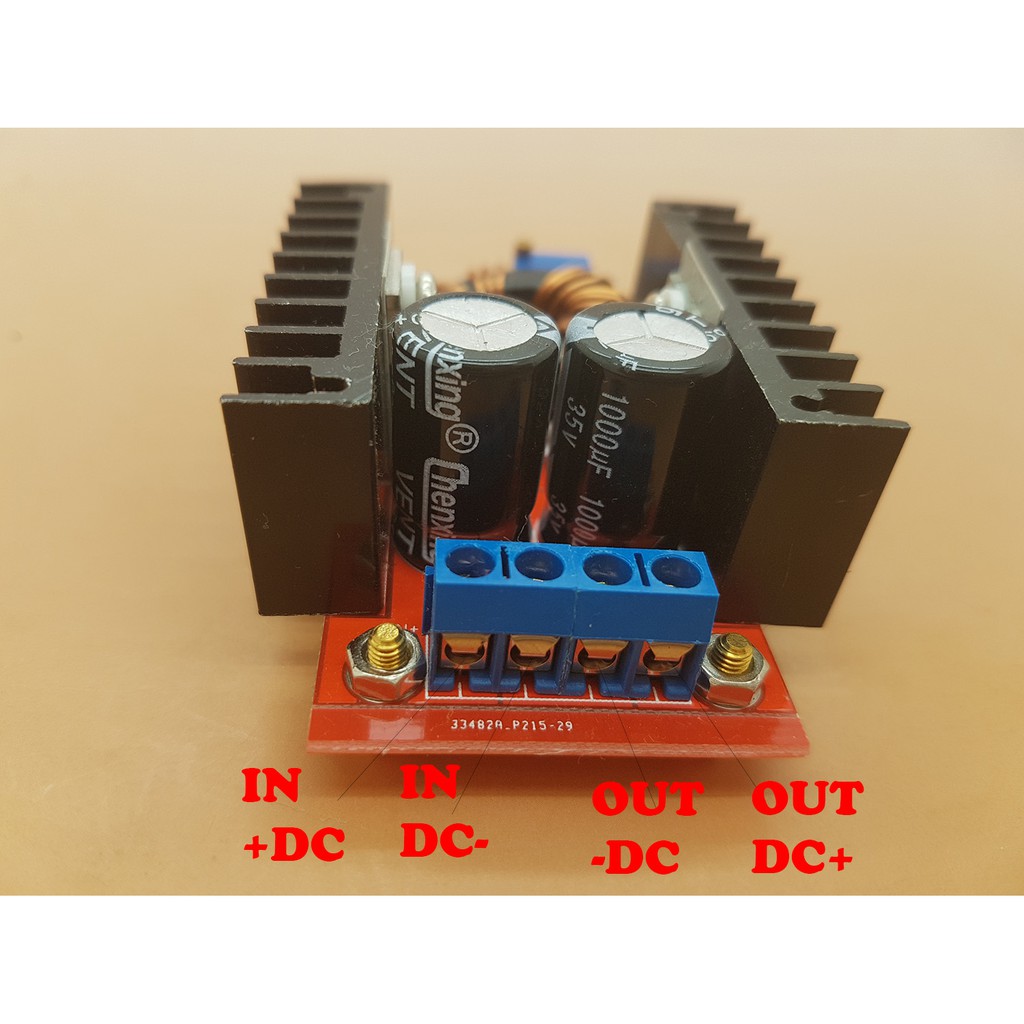

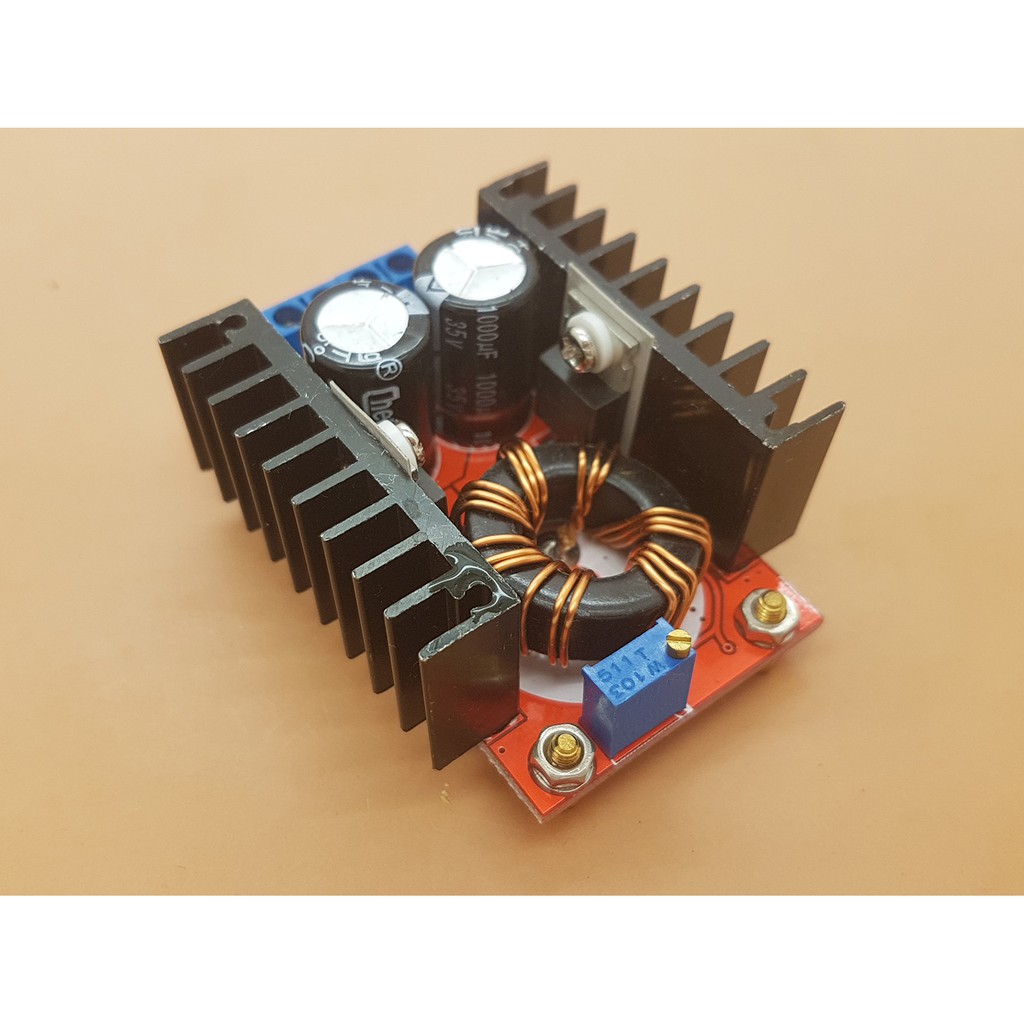

Gambar produk
