Detail Step Up 150W Boost Converter DC-DC 10-32V to 12-35V Voltage Module
Spesifikasi :Input voltage: DC 10V-32V.
Output voltage: DC12V-35V(adjustable).
Output current: 10A (MAX).
Input current :16A (MAX) (more than 10A please strengthen heatsink).
Output power: natural cooling 100W (MAX), strengthening cooling 150W (MAX) real power.
Conversion efficiency: 94% (when Input 19V 2.5A Output 16V, Reference).
Output ripple: 2% (MAX).
Working temperature: industrial (- 40 c to +85 c)
Full-Load temperature: 45 degrees.
No-load current: 25mA typical.
Voltage regulation: 0.5%.
Load regulation: 0.5%.
Dynamic response speed: 200uS 5%.
Short circuit protection: No
Input Reverse protection: No

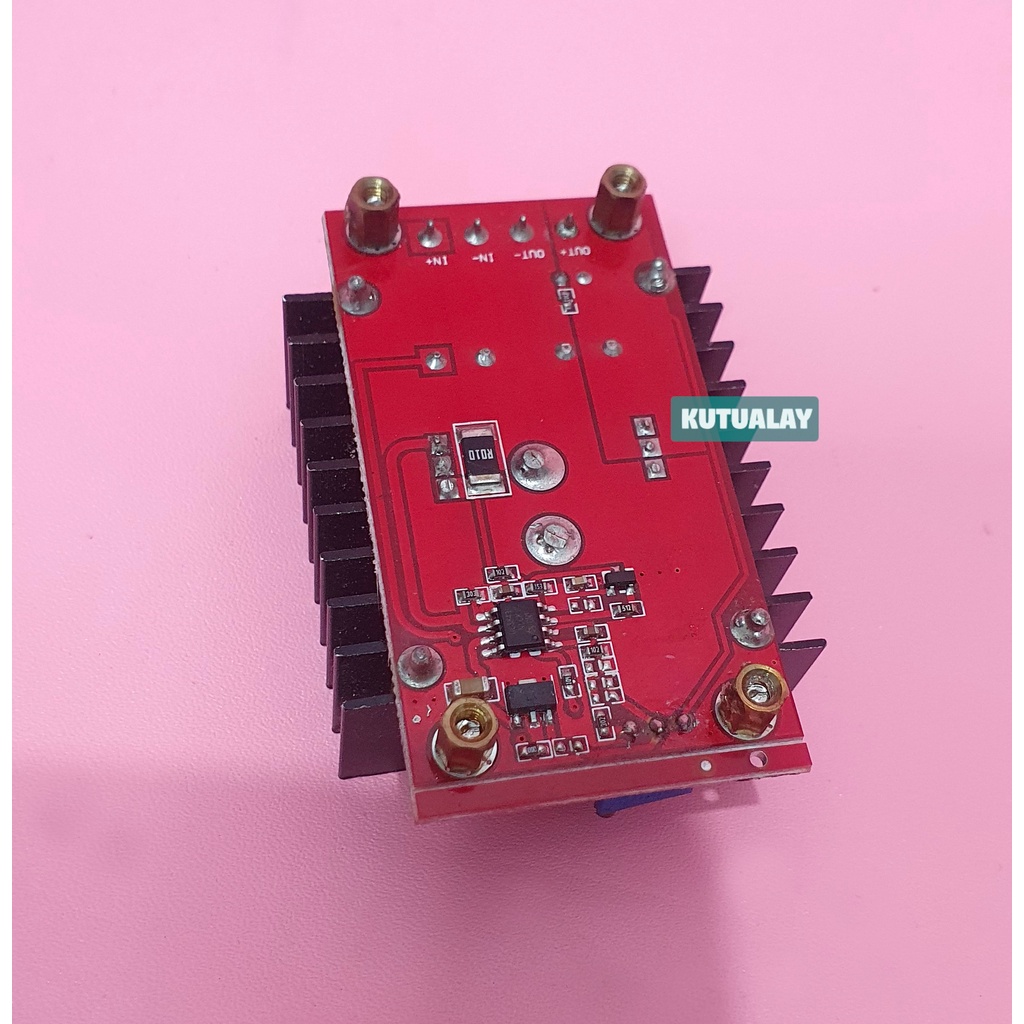

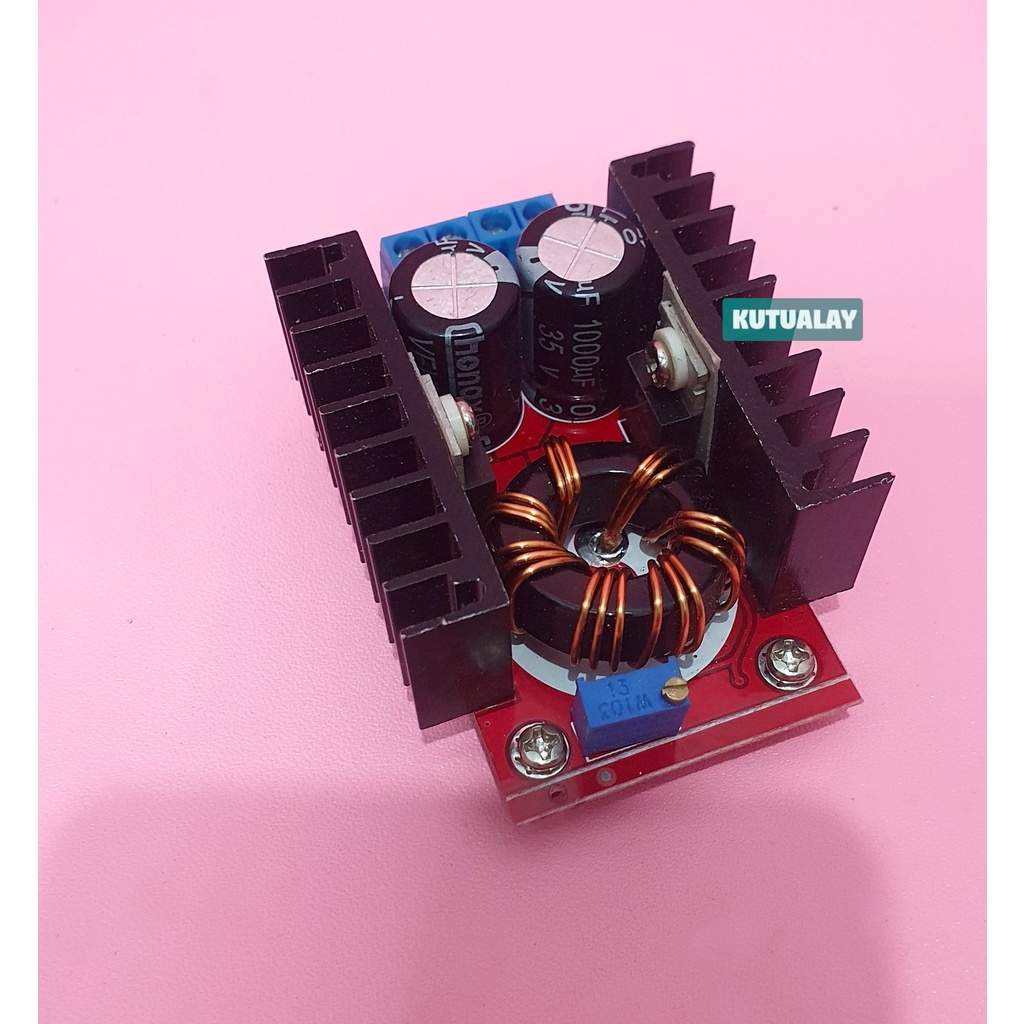

Gambar produk
