Detail Step Motor STH-54D500 Shinano Kenshi

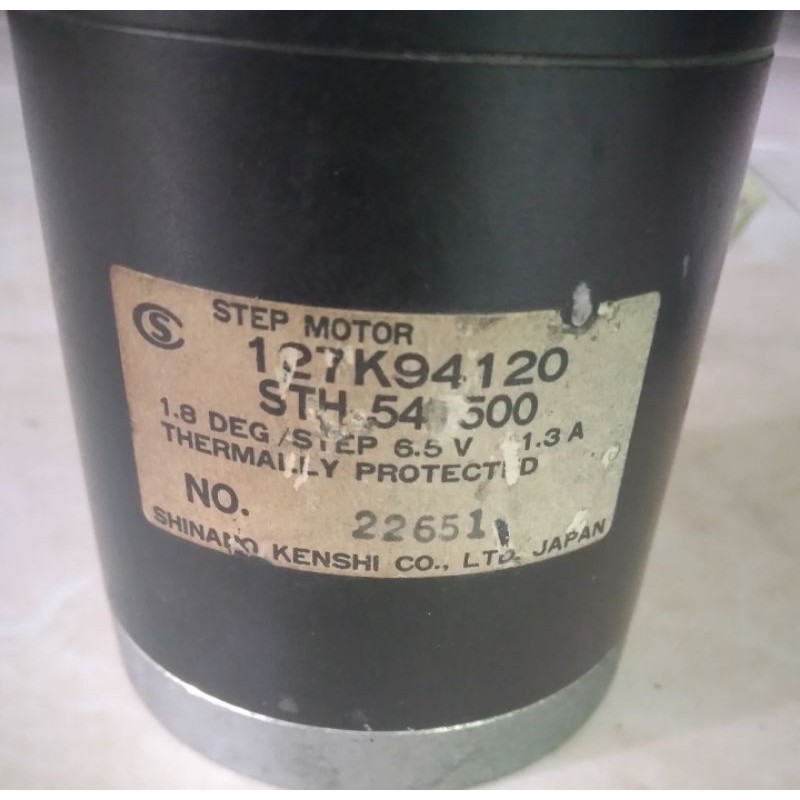

Stepper Motor 127K94120 STH-54D500 SHINANO KENSHI
THERMALLY PROTECTED

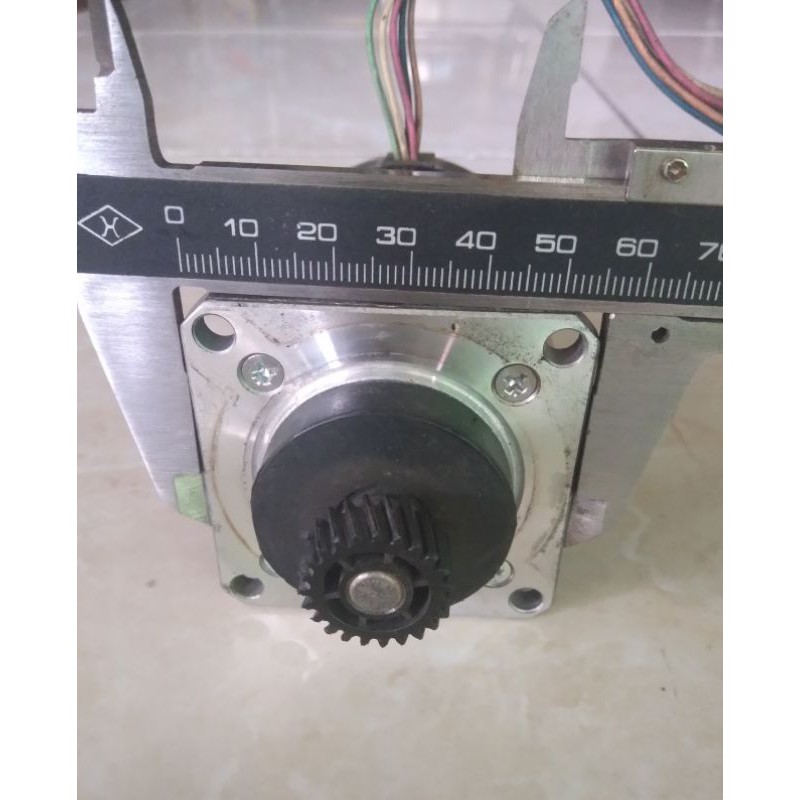

Width: 57 mm
Height: 57 mm
Depth: 75 mm
Shaft length: 23 mm
Shaft diameter: 7 mm
Weight: 980 gr
Torque: 10 Kgcm
The angle of each step: 1.8 deg
Phase: 2
Supply voltage: 6.5 V
Current: 1.3 A / Phase
The number of connecting wires: 5
Accessories: Damper
Blue (coil-1), White (CT), Red (coil-2)
Green (coil-3), Yellow (coil-4)
Brand: SHINANO KENSHI CO., LTD.
JAPAN
