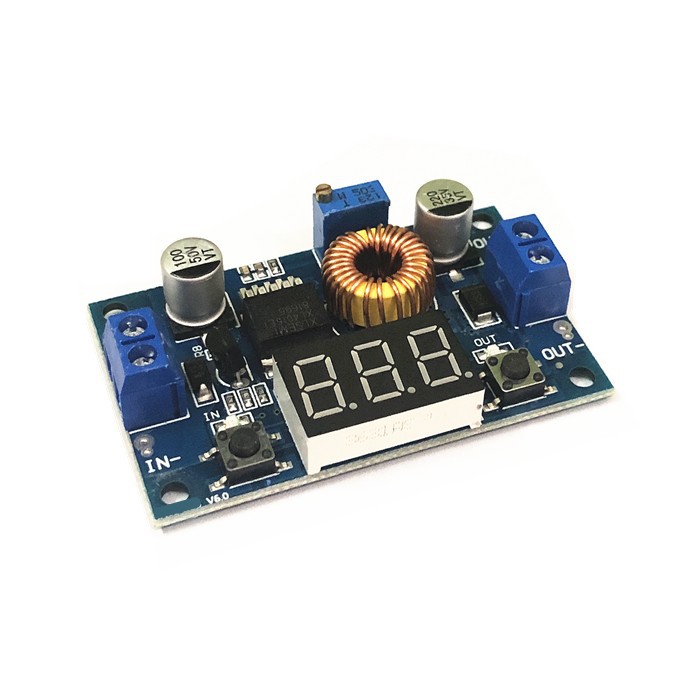

Step-down module with Voltmeter 5A 75W XL4015 (4064)

Detail Step-down module with Voltmeter 5A 75W XL4015 (4064)

Module performance and characteristics:

●With power indicator
●With voltmeter display and the voltmeter can be self-calibrated. Using a more advanced voltage microprocessor, the error of the voltmeter is ±0.05V, and the range is 0~40V. (Note: To ensure the accuracy of the voltmeter, please ensure that the input voltage is above 4.5V)
●Touch the button to switch between measuring input or output voltage, and there is an indicator light to show which voltage is being measured, and the setting is saved, even if the power is turned off and on.
●The voltmeter can be turned off, and it can be easily realized by touching the left button when it is not needed.
●With terminal blocks, it is easy to use without soldering iron, and the connection points of welding wires are reserved.
●Input voltage 4.0~38V. (The input voltage must be more than 1.5v higher than the output voltage)
●Adjustable output voltage range 1.25V～35V continuously adjustable. (The input voltage must be 1.5V higher than the output voltage)
●The output current can reach 5A, and it is recommended to use within 4.5A.
●The output power can reach 75W.
●High conversion efficiency, up to 96% (efficiency is related to input, output voltage, current, and pressure difference)
●Load regulation rate S(I)≤0.8%, voltage regulation rate S(u)≤0.8%
●With overheat protection and short circuit protection
●Size 60*37*18mm
●Weight 28g

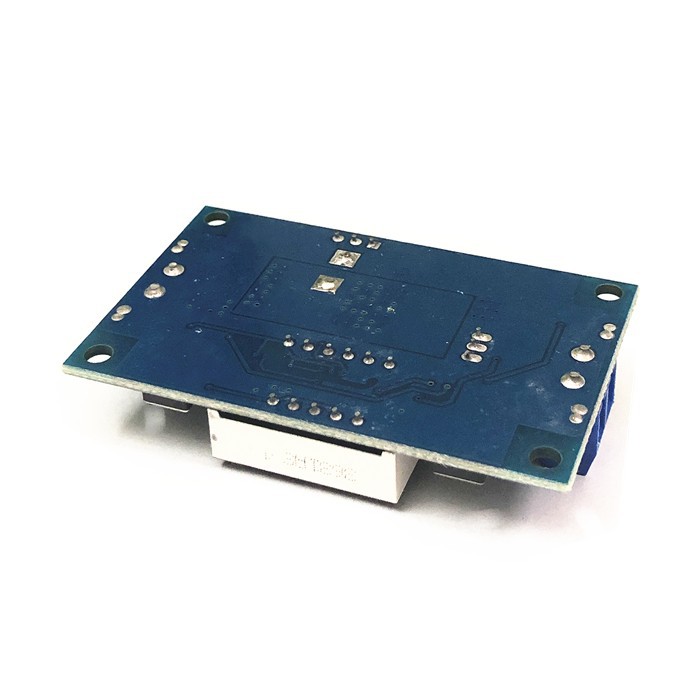

Gambar produk
