Step Down DC To DC 6V 24V Ke 5V 3A Penurun Tegangan USB Charger Modul

Detail Step Down DC To DC 6V 24V Ke 5V 3A Penurun Tegangan USB Charger Modul

MODUL CHARGER MINI dengan output 5V dan arus maksimum (peak) 3Amper, sangat cocok untuk anda yang ingin memasang rangkaian charger di mobil atau motor anda. tduino
Selain itu modul ini bisa digunakan untuk menyalakan perangkat2 USB seperti Arduino, Raspberry PI dan lain2.

** Kelebihan modul ini antara lain:
1. Max output mencapai 3Amp.
2. Perlindungan polaritas input (modul tidak rusak jika polaritas input terbalik).
3. Ada builtin fuse sebagai pengaman jika arus melebihi batas.
4. Efisiensi konversi sampai dengan 97%, artinya panas minimal dan hemat daya.

** Spesifikasi:
- Max output current / Peak = 3A, long time use 2.1A
- New design, 3 solid state ceramic capacitors(MCC), more safe and low ripple
- Synchronous rectification, High efficiency, 6,5V to 5V 0,7A can up to 97,5%, 12V to 5V 1A can up to 94%.
- Flat copper inductor, improve conversion efficiency
- With output overvoltage protection. There is 1.5A fuse, output 5V have 300W TVS tube protect your USB device
- Using the latest USB identification circuit, perfectly compatible with IPHONE, the most of Android phones, IPAD etc
- High quality USB port. tduino
- Output voltage indicator (RED)
- Small size, 26,4mm x 15mm x 7,4mm
- Input with reverse polarity protection diode, will not damage when input connect incorrect
- Ultra-low static current, 0.85 mA only.
- Do not need to add swith when connected to the car battery, can be connected to car cigarette lighter cable or DC power supply cable
Visit Tokoduino dot com

** Parameters:
Non-isolated buck module (BUCK) synchronous rectification
Input voltage: DC 6-24V
Output voltage: 5.1-5.2V
Output current: 3A Max (Perlu pendinginan tambahan), untuk penggunaan kontinu = 2,1A
Conversion efficiency: can up to 97,5%
Switch frequency: 500KHz

** Kelengkapan:
1pcs USB charger module

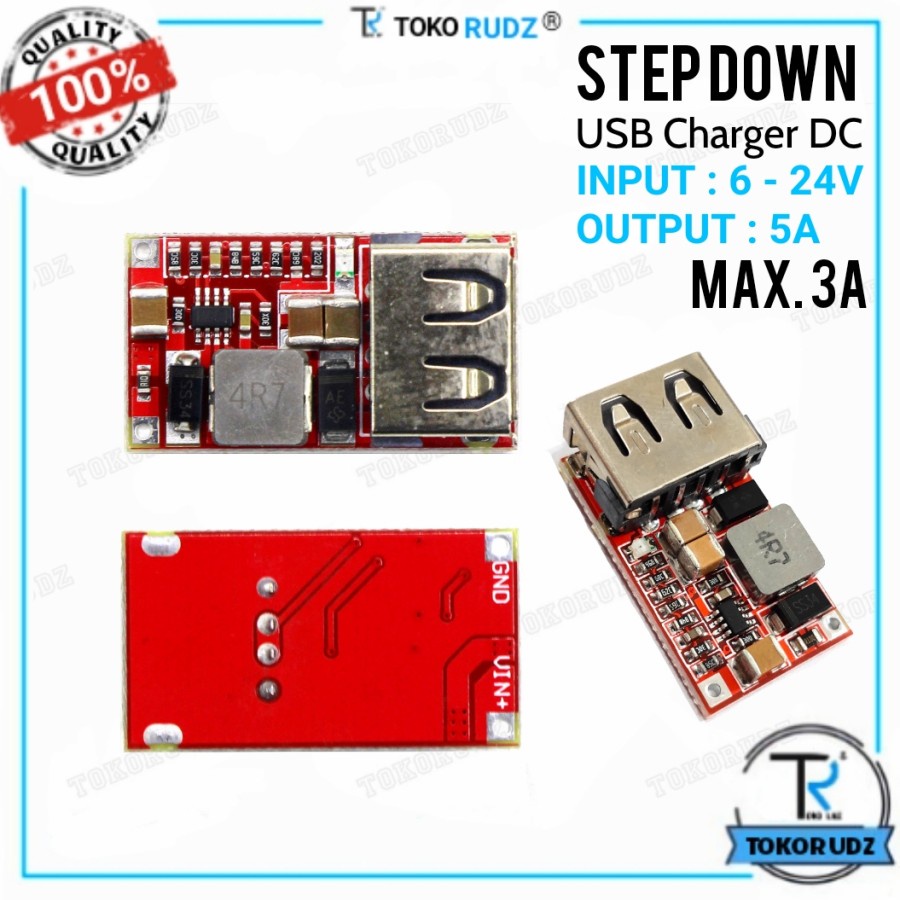

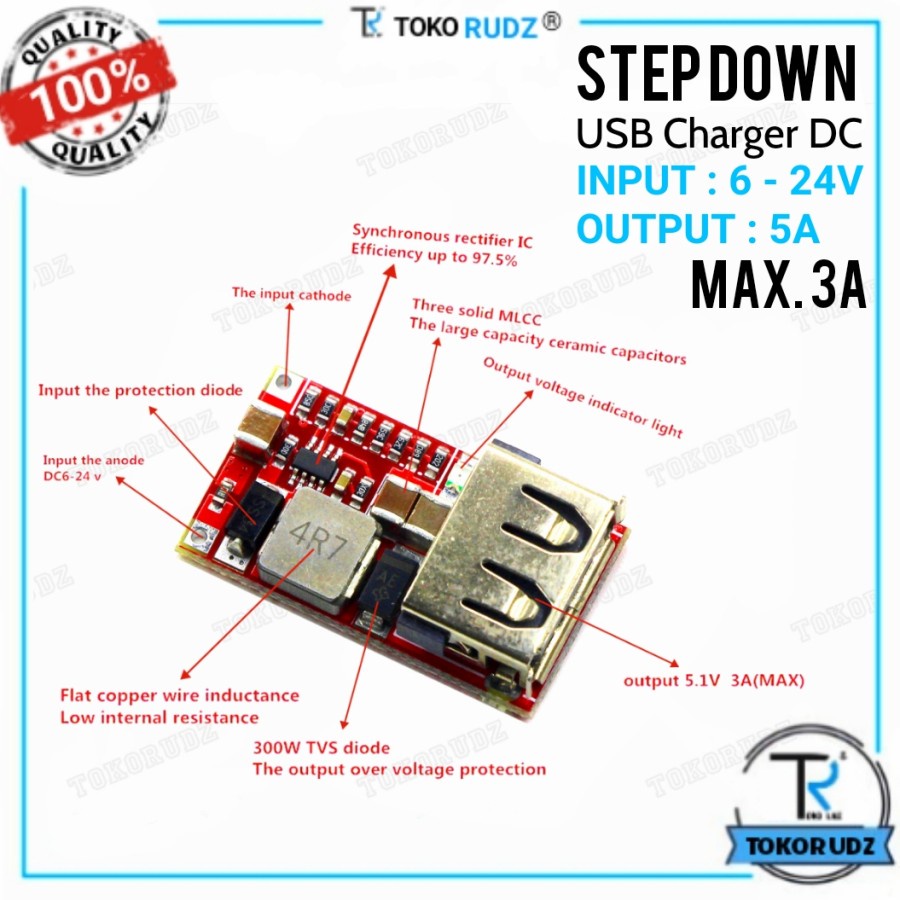

Gambar produk
