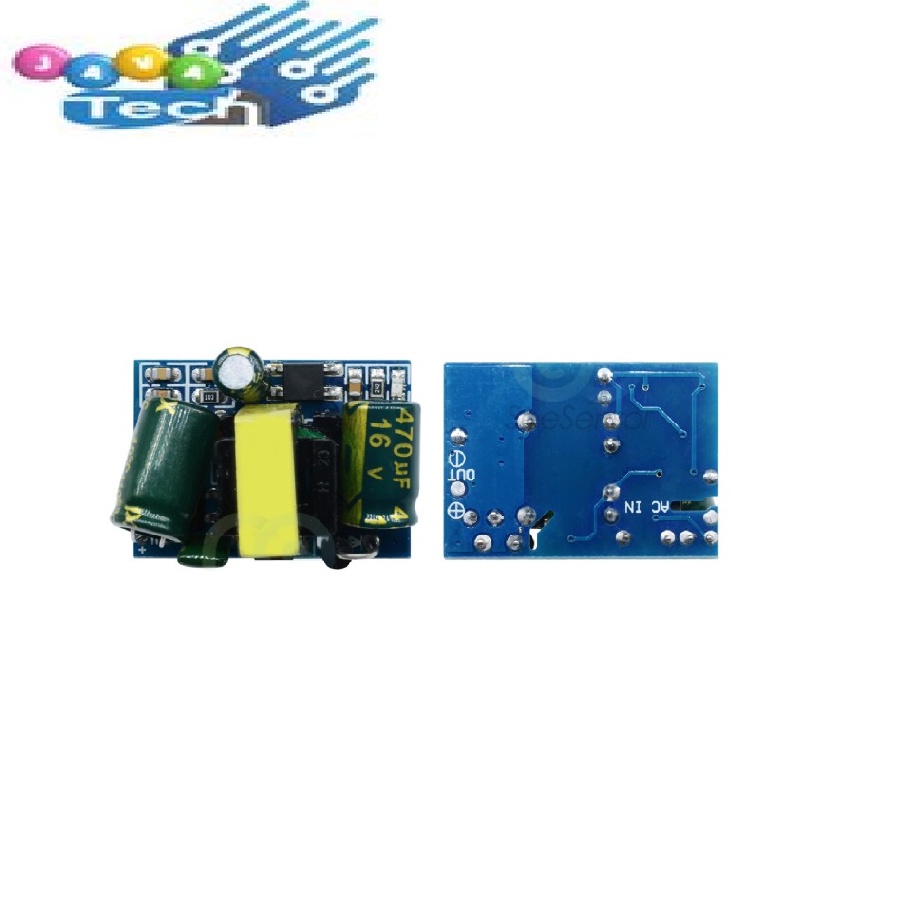

Detail Step Down AC-DC 12V 400mA 4.8W Power Supply Buck Converter 220v to 12v

Specifications:
1. Input voltage:AC85~265V 50/60HZ or DC100v-370v
2. Output voltage:DC12V (±0.1V)
3. Output current:400mA
4. Power:4.8W
5. PCB size:3*2*1.8cm

Use environment:
1. Working temperature: -20 to 60Centigrade
2. Relative humidity: 40 to 90% RH

Output Characteristics
1. Output voltage range: 11.80~12.1V
2. Output Current Range: 0A to 400mA, the peak current of 450mA
3. Output power: 4.8W.
4. Output efficiency: 80%
5. Switching Overshoot: 10%
6. Output Rise Time: 100ms
7. Ripple:150mV
