Detail Step Down 5A Charging to charge Lithium Batteries (231)

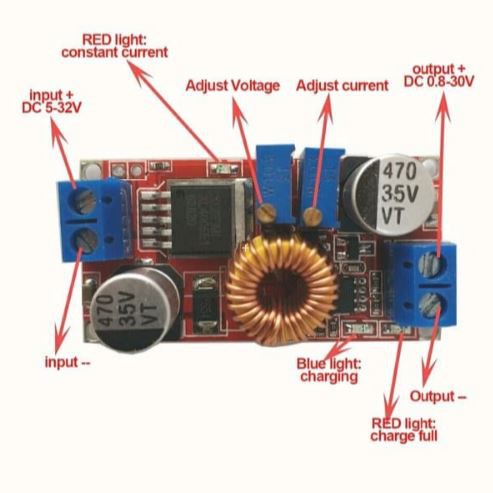

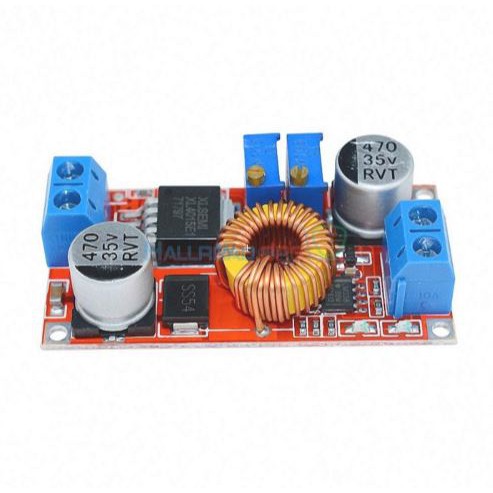

Step-Down 5A Buck Charging to charge Lithium Batteries

Spesifikasi :
- Input voltage: 5V-32V
- Output voltage: 0.8V-30V (Adjustable)
- Dropout voltage: input voltage must be higher than output voltage
- Output current: 0-5A, 5A maximum
- Conversion efficiency: 95% maximum (the higher the output voltage, the higher the efficiency)
- Size: 51 * 26.3 * 14 (L * W * H) (mm)
- Operating Temperature: -40 to +85 (C)
- Voltage Regulation: 2.5%
- Load Regulation: 0.5%
- Output ripple: 50mV (max) 20M bandwidth
- Switching frequency: 300KHz
- Rectification: non-synchronous rectification
Module Properties: non-isolated constant current and voltage module.
