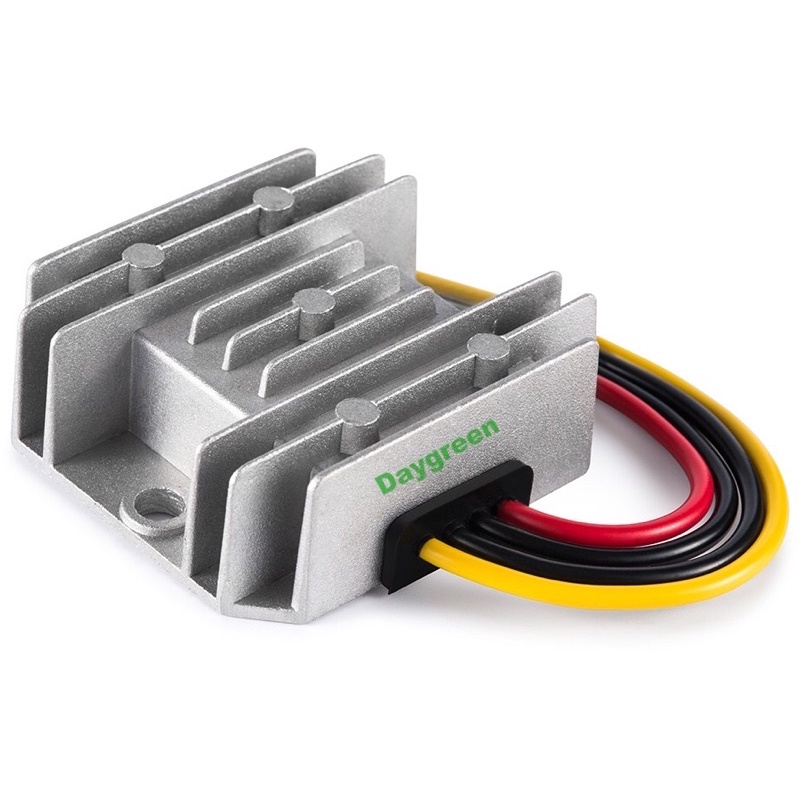

Step Down 5A 24V 36V 48V to 12V DC-DC Converter IP68 Waterproof Regulator

Detail Step Down 5A 24V 36V 48V to 12V DC-DC Converter IP68 Waterproof Regulator

Wide input voltage from 18V-56V
Stable output voltage is 12V
100% full rated power
100% full stable output current
100% burn-in test
Typical efficiency is 95%
Waterproof sealed
Cooling by free air convection
Surface mountable
2 years warranty
Over-current, over-voltage protections
Over-temperature protections
According to: EN 50498:2010 IP68
This product is customized and can be consulted at any time
Daygreen P/N B05-234-12
Efficiency 95%
Input Voltage 24V 36V 48VDC
Output Voltage 12VDC
Output Current 5A
Ripple 120mVp
Line Regulation ±0.2%
Load Regulation ±0.2%
Voltage Accuracy ±1.5%
Enclosures IP68
Dimension 66*59*24MM
Net Weight 140g
Ambient temperature -20~60°C
Operation temperature -40~80°C
Warranty 2 years
