Step Down 50V 20A 1000W Adjustable DC DC Buck Converter dengan Casing Akrilik

Detail Step Down 50V 20A 1000W Adjustable DC DC Buck Converter dengan Casing Akrilik

Adjustable DC DC Buck Converter Step Down 50V 20A With Acrylic Case 1000W
Sudah dilengkapi Casing Akrilik
TIDAK termasuk power supply

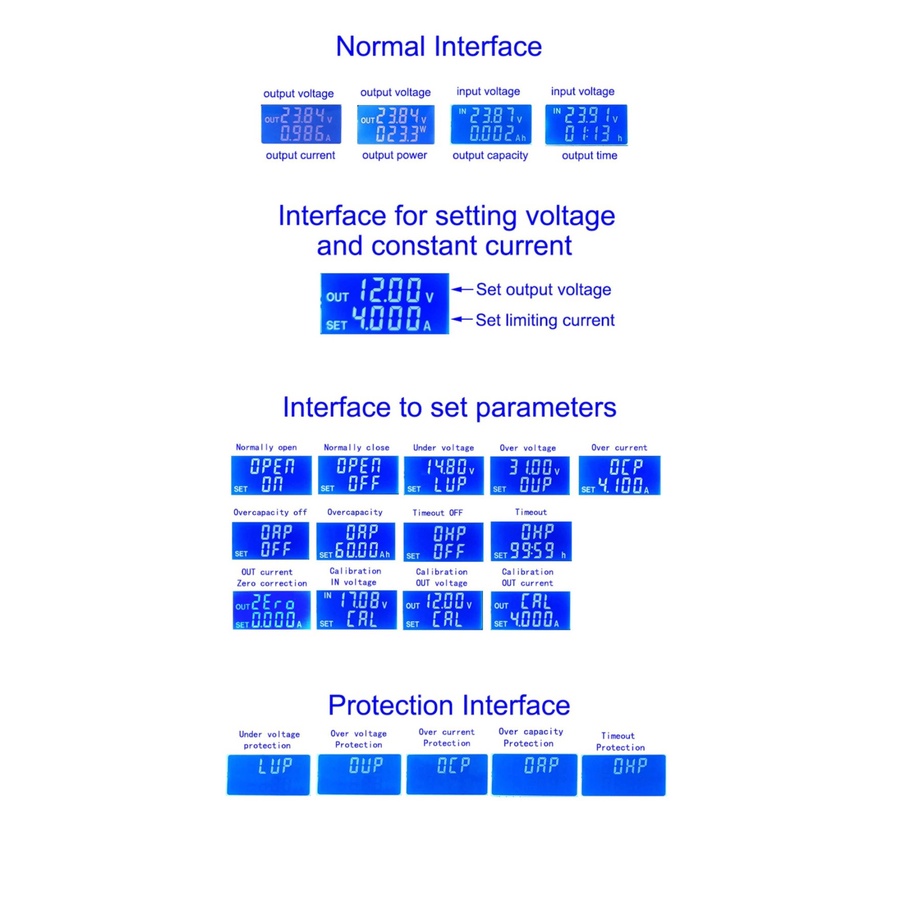

Display:LCD
Input voltage range:6-55.00V
Input voltage resolution:0.01V
Output voltage range:0-50.00V
Output voltage resolution:0.01V
Output current range:0-20.00A
Output current resolution:0.01A
Output power range:0-1000W
Input voltage accuracy:±(1%+5)
Output voltage accuracy:±(0.3%+5)
Output current accuracy:±(0.5%+5)
Typical value of output ripple:150mV Peak value
Normal operating temperature range:-10℃~40℃
Capacity measurement range:0-999.9AH


Soft start: Yes
Protection mechanism:
Input undervoltage protection (5.8-50v adjustable, default 5.8v)
Output overvoltage protection (0-51.00v adjustable, default 51V)
Output over-current protection (0-20.10a adjustable, default 20.10a)
Timeout protection (0 - 100h adjustable, off by default)
Over capacity protection (0 – 999.9ah adjustable, off by default)

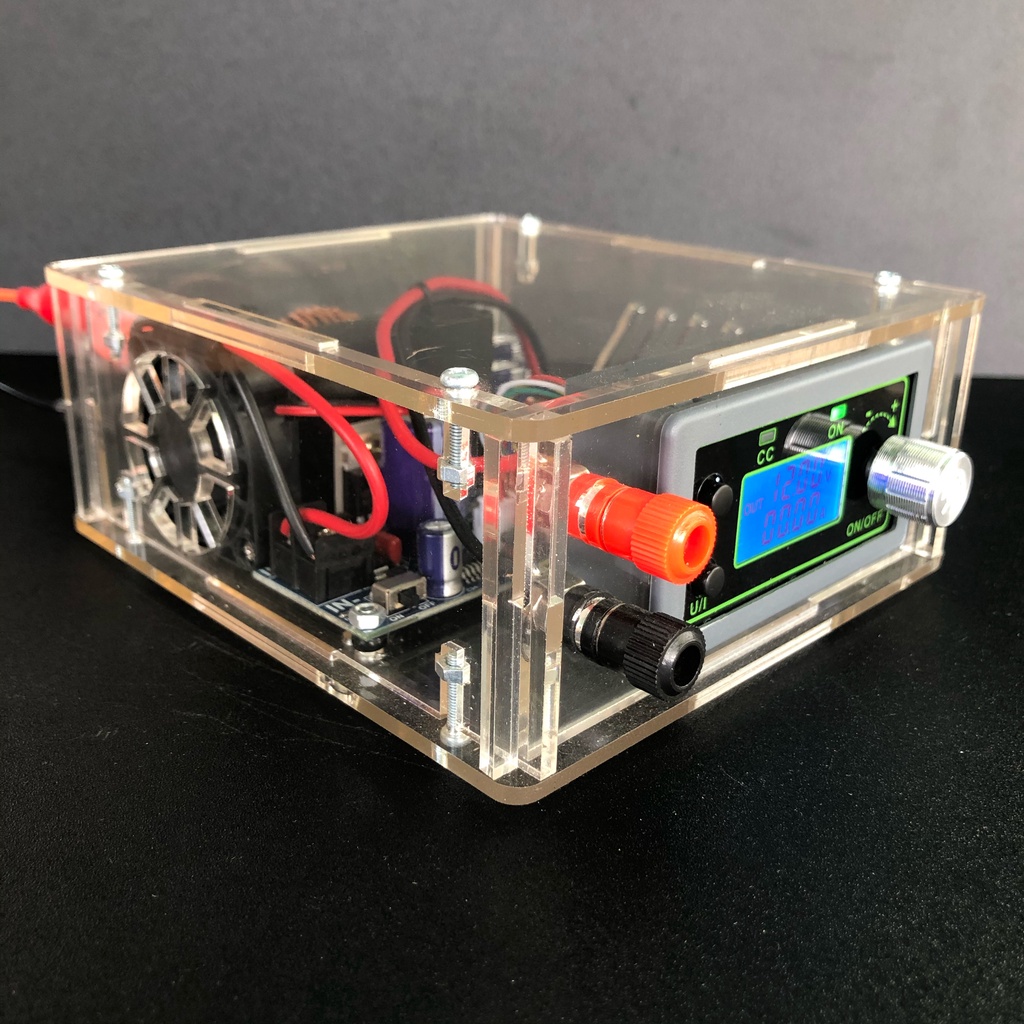

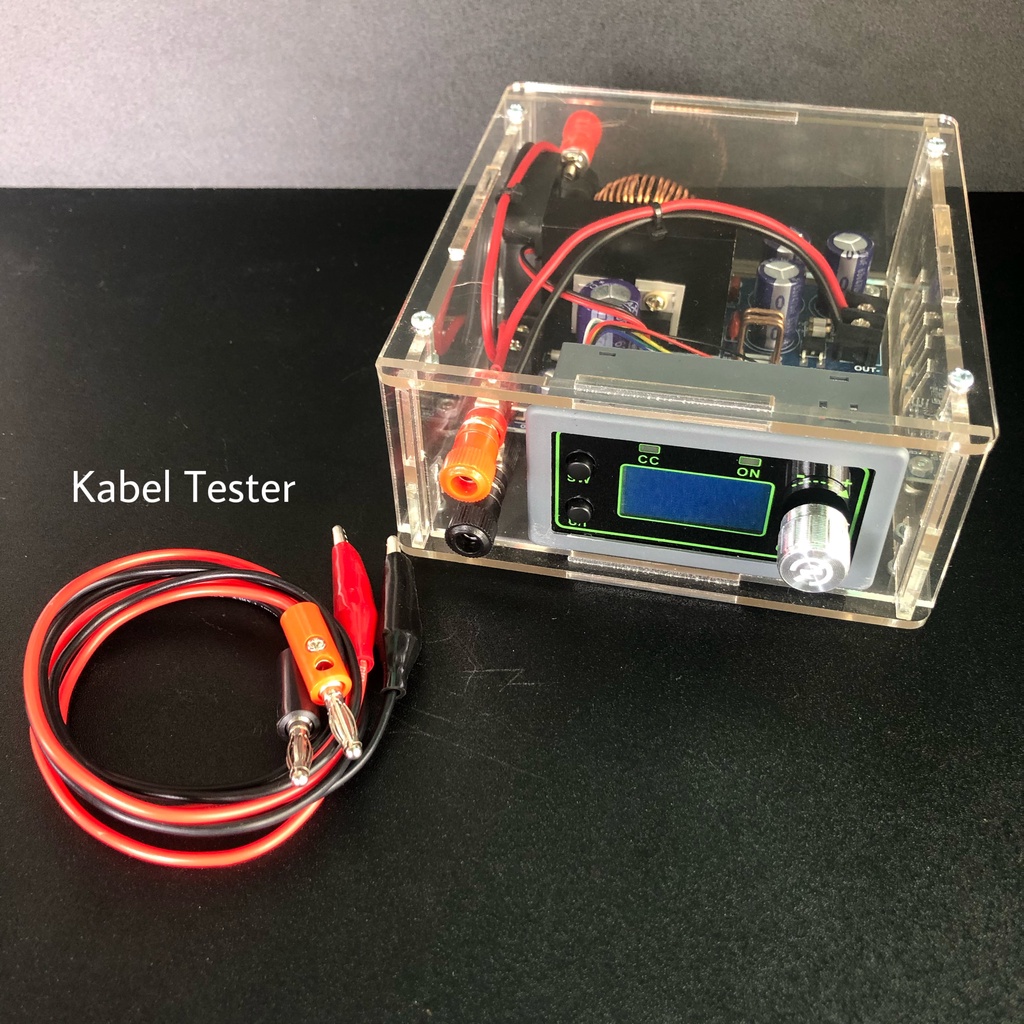

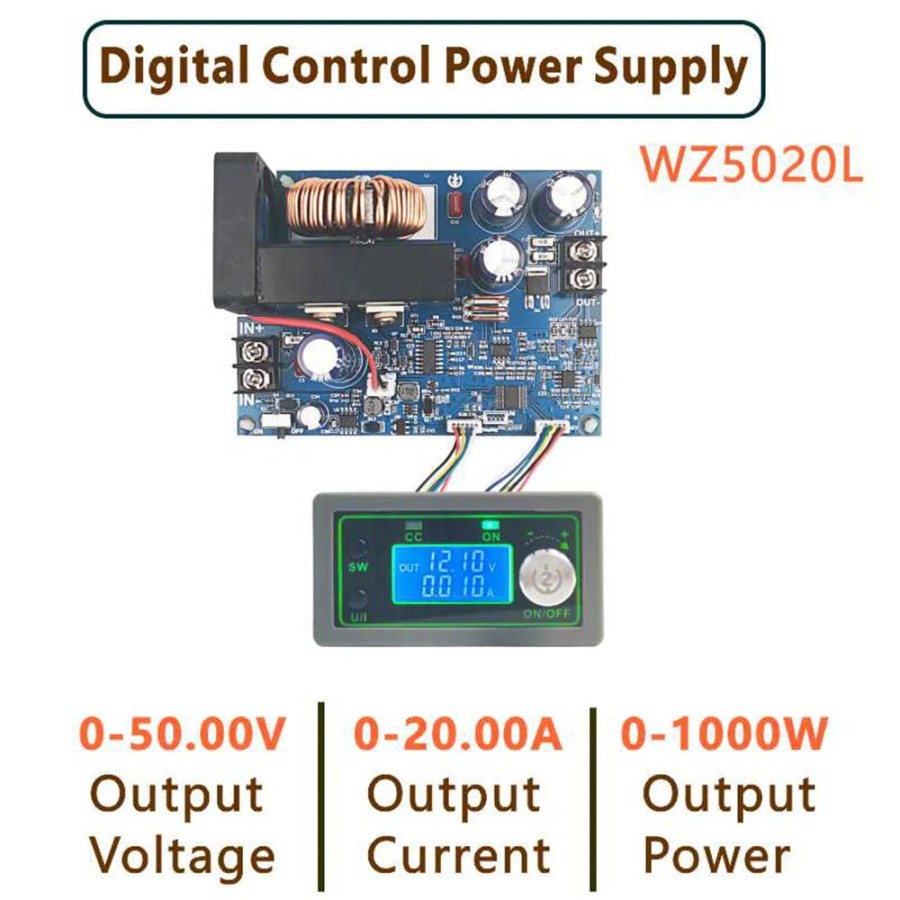

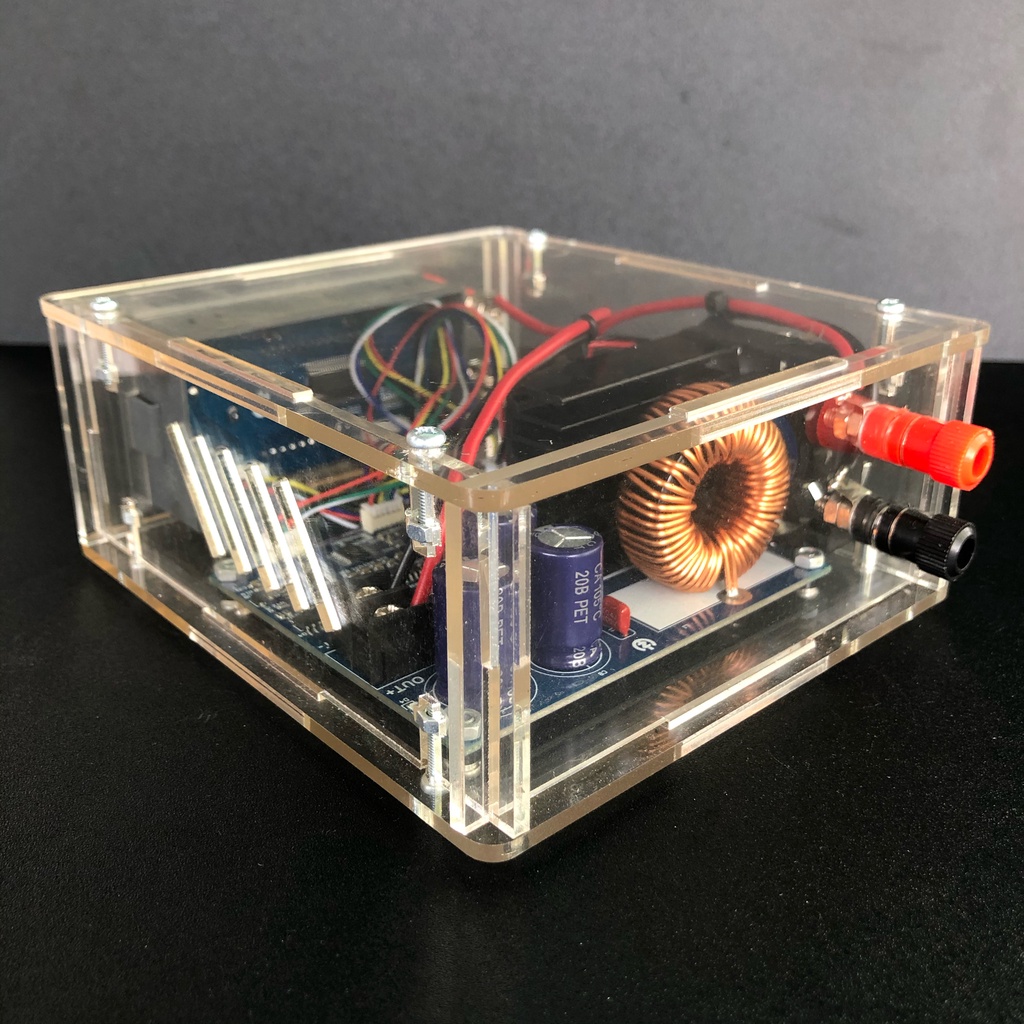

Gambar produk
