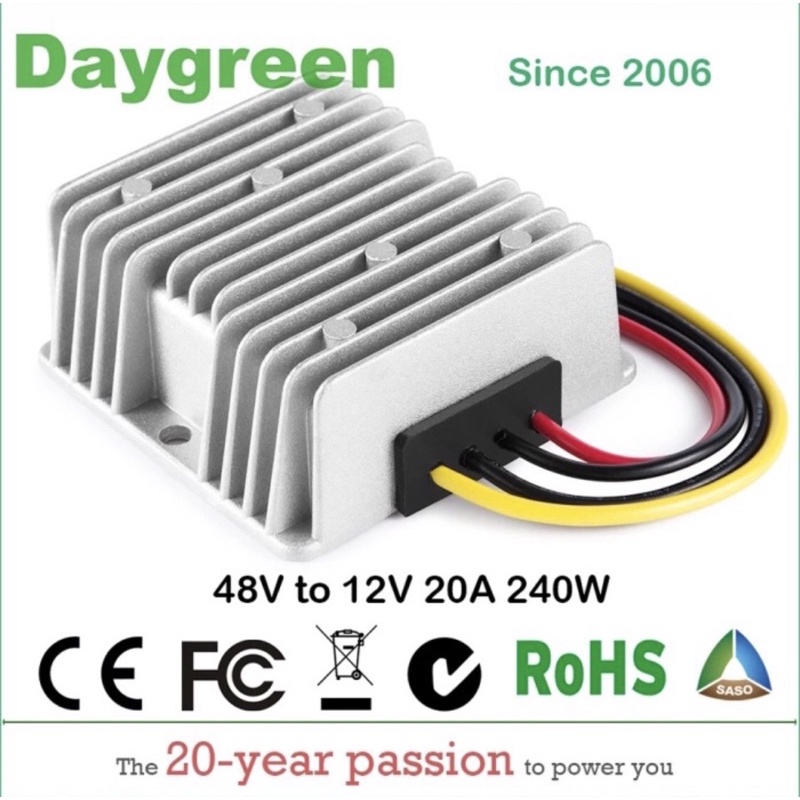

Step Down 20A 36V 48V to 12V DC-DC Converter IP68 Waterproof Regulator

Detail Step Down 20A 36V 48V to 12V DC-DC Converter IP68 Waterproof Regulator

Wide input voltage from 30V-60V
Stable output voltage is 12V
100% full rated power
100% full stable output current
100% burn-in test
Typical efficiency is 95%

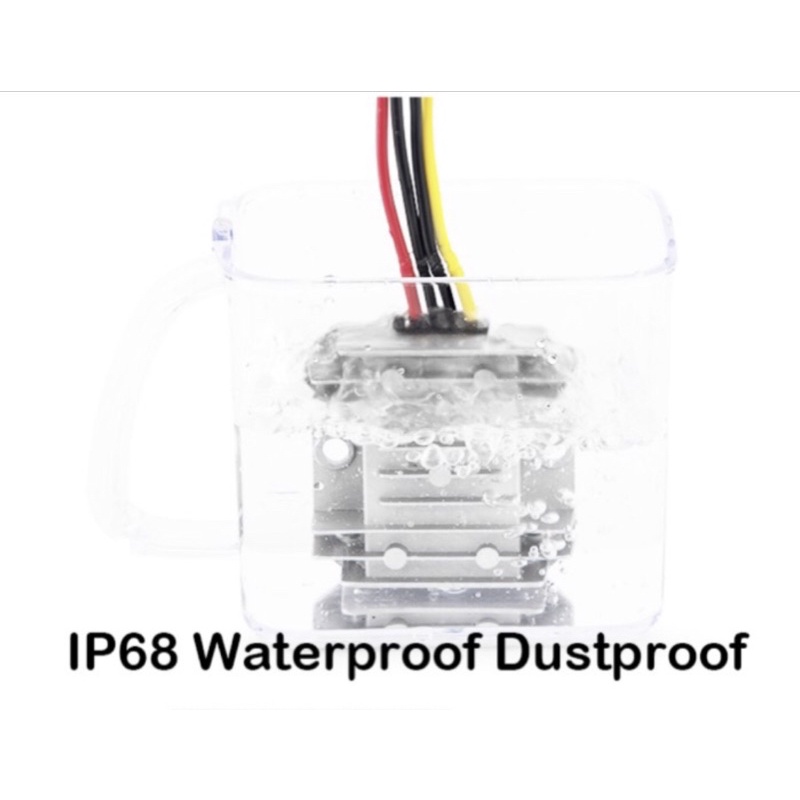

Waterproof sealed
Cooling by free air convection
Surface mountable
2 years warranty
Over-current, over-voltage protections
Over-temperature protections
According to: EN 50498:2010 IP68
This product is customized and can be consulted at any time
Daygreen P/N
B20-3648-12
Efficiency
95%
Input Voltage
30-60VDC
Output Voltage
12VDC
Output Current
20A
Ripple
120mVp
Line Regulation
±0.2%
Load Regulation
±0.2%
Voltage Accuracy
±1.5%
Enclosures
IP68
Dimension
100*80*40MM
Net Weight
300g
Ambient temperature
-20~60°C
Operation temperature
-40~80°C
Warranty
2 years
