Step Down 15A 200W 60V Adjustable DC-DC Step Down Converter Buck Module 60V Adjustable Voltage Stabi

Detail Step Down 15A 200W 60V Adjustable DC-DC Step Down Converter Buck Module 60V Adjustable Voltage Stabi

·  Brand Name: diymore

·  Application: Computer

·  Dissipation Power: 200W

·  Condition: New

·  Supply Voltage: 15A 60V

·  Type: Voltage Regulator

·  is_customized: Yes

·  Model Number: Step Down Converter

·  Operating Temperature: standard

Description:

200W DC-DC high voltage power synchronous buck module

8-60V wide voltage input, 1-36V stepless adjustable output

The maximum peak output current 15A

Perfect ultra-efficient circuit design up to 94% Low Ripple

Parameter:
Name: 200W adjustable synchronous buck module

Type: Non-isolated step-down module (BUCK)

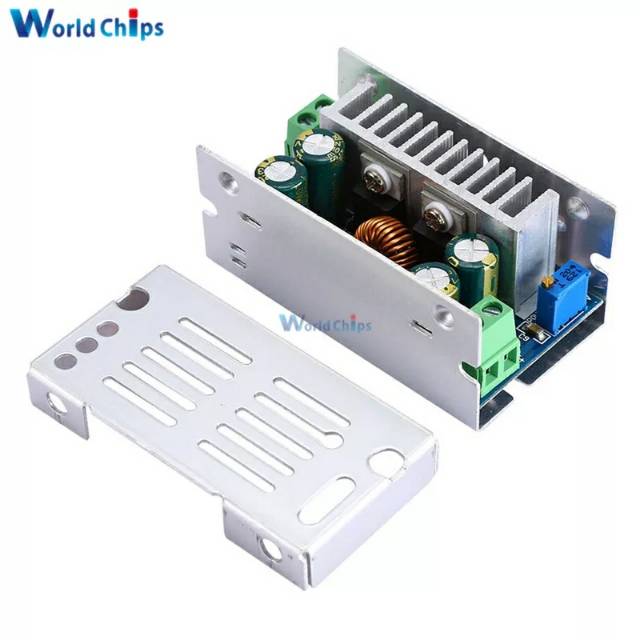

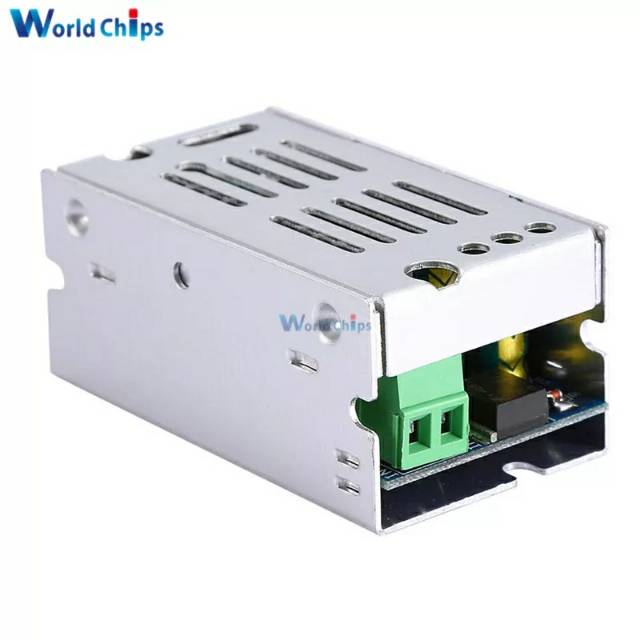

Aluminum housing Size: 70 x 38 x 31mm / 27.5"x15" x12"

Input voltage: 8-55V (limit 60V, please leave allowance)

Output voltage: 1-36V continuously adjustable (the default output 12V)

Output Current: Normal 10A , MAX15A

Output power: natural cooling ventilated long-term power 100W

To enhance heat dissipation up to 200W

Such as long working hours, please note left margin and make the heat rise

Operating temperature: -10 to +85 degrees

Operating frequency: 180KHz

Conversion efficiency: up to 94%

Overcurrent protection: Yes (the output current exceeds (15A) current maximum sample protection only)

Reverse polarity protection: (reverse does not burn)

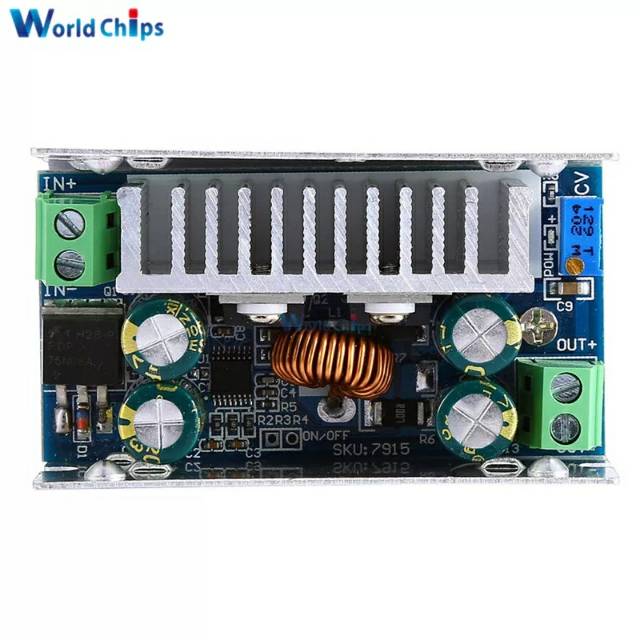

Wiring: high current terminals, solderless, IN + input is positive, IN- is the input negative, OUT + positive output, OUT- output negative

Gambar produk
