Step Down 12A 4.5-30V to 1.25-30V Bisa Diatur
Deskripsi singkat
Elektronik > Elektronik Lainnya > Step Down 12A 4.5-30V to 1.25-30V Bisa Diatur
- Pengiriman Ekspres
- Barang yang diperiksa
- Bayar di tempat berlaku
- Kualitas, Prestise
- Pengembalian produk
- Dukung pembuatan faktur
Produk Terkait

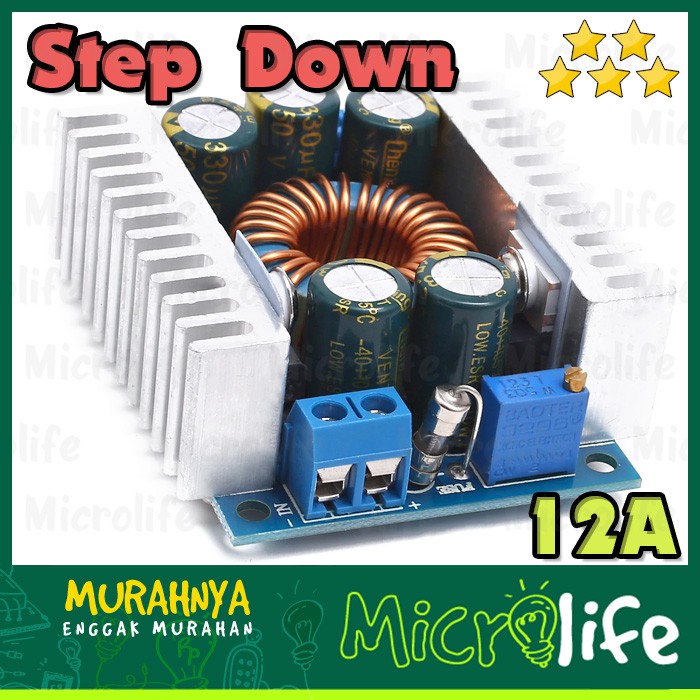

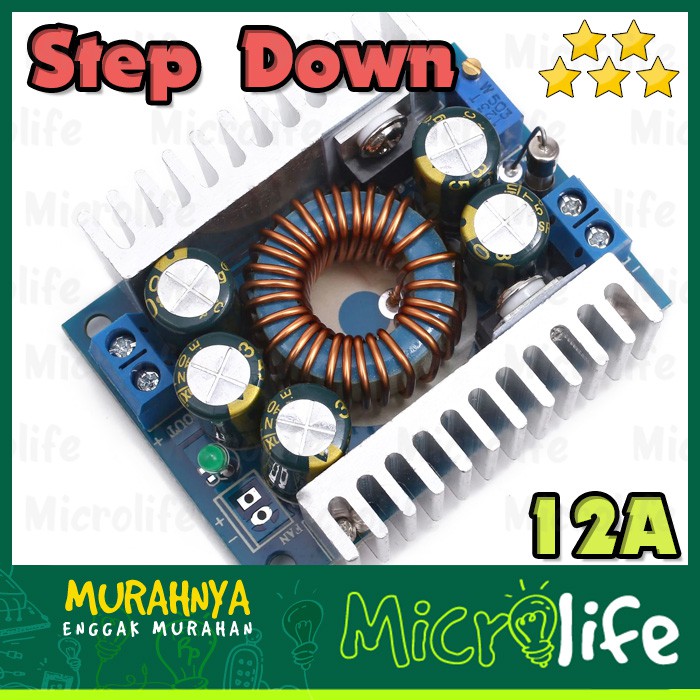

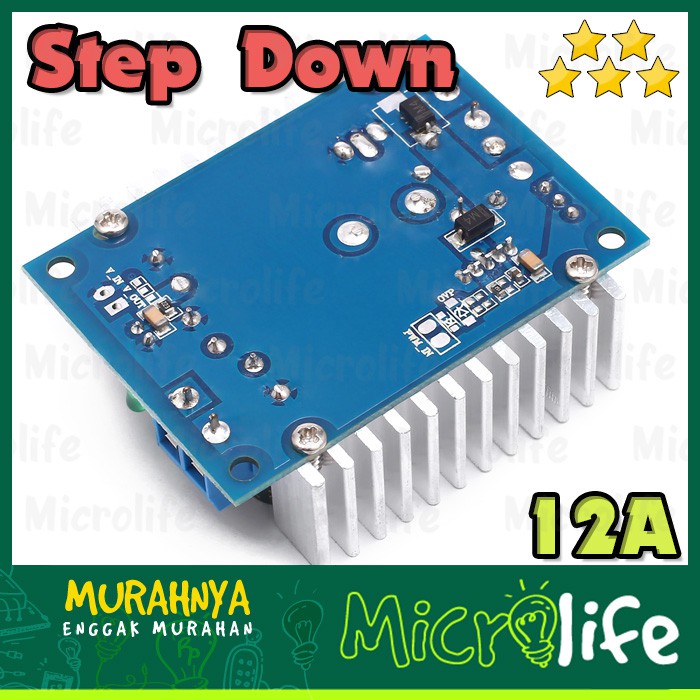

Detail Step Down 12A 4.5-30V to 1.25-30V Bisa Diatur
Modul ini dapat digunakan untuk menurunkan voltase input 4.5-30v ke voltase output 0.8-30v.Spesifikasi:
++ Input voltage: 4.5-30v
++ Output voltage: 1.25-30v bisa diatur
++ Output current: 0-12A 100W, Plus Heatsink 200W,
++ Working temperature: -40~+85 degrees
++ Working frequency: 300KHz
++ Conversion efficiency: up to 95% (efficiency related to input, output voltage, current, voltage difference)
++ Short circuit protection: Yes (limit current 14A)
++ Over temperature protection: Yes (automatically turn off the output after over temperature)
++ Input reverse connection protection: none
++ Ukuran: 60mmx51mmx22mm
++ Input 12V output 5V/10A, efficiency 81%
++ Input 12V output 5V/6A, efficiency 86%
++ Input 24V output 12V/8A, efficiency 91%
++ Input 24V output 19V/6A, efficiency 94%
Isi Paket :
1x Step Down 12A 4.5-30V to 1.25-30V
