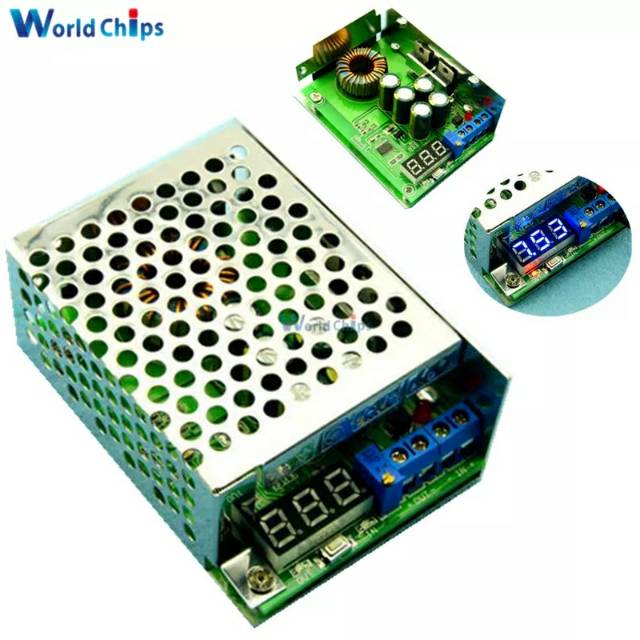

Step Down 10A DC3.5-30V Out 0.8-29V Power Converter LED Buck Step Down Power Module

Detail Step Down 10A DC3.5-30V Out 0.8-29V Power Converter LED Buck Step Down Power Module

Brand Name: diymore

Application: Computer

Supply Voltage: DC-DC 3.5-30V to 0.8-29V 5V 12V

Condition: New

Model Number: Step Down Power Supply

Type: Voltage Regulator

Package: TQFP

is_customized: Yes

Operating Temperature: standard

Dissipation Power: standard

·Dimensions: length x width x height = 8.5cm x 5.8cm x 3.

·1, input voltage: DC3.5 ~ 30V

·2, the output voltage: DC0.8 ~ 29V

·3, the output current: 10A (MAX)

·4, the conversion efficiency: 92% (24V switch 12V / 2A when measured)

·5, on-board voltage meter: displays the input voltage or output voltage, short press the button beneath the digital switch, the LED lights marked IN is the input voltage measurement, LED beacon of light measurement OUT is the output voltage.

·6, voltage display factory calibrated, without additional calibration.
