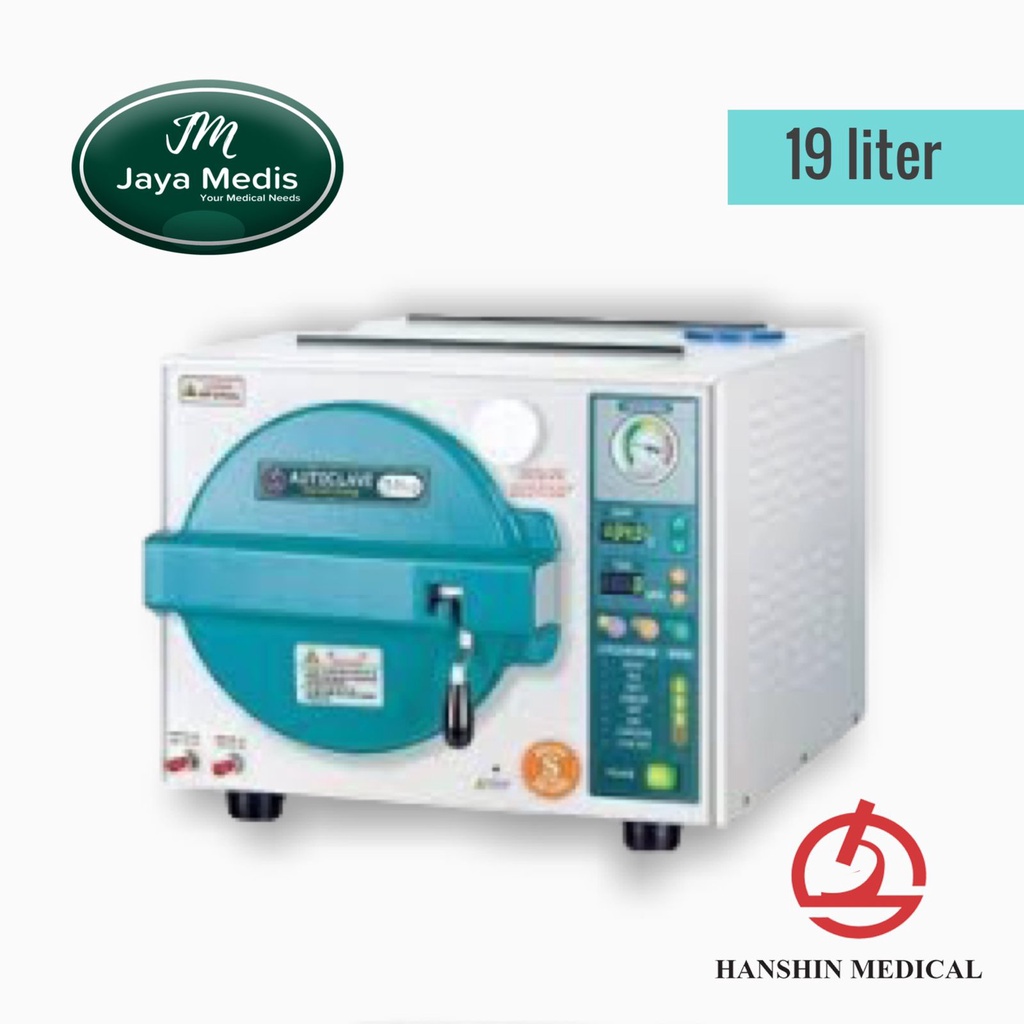

Steam Sterilizer Autoclave Hansin HS - 2519 VD 19 Liter

Detail Steam Sterilizer Autoclave Hansin HS - 2519 VD 19 Liter

Sterilisator/Autoclave untuk mensterilkan perangkat medis umum yang ekonomis dengan metode penghilangan udara secara gravitasi dan dilengkapi dengan sistem pengeringan vakum untuk mempercepat pengeringan alat medis.

Overall Dimension
W483 x D607 x H403 mm
W483 x D632 x H403 mm
W581 x D702x H485 mm

Chamber
Ø254 x L375 mm,
Vol: 19.5l , Material: STS 316L
W225 x D425 x H225 mm, Vol: 21.5l , Material: STS 316L
W300 x D450 x H300 mm, Vol: 40.5l , Material: STS 316L

Max. Working Pressure: 2.40bar, Min. Working Pressure: -1.00bar Max. Working Temperature: 138.0 , Test Pressure: 5.00bar

Reservoir
W238 x D117 x H233 mm, vol: 4.2l (full water level)

Tray
W184 x D340 x H18 mm, 4ea
W216 x D405 x H44 mm, 2ea
W291 x D432 x H44 mm, 2ea

Operating Temperature
121.0 ~ 135.0
Sterilizing Agent
Saturated vapor of max. 2.10bar pressure

Air Removal : Vacuum/Gravity

Vacuum Pump
Flow Rate: 20l /min
Flow Rate: 30l /min

Power Source : AC 230V, 50/60Hz
Power Consumption
1,600W
1,600W
2,000W
Controls
Microprocessor
Display
LED Display
Printer(Optional)
Exterior Type, Direct Thermal Printing, Roll Paper: W58 x Ø60 mm
Net Weight
40kg
55kg
77kg
Environment Conditions
* Altitudes up to 2,000 meters
* Temperature range of +5 to +40
* Maximum relative humidity of max. 80%
* Main supply voltage fluctuation of 10% of nominal
* Installation Category (Overvoltage Category) II, Pollution Degree 2
