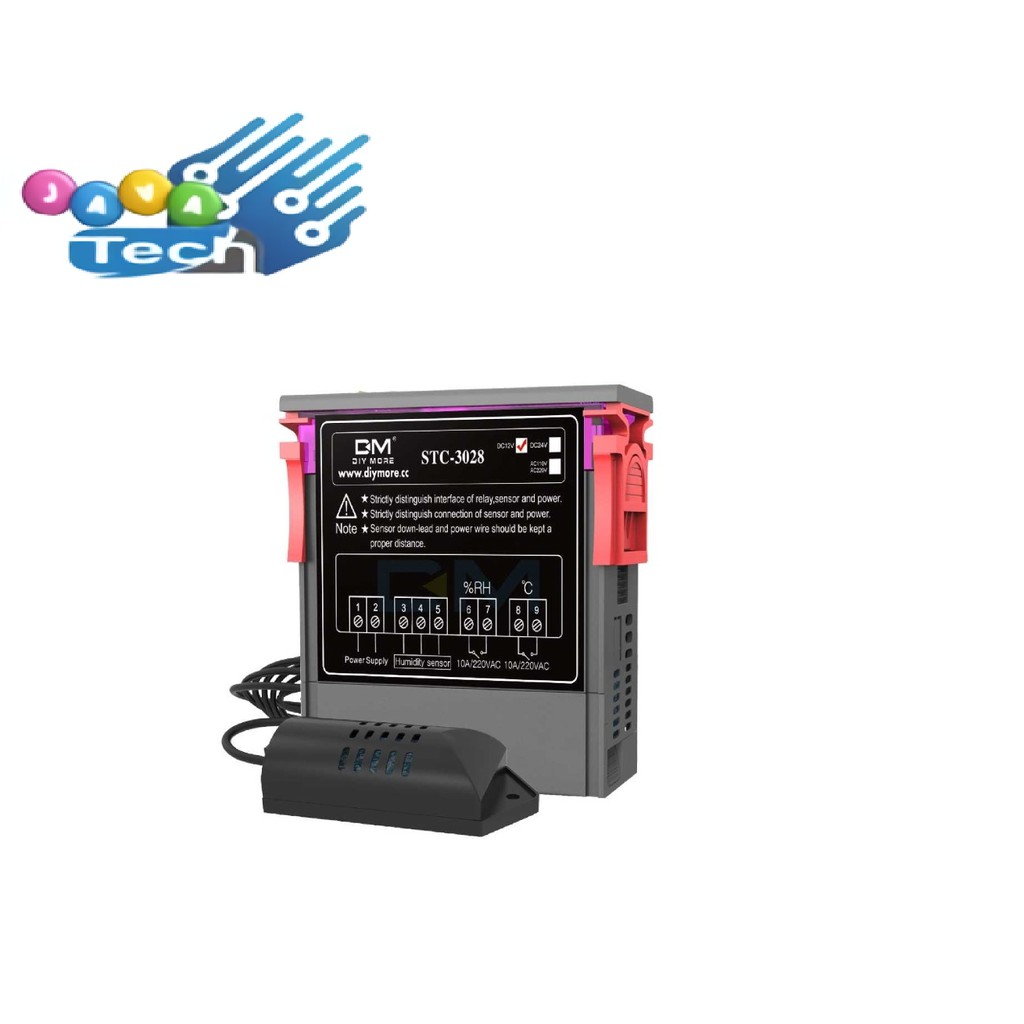

STC-3028 Themohygrostat DC 12V Temperature & Humidity Controller

Detail STC-3028 Themohygrostat DC 12V Temperature & Humidity Controller

Be able to control temperature and humidity at the same time.

Be able to connect with humidifier and dehumidifier equipment at the same time.

Be able to connect with refrigeration/ heating and humidifier/dehumidifier equipment at the same time.

Heating/Cooling function could be set separately for refrigeration and heating to protect temperature controller from violent change. Same as humidity Control.

Supporting Temp and Humidity Calibration

[Dual Display Window] Be able to display measured temperature/humidity and set temp/humidity at the same time



Specification:

Model: STC-3028

Input voltage: DC12V

Measuring temperature range: -20°～+80°

Measuring humidity range: 00%RH～+100%RH

Accuracy: ±1°, 0.1%RH

Relay output contact capacity: 10A/240VAC

Shell material: PC + ABS fireproof

Sensor length: 1m



Set startup temperature(humidity):
Press the "up" button once to display the starting temperature(humidity). Long press the "up" button for about 3 seconds,The required temperature(humidity) can be set by the up and down keys

Set stop temperature(humidity):
Press the "down"button once to display the stop temperature(humidity). Long press the button for about 3 seconds and the stop temperature(humidity) number flashes. The required temperature(humidity) can be set by the up and down keys

Temperature/humidity correction:

Press "up" and "down" button at the same time.



Package included:

1 X Temperature Humidity Controller
