STC-3028 Themohygrostat 220V AC Temperature & Humidity Controller

Detail STC-3028 Themohygrostat 220V AC Temperature & Humidity Controller

STC-3028 Themohygrostat 220V AC Temperature & Humidity Controller

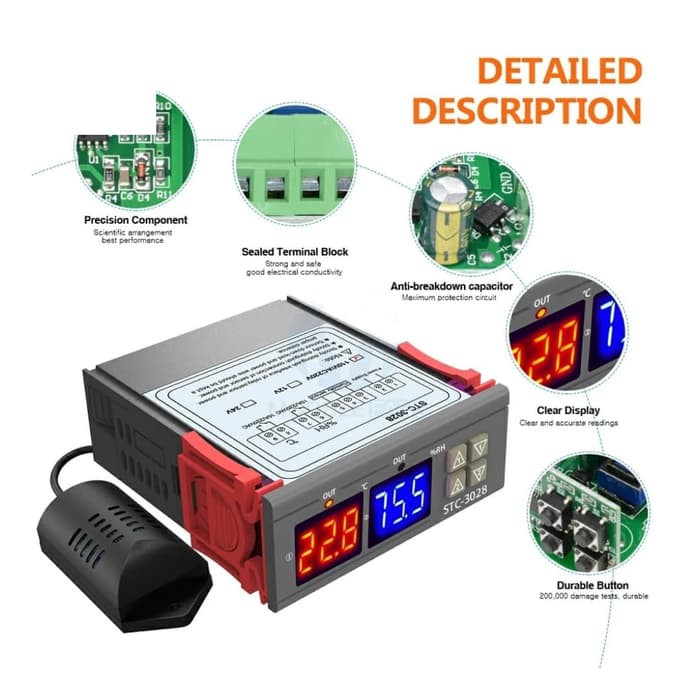

Feature:

Be able to control temperature and humidity at the same time.
Be able to connect with humidifier and dehumidifier equipment at the same time.

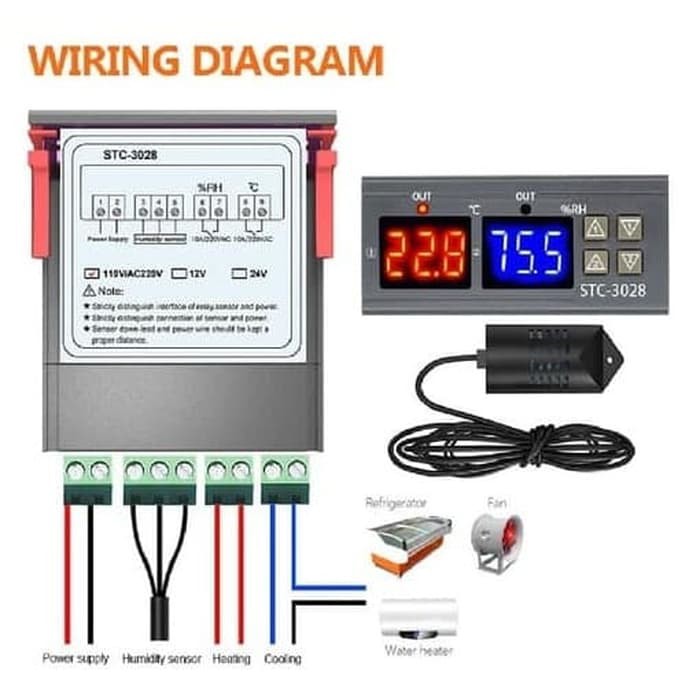

Be able to connect with refrigeration/ heating and humidifier/dehumidifier equipment at the same time.
Heating/Cooling function could be set separately for refrigeration and heating to protect temperature controller from violent change. Same as humidity Control.
Supporting Temp and Humidity Calibration
[Dual Display Window] Be able to display measured temperature/humidity and set temp/humidity at the same time

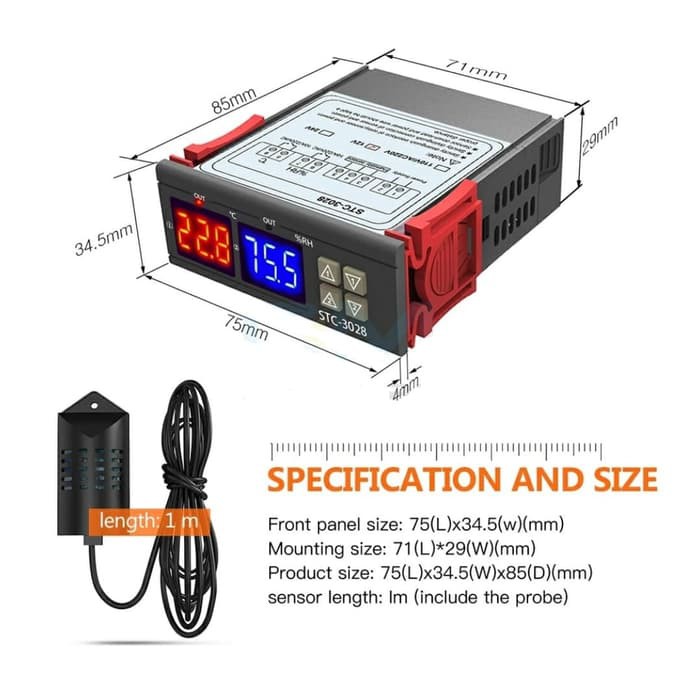

Specification:
Model: STC-3028
Input voltage: AC110~220V± 10%, DC24V, DC12V
Measuring temperature range: -20°～+80°
Measuring humidity range: 00%RH～+100%RH
Accuracy: ±1°, 0.1%RH

Relay output contact capacity: 10A/240VAC
Shell material: PC + ABS fireproof
Sensor length: 1m

Set startup temperature(humidity):
Press the "up" button once to display the starting temperature(humidity). Long press the "up" button for about 3 seconds,The required temperature(humidity) can be set by the up and down keys

Set stop temperature(humidity):
Press the "down"button once to display the stop temperature(humidity). Long press the button for about 3 seconds and the stop temperature(humidity) number flashes. The required temperature(humidity) can be set by the up and down keys

Temperature/humidity correction:
Press "up" and "down" button at the same time.

Package included:
1 X Temperature Humidity Controller

Gambar produk
