Detail STABILIZER ARAKAWA PDX 3 PHASE PDX180KVA

Setiap hari buka termasuk hari minggu/libur, silahkan di pesan barangnya dan kami akan mengirimkan barang pesanan anda secepat mungkin.

Mohon Tanyakan Stock terlebih dahulu sebelum Melakukan Order !!
Untuk menghindari Penolakan Order, Mohon Tanyakan Stock terlebih dahulu sebelum Melakukan Order !!

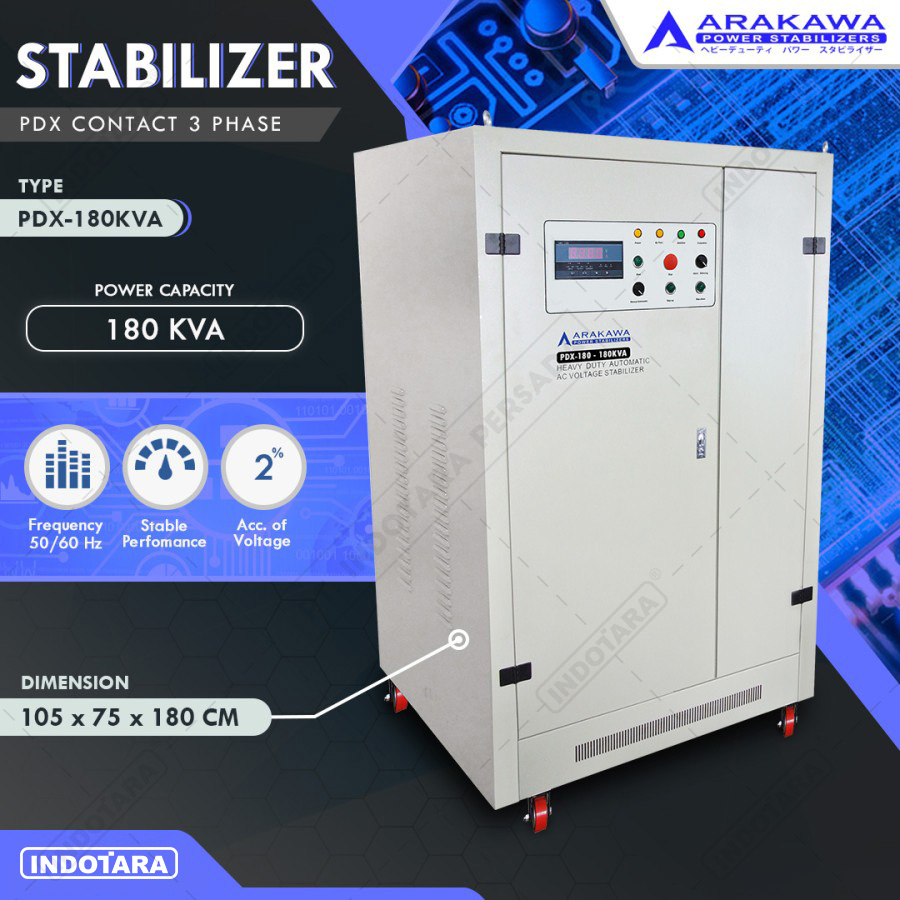

Arakawa Heavy Duty Servo 3 phase Automatic Voltage Regulator, Taiwan
Model : PDX-180 Contact
Power (KVA) : 180KVA
Rated current (A) : 273
Input (V) : 304-456 (standard ±20% for 3phase 380V)
Customized from 10% to 50% Voltage range
Output (V) : 380V – 3Phase
Weight (Kg) : 706
frequency : 50/60Hz
Voltage accuracy : ±(1-5)%
Efficiency : >96%
Response time : ≤500ms
Ambient temp : -15°C / +45°C
Humidity : ≤90%
Protection : IP20
Insulation strength : 2000V/1 min (input and output AC Voltage)
Dimensions (wxdxh) : 1050x850x1700mm ( without packing )
Cross sectional area of cables (mm²) : 3x95+1x35
Warranty : 5 years for spare part ( Exclude Carbon Brush )

Advantages :
1.Fast regulation, response time less than 1.5s.
2.Over and under voltage protective.
3.Fault protection, automatically switch to bypass or cut off.
4.Phase loss and phase sequence protection.
5.Highest compensation can reach ±50%.
6.High efficiency can reach more than 96%.
7.High quality purified power.
8.Safety with lightning-proof and wave-filter function, depresses surge

Harga Terbaik : Hubungi Sales

# Harga diatas sudah termasuk PPn
# Kami akan menerbitkan faktur pajak setelah transaksi
