ST180 4000 Counts Digital Current Clamp Meter AC Ohm NCV Multimeter Tester

Detail ST180 4000 Counts Digital Current Clamp Meter AC Ohm NCV Multimeter Tester

ST180 4000 Counts Smart Digital Current Clamp Meter DC AC Ammeter Voltage Voltmeter Ohmmeter Multimeter Resistance Ohm NCV Tester Electrician Tool
Feature:

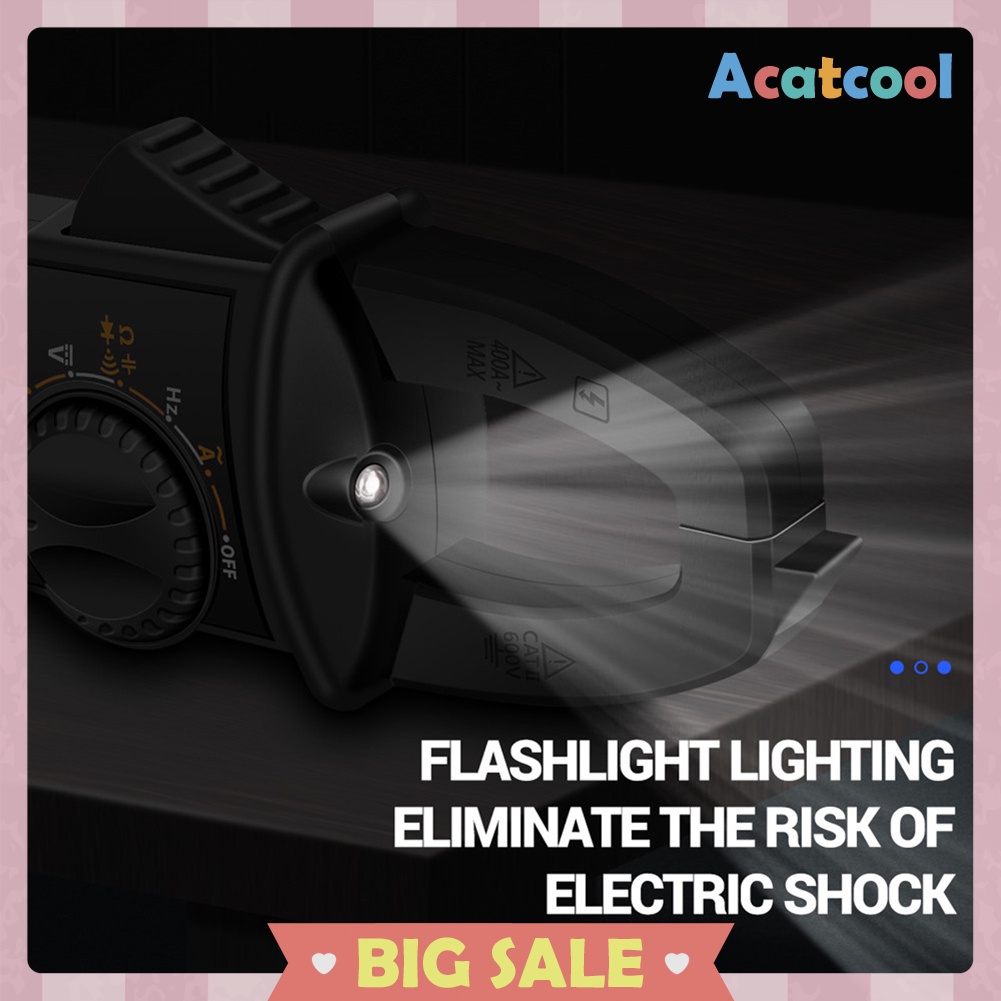

1. With flashlight function, it is convenient to find the line in the dim environment, and it can also be used as an emergency flashlight

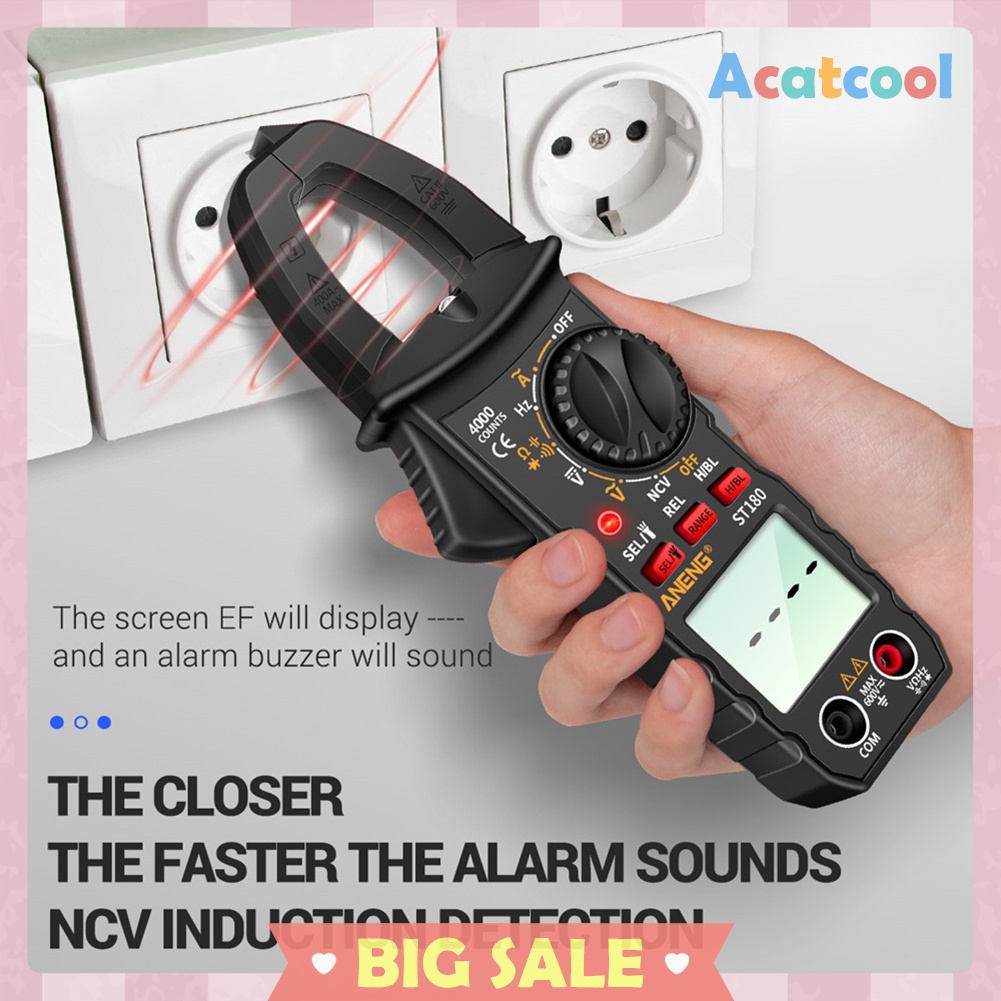

2. NCV non-contact induction, the closer the distance, the faster the alarm sound

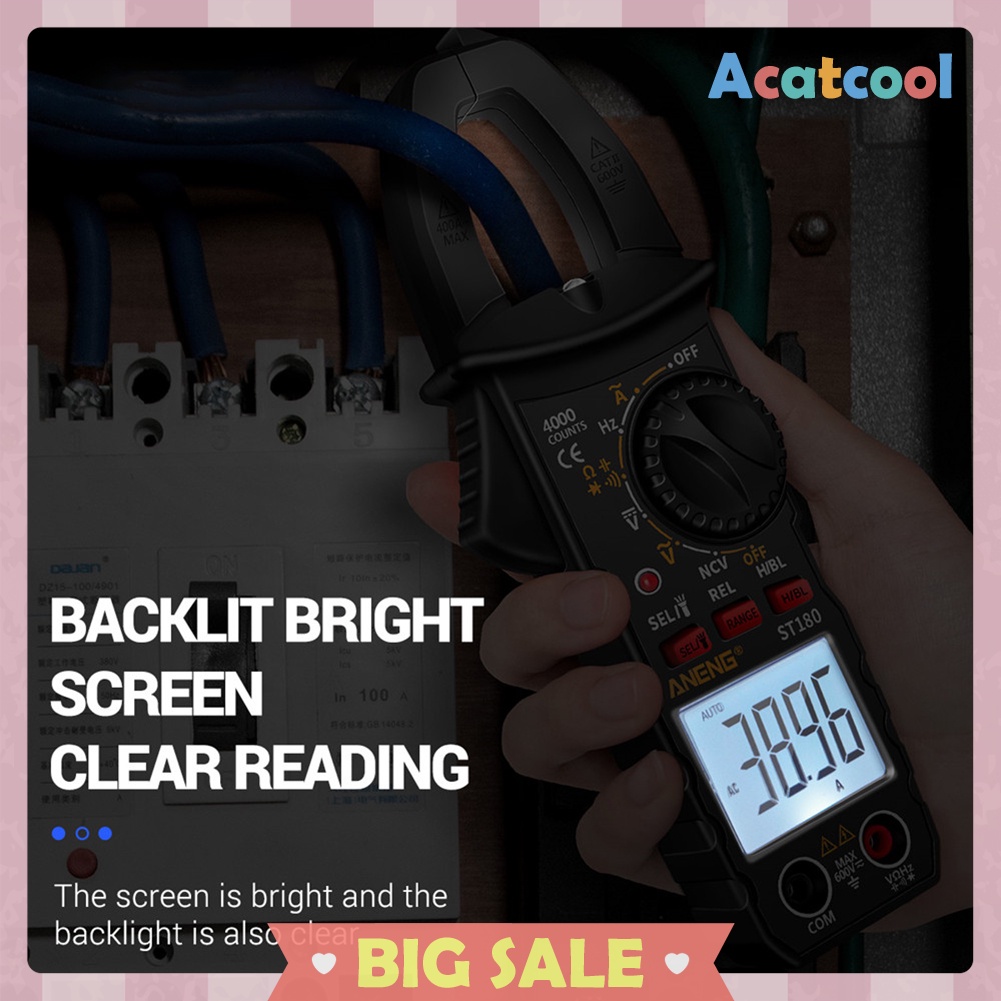

3. LCD backlit bright screen, clear numbers

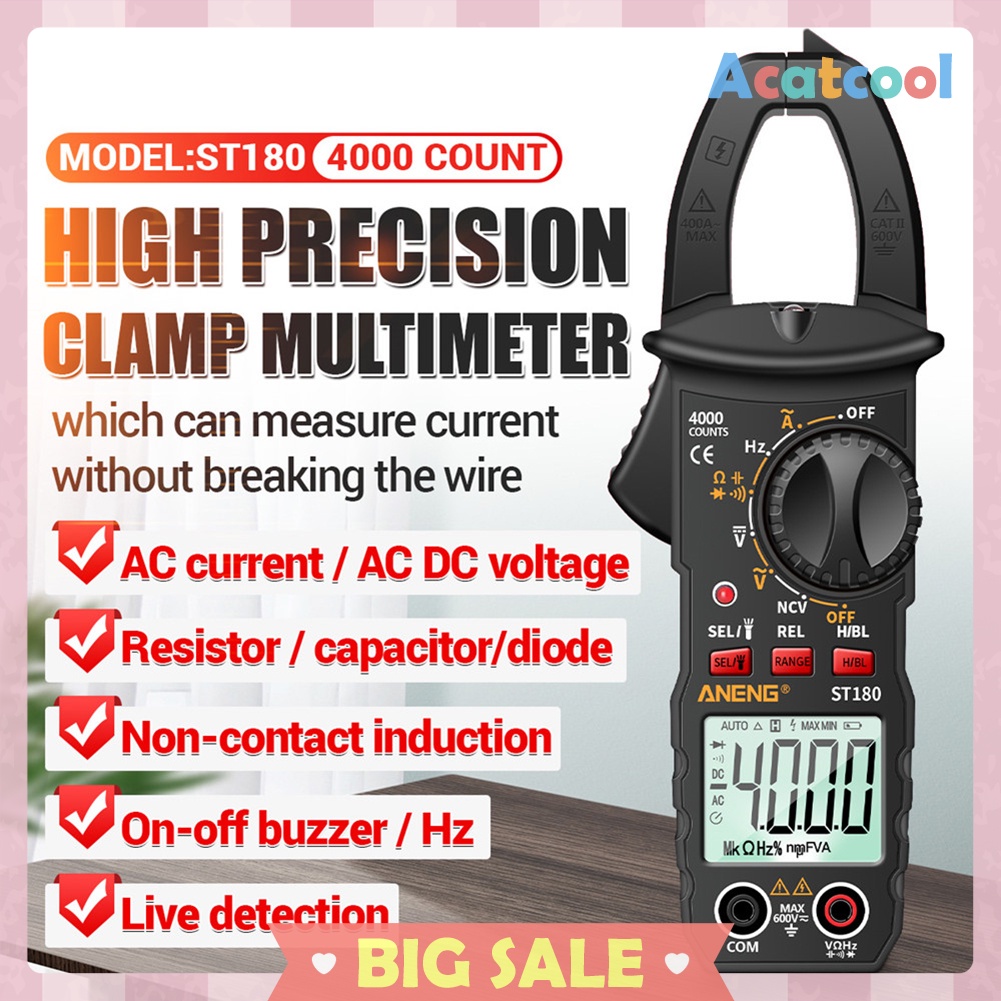

4. Measure voltage/current/resistance/capacitance, zero wire and live wire detection

Specification:
Model: ST180
Material: ABS shell
Product size: about 139.8x38x10.4mm/5.5x1.5x0.41in
Power supply: 2 X AAA batteries (not included)
Maximum display: 4000 counts
Diode: Yes
On-off beep: Yes
NCV non-contact sensing: Yes
Zero / live line of fire: Yes
Backlit bright screen: Yes
Data retention: Yes
Flashlight: Yes
Color: Black, Red, Yellow

                         Range            Resolution                   Accuracy
DC voltage      0-600V             1mV-1V                    ±(0.5%+5)
AC voltage      0-600V             1mV-1V                    ±(0.8%+5)
AC current      0-400A           0.01A-0.1mA             ±(1.5%+5)
Capacitance    0-4mF           0.001nF-0.001mF       ±(3.0%+5)
Resistance      0-40MΩ         0.1Ω-100Ω                 ±(0.8%+2)
Frequency      0-400Hz         0.01Hz-0.0001MHz    ±(0.1%+2)

Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-3cm measuring deviation due to manual measurement.


Included:

1 X Multimeter

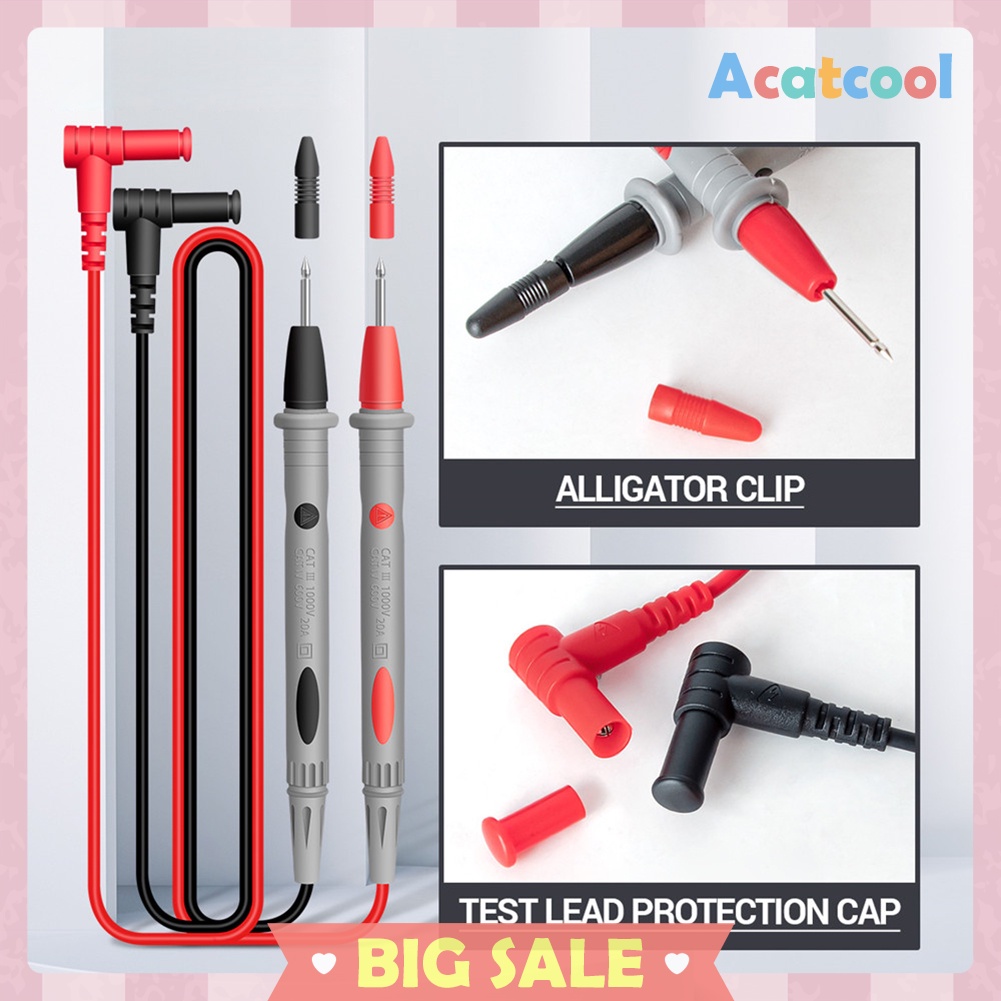

2 X Test Lines
1 X User Manual
