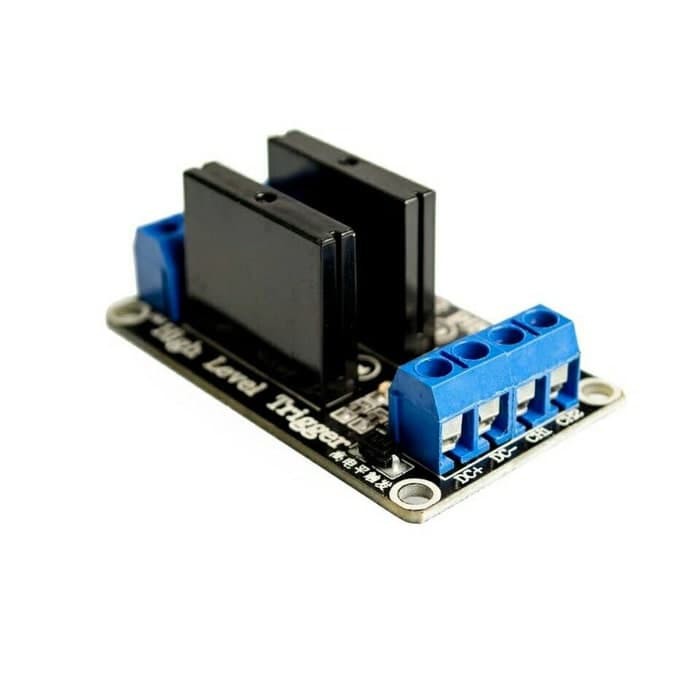

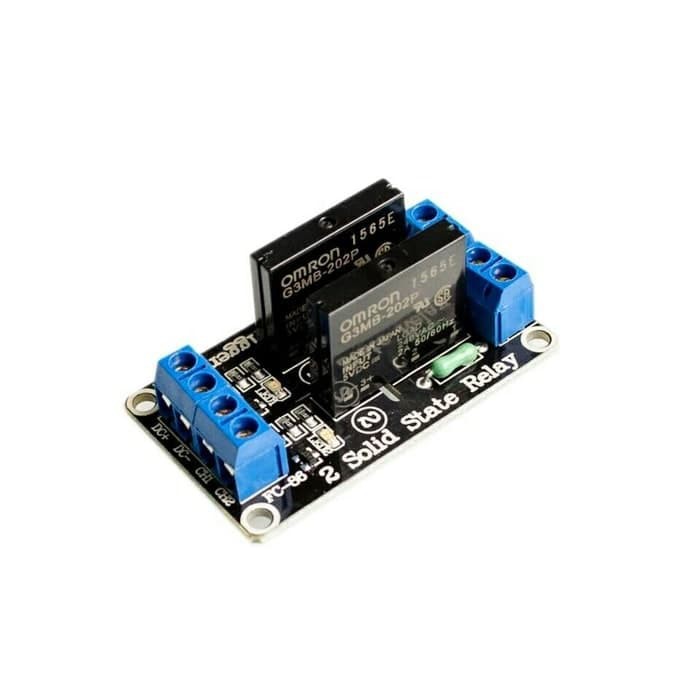

Detail SSR Solid State Relay Module 2 Channel 5V DC High Level For Arduino

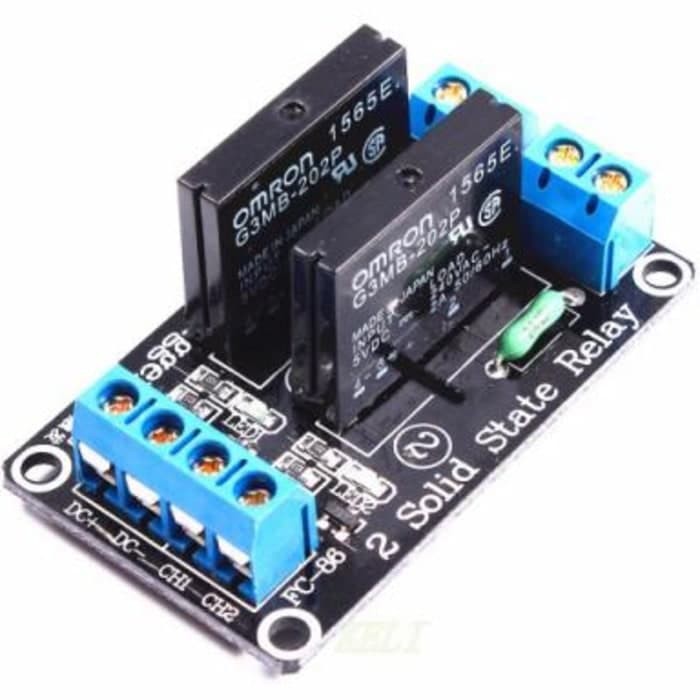

5V Omron solid state relay 240V 2A, output with resistive fuse 240V 2A

Description:
Size: 53*32*23mm/nput Power: 5V DC (160mA)
Input control signal voltage:
(0-2.5V state low relay OFF)
(3.3-5V state high relay ON)
Module interface:
Input section:
DC +: positive power supply (by relay voltage power supply)
DC-: connect power negative
CH: relay module signal to high level trigger effective
Voltage version static current working current trigger voltage trigger current
1 road 5V 0mA 12.5mA 3.3-5V 2mA
2 road 5V 0mA 22.5mA 3.3-5V 2mA

Isi Paket:
1 x Solid State Relay Module
