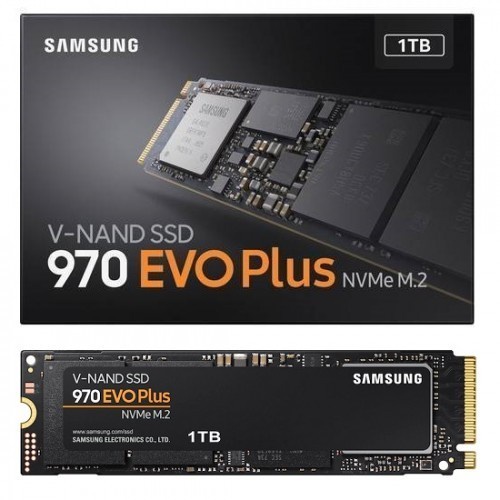

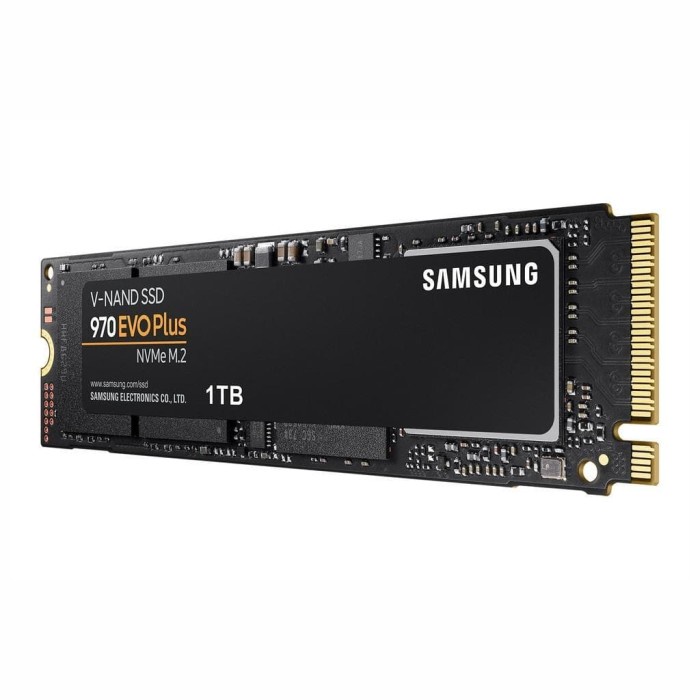

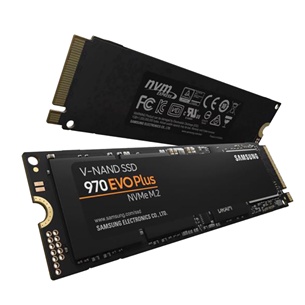

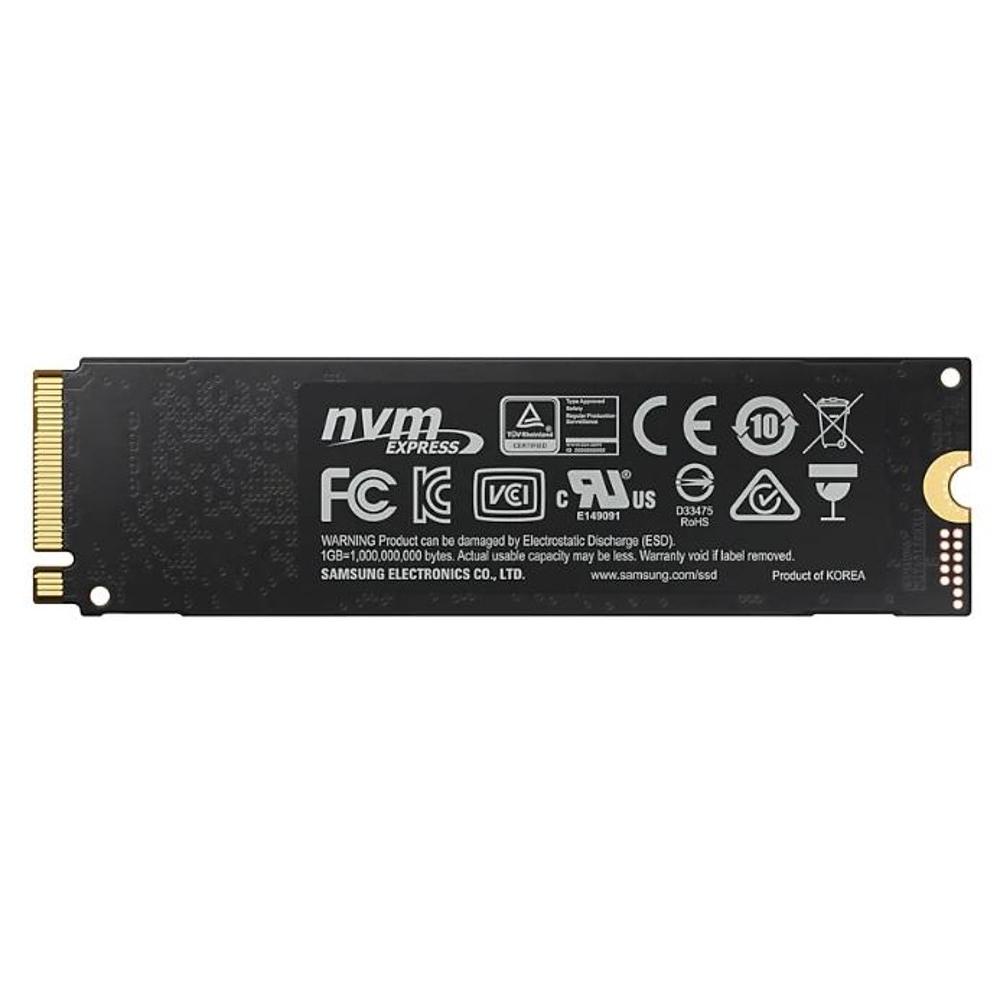

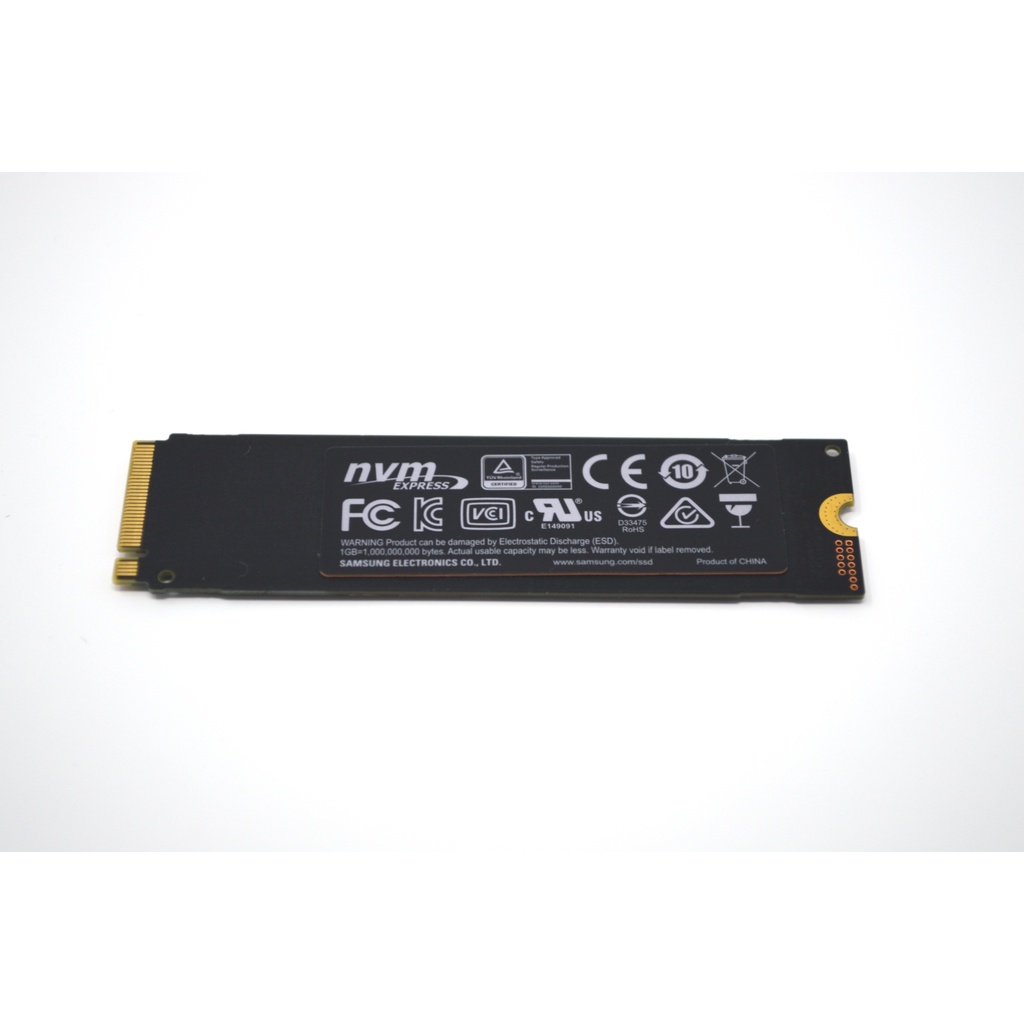

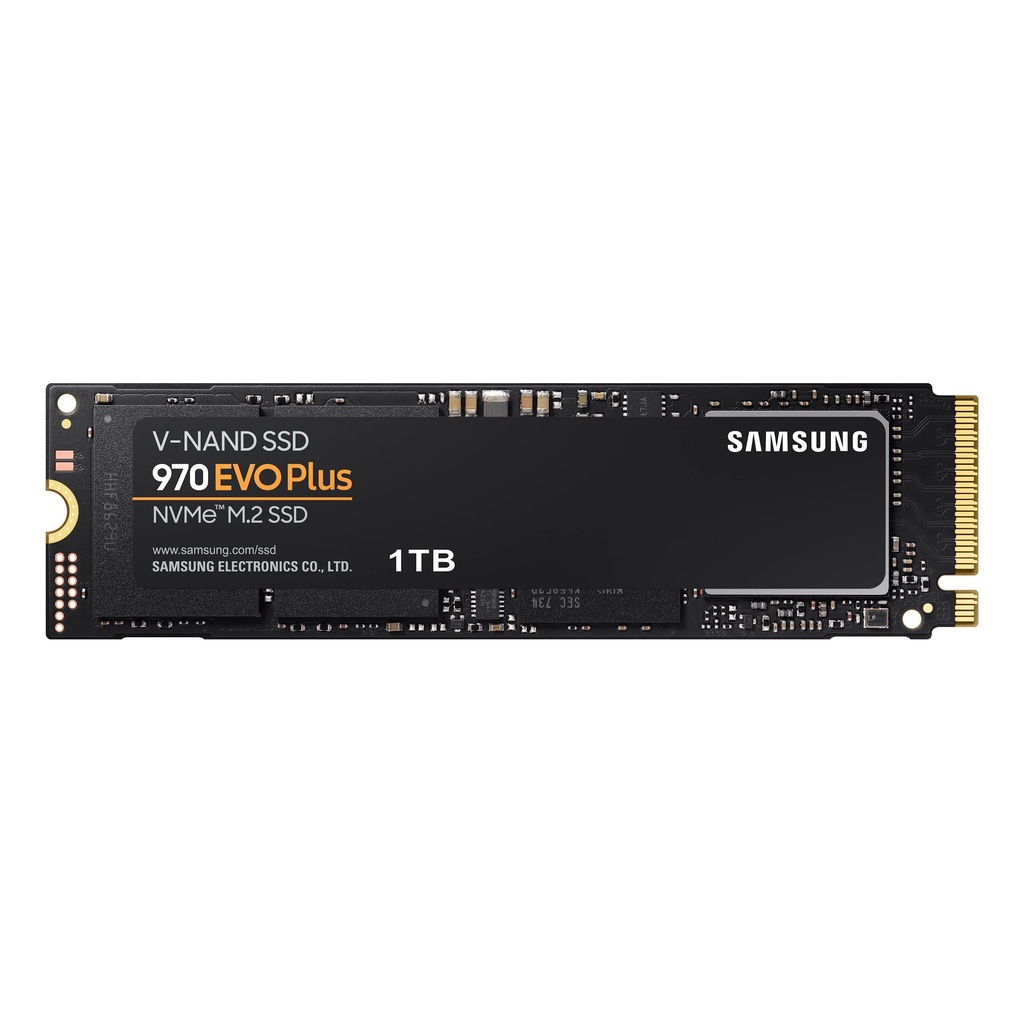

SSD Samsung 970 EVO Plus 500GB 1TB 2TB - SSD M.2 NVMe PCIe

Detail SSD Samsung 970 EVO Plus 500GB 1TB 2TB - SSD M.2 NVMe PCIe

Product Type : SSD
Series : 970 EVO Plus
Usage Application : Client PCs
Interface : PCIe Gen 3.0 x 4, NVMe 1.3
Consumer : Yes
Storage Capacity :
250GB / 500GB / 1TB / 2TB (1GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)
Key Features :
Sequential Read Speed : Up to 3,500 MB/s
Sequential Write Speed : Up to 2,300 MB/s (250GB), 3200 MB/s (500GB), 3500 MB/s ( 1TB / 2TB)
Random Read Speed
Random Read (4KB, QD32): Up to 250,000 IOPS(250GB), 480,000(500GB), 600,000(1TB), 620,000 (2TB); Random Read (4KB, QD1): Up to 17,000 IOPS (250GB), 19,000 ( 500GB/1TB/2TB)
Random Write Speed
Random Write (4KB, QD32): Up to 550,000 IOPS (250GB/500GB/1TB), 560,000 (2TB); Random Write (4KB, QD1): Up to 60,000 IOPS *
Controller : Samsung Phoenix Controller
NAND Flash : Samsung V-NAND 3-bit MLC
Cache Memory : Samsung 512MB Low Power DDR4 SDRAM
Trim Support : Supported
AES Encryption : AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)
S.M.A.R.T. Support :Supported
GC (Garbage Collection) : Auto Garbage Collection Algorithm
WWN Support : Not Supported
Device Sleep Mode Support : Yes
Temperature proof : Yes
NVMe : Yes
Gaming SSDs : Yes
General:
Average Power Consumption (system level) :
* Average: 5 W * Maximum: 8 W (Burst mode)
Power consumption (Idle) :
Max. 30 mW * Actual power consumption may vary depending on system hardware & configuration
Voltage : 3.3 V 5 % Allowable voltage
Reliability (MTBF) : 1.5 Million Hours Reliability (MTBF)
Environmental Specs:
Operating Temperature : 0 - 70 Operating Temperature
Shock : 1,500 G & 0.5 ms (Half sine)
Form Factor :
Product : M.2 (2280)
Dimensions (W x H x D) : 80.15 x 22.15 x 2.38 (mm)
Weight :Max 8.0 g Weight
Management SW : Magician Software for SSD management
Warranty Product :
5-Year Limited
